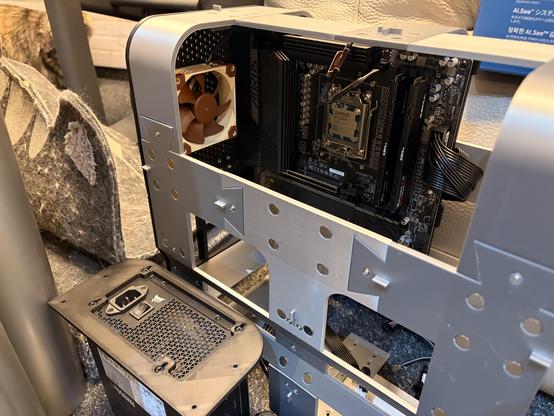

HolgerLivingroom #PC got a little revamp - a self printed colourful case. 😎 Frame, Motherboard tray and backplate are printed in ASA and ABS, shell out of PLA. #3dprinted #3dprinting #bambulab #gamingpc
If somebody wants to print this one as well: Uses roughly 2,5kg PLA and 1,5kg ASA/ABS. You'l also need 2x 120mm Fans, 1x 80mm Fan. ATX power supplies fit, mATX boards as well (haven't tried ATX board). CPU cooler with 155mm fits as well. You'll also need tons of M3 screews and Nuts + 10x2mm Magnets, USB Cable for Front USB and an Arcade Button 30mm as the power switch. More info on the Designers #Makeyo Homepage. https://makeyo.fr/mk01-matx-mini-itx-3d-print-pc-case-model/
Me I just needed that USB Cable, Magnets and Arcade button + 80mm Fan, the rest I already had in my little workshop. Re-Used BeQuiet Silent Wings 4 Fans for CPU Cooler (BeQuiet PureRock 3LX) and front fans and got a new 80mm Noctua fan as exhaust. I'd suggest to re-do the MB tray as the current solution with the tray as four interconnected parts + 4 printed stand-offs towards the frame doesn't look all to sturdy to me, but depends on weight of CPU/Cooer/GPU combo.
