Alice Averlong🏳️⚧️So I'm hacking on Mahjongg VGA by Ron Balewski.
Like you do.
Like you do.
This isn't to be confused with Mah Jongg by Nels Anderson.
I'm also hacking that one, but not in THIS thread.

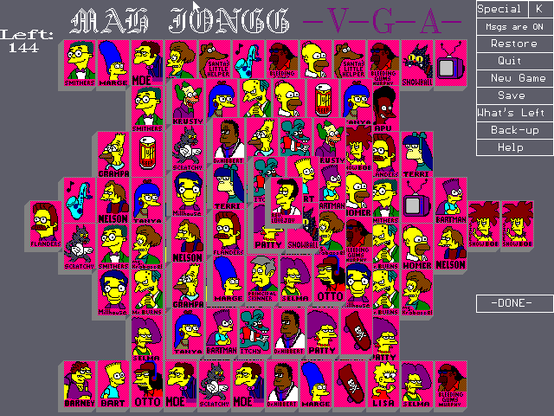

The cool thing about this game is that there's a ton of user-made tilesets for it that have been preserved on old BBS-shovelware CDs.
And it's all this lovely amateur pixelart so naturally I gotta collect it.
And it's all this lovely amateur pixelart so naturally I gotta collect it.
so I'm building a tool to convert the tile files to PNGs.
The files are TIS files, which are made of:
1. one metadata string
2. 44 TIL files.
3. PAL.CFG
There's PAKTIL.COM and UNPAKTIL.COM to separate out/rejoin the TIL files. So I gotta figure out how TIL files work.
it turns out they're a 6-byte header and then they're a 48x60 image, but they're vertically planar: The first row is the least significant bit, fourth row is the most significant bit, and so on.
This indexes into the palette, which is stored in PAL.CFG
The TIL files are 48x60, but the tiles are not. They're 44x60. The extra 4 columns of pixels are ignored
PAL.CFG is simple: It's a 16-line text file, each line containing 3 numbers separated by spaces.
As is common for VGA-only software, it's 6-bit VGA, so the RGB is 0-63 instead of 0-255
the DRAFTSMN.DOC file explains some of the special palette entries:
0 is used for the screen background
1 is used for tile backgrounds
7 is used for the tile edges
11 is used for numbers
15 is used for menus
so really you get 11 colors.

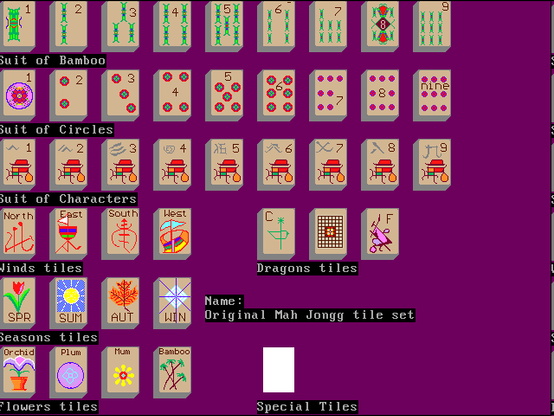

some very ugly python code using strings rather than some smart bitshifting code, but it worked first time.
now I just need to wrap this up into a script that unpacks each file one by one, then converts each TIL, then merges them together into a spritesheet
mass-processing, I found a corrupted one! This is supposed to be "People on TV #2", but it crashes VIEWTILE (and my converter). Works in MJVGA31, but it does crash when you exit.
I need to write a simple font engine. TIME ME
I made the foolish mistake that all tilesets would define a remotely sensible palette
that was a mistake. several of them do black on black text
I wasted time make it match the correct background/foreground color and it's not even visible half the time!

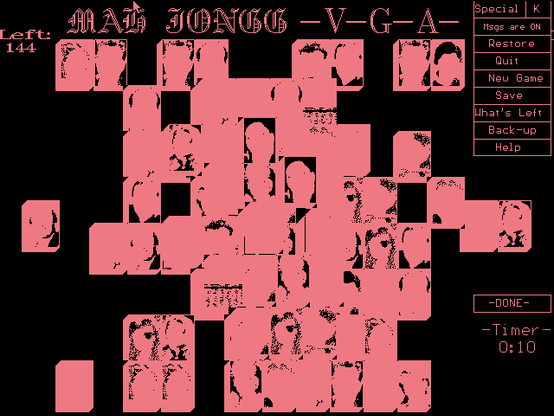

who thought this tileset was a good idea? because they were very wrong.
it's tiled "Carol, Cheryl and Christie" and I have no idea who those women are.
that's Carol Alt, Cheryl Tiegs, and Christie Brinkley.
thanks to @[email protected]
I put it on the internet archive but it seems to be unplayably laggy in-browser:
it seems playable on chrome, but firefox barely lets you move the mouse where. that's a shame
much more playable (at least on my slow firefox) version here, by using the windows 3.1 version:
https://archive.org/details/MJWINSOUP#
https://archive.org/details/MJWINSOUP#
this project has officially reached ghidra-o-clock
_putpixel? what are you doing with putpixel, game?
oh, no.
Ray [REDACTED]address 3000:4c2e in DOSBox maps to 2C03:0E2E in ghidra.
> LOOK
There is a sign on the wall
> LOOK SIGN
The sign reads "It has been zero days since x86's segmented addressing has made foone's day harder"
The sign has no way to increase the number: it's a static unchanging piece of paper.
(I'll make a real version once I have a chance to install print studio onto my PC with a dot matrix printer)
oh good, I just missed how putimage/getimage was being compiled.
It's at least using BGI's slow blitter, rather than manually plotting every pixel through BGI's slow pixelplotter.
this set of FIDBs helps with that, btw. Real handy if you regularly reverse engineer 16-bit dos applications.
ugh, with a 640x480x16 fucking-planar mode, I can't just easily do a memdumpbin a000:0 10000 to get a copy of the current screen's VRAM
(I only get one of the planes)
this game seems to be spending most of its time drawing to an offscreen buffer
So, the way it handles you removing a tile: it draws a subset of the current puzzle on an offscreen buffer, tile by tile, then it blits that over the screen.

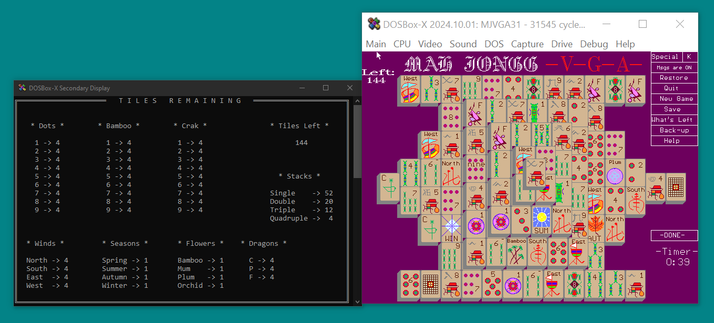

Fun fact: This game from 1991 supports dual monitors.
The PC didn't usually support this until way later, but you COULD install a monochrome card alongside a regular VGA display, and use the monochrome card simultaneously. It was mainly used by programmers, running their debugger/IDE on the secondary monitor, but a few games supported it for things like this.
I'd tried to use this earlier and couldn't get it to work, but reading the changelog I discovered an infuriating change:
It used to be that you had to use the D command line argument to disable monochrome support (it can corrupt memory, for deeply stupid DOS reasons), but then the author inverted the meaning of the argument: it now ENABLES monochrome support!
It used to be that you had to use the D command line argument to disable monochrome support (it can corrupt memory, for deeply stupid DOS reasons), but then the author inverted the meaning of the argument: it now ENABLES monochrome support!
The dumb reason is that DOS was so starved for memory that one trick that was actually used was to get an extra 8k (I think? My math may be off, it's 2am) for TSRs by using storing them in the upper memory block reserved for the monochrome video card framebuffer.
Which works fine as long as you don't try to use that memory as a framebuffer, which usually doesn't happen if you have a VGA card.
A game blindly drawing to it will draw into the ram of a device driver and stuff will break, hard.
uint __cdecl16far FUN_26f4_0672(int param_1)
{
uint uVar1;
do {
uVar1 = _rand();
} while (param_1 < (int)(uVar1 & 0xff));
return uVar1 & 0xff;
}
I KNOW PROGRAMMERS WHO USE MODULO AND THEY'RE ALL COWARDS
I found another place in the code where it does this.
I'm scared.
for (int i = 0; i < 10; i++) {
local_8 = _rand();
}
ahh, make sure your random numbers are properly seasoned, a good plan.
I haven't fully reversed this function but I think it is bubble sorting the tilesets.
no wonder it was so slow when I had 372 of them in the directory
I found where it calls strcmp() before throwing an invalid password error, paused in the debugger. The password is PASSWORD.
and looking in the (hidden!) MJVGA3.HOF file, the first 8 bytes are the following:
AF BE AC AC A8 B0 AD BB
which is "PASSWORD" XOR'd with FF
the manual:
When you first start EDITHOF, you'll be asked for a password. When
MJVGA creates MJVGA.HOF, the default password is PASSWORD (in upper
case). You can, of course, change this password to your own. More on
that shortly.
