FroyokSo Ombre development enters its third year this month, so let's start a new thread to track the progress !
I spent the past few days reworking my Depth of Field, which started off the GPU Zen method and then evolved a bit.
The part I'm currently trying to figure out is how to make the effect "scale-up", aka resolution independent.
Since the kernel is computed on the fly from a function, I should be able to find a formula to adjust it based on a resolution reference (so via a ratio or something). š¤
Since the kernel is computed on the fly from a function, I should be able to find a formula to adjust it based on a resolution reference (so via a ratio or something). š¤
My bokeh pass shader on Linux has a little issue it seems. For some reason it result in my pass taking 0.7ms, but if I increase the number of samples it actually goes down !
Switching to Vulkan or another shader compiler fix the problem. That was a fun one to investigate. :p
Switching to Vulkan or another shader compiler fix the problem. That was a fun one to investigate. :p
While trying some different bokeh radius, I thought of scaling up/down the render targets resolution and it worked without changing anything... this means I could have dynamic resolution scaling !
Here is 1080p x 2, aka 4K.
That's basically SSAA(2x) ? :D
Still hitting 80 FPS, but the post-process stack and shadow volumes are getting quite expensive at that resolution.
That's basically SSAA(2x) ? :D
Still hitting 80 FPS, but the post-process stack and shadow volumes are getting quite expensive at that resolution.
(Some stuff is broken obviously, like the tiny and wrongly placed viewport axis.)
I made an in-editor tweak to change the resolution, this way I could try out different bokeh sizes and sample count.
That made it easier to figure out how to make the bokeh stable across different resolutions. (My bloom isn't it however, so I will have to look into it.)
So the past few weeks I have been working on my refraction implementation and I'm finally starting to get some good results. I also added absorption which is going to be nice for liquids and colored glass.
I'm struggling with a specific point however. I have read that glass IOR should be around 1.5 for example, but when I use such value then I get this kind of double layering:
I tried looking around, to see if I was missing some notion, but even with a simple shadertoy I get the same result: https://www.shadertoy.com/view/ttBBWz
Same with this one, IOR of 1.5 gives the same warping/duplicated result: https://www.shadertoy.com/view/4lB3D1
So it was juts a silly bug, I had the IOR for the Material and the Air swapped around, so I had the wrong value. š
Alright, with that last new feature in I backed the project up and I can now increment the engine version. That's a good milestone. :)
So initially I was thinking of jumping onto Steam Audio as the next topic, but recent discussions are now tempting me more to go into Global illumination instead. š
Not sure which method I want to dive into yet. I have been gathering information about different methods (Light Propagation Volume, Distance Field, Voxels) but I'm still hesitating on which one would fit best my needs.
DDGI is another potential solution, but building and updating a BVH is not necessarily something I would like to do. š¤
After spending quite a bit of time digging into GI methods I decided to implement Voxel Cone Tracing.
Now the challenge I'm facing is about how to voxelize the scene.
Now the challenge I'm facing is about how to voxelize the scene.
One common approach is to exploit the GPU rasterizer to store directly into the voxels the position and colors via the fragment shader execution for each triangles of a mesh.
The framework I use doesn't support it unfortunately.
The framework I use doesn't support it unfortunately.
So two alternative are possible: slice rendering (re-render the scene with small near/far for each voxel slice) or compute based rasterizing.
Slices on paper look expensive, because you have to re-render the same meshes for each voxel along an axis, then do that 3 times for each world axis (to ensure you don't miss face aligned to an axis).
I read about tricks based on instanced rendering and all, but that still seem a bit overkill because while looking around I found an interesting paper.
The "Optimizing Surface Voxelization for Triangular Meshes with Equidistant Scanlines and Gap Detection" paper !
It's not directly compute raster which is nice, and the performance noted look promising.
https://onlinelibrary.wiley.com/doi/full/10.1111/cgf.15195
It's not directly compute raster which is nice, and the performance noted look promising.
https://onlinelibrary.wiley.com/doi/full/10.1111/cgf.15195
So I started doing a CPU based implementation for now (because that's much easier to debug than a compute shader). Pretty excited to have voxels soon !
(Younger me would have never guessed I would have been reading research papers in the future and try to implement them. It's the second time it happens even !)
I turned away from that paper in the end. It's missing too many bits to make it working and I felt like I would end-up rewriting the algorithm myself instead.
So instead I went looking into slice rendering. While not optimal I can at least use this to move forward and focus on the steps that are just after.
What I do is render a line of voxels (a slice of the 3D volume) as a regular pass into a 2D texture with a small near/far clip. Then I copy that into the volume via a compute shader.
That's quite a lot of drawcalls, even with a small list of meshes, but it's a start.
I added some quick debug drawing (by using 2D quad to render each slice of the volume) to visualize one axis.
I added some quick debug drawing (by using 2D quad to render each slice of the volume) to visualize one axis.
You can see that the debug draw of the volume is shifted from the soruce mesh, that's actually a bug. This offset seems to be because of my view matrix made with my look at.
I investigated but haven't found the exact reason yet. However that made me notice that a cross product (the up vector) in my LookAt function was inverted. Fixing it broke the renderer of course... š¤Ŗ
I had to change once again that damn line in my projection matrix function.
I had to change once again that damn line in my projection matrix function.
Didn't make an update in a while.
Well for starter, I decided to shelve voxel rendering and the GI topic for now. That wasn't working for me and I hit too many snags to stay motivated about it.
So I switched instead of integrating Steam Audio.
The first step only took a day or two, which was about replicating the example from the documentation to process a sound.
I got a nice duck quack at startup getting panned. :)
(First quack is original, second is after processing.)
That was on Feb 10. Today I got attenuation working, but under the hood things are very different.
I don't just load the sound and process it, instead I stream a portion and then merge it into a main stream.
I have to buffer audio chunks myself but it allows dynamic updates while a sound is playing.
I don't just load the sound and process it, instead I stream a portion and then merge it into a main stream.
I have to buffer audio chunks myself but it allows dynamic updates while a sound is playing.
You can hear a slight delay when the camera quickly zoom in near the sound origin: that's the trade-off between fast updates and audio chunk buffering.
It's still quite WIP, so maybe there is a way to get a better result.
It's still quite WIP, so maybe there is a way to get a better result.
Right now the processing is still happening on the main thread (there is no threading at all in Ombre so far).
To be able to get occlusion (and maybe other effects) working I will have to move audio into a separate thread. Maybe then I will be able to adjust the delay.
To be able to get occlusion (and maybe other effects) working I will have to move audio into a separate thread. Maybe then I will be able to adjust the delay.
I'm a bit unhappy this took a month to figure out. I ended-up again in one of those "can't code if I can't figure out what to do" moments. Twice in a row because of voxel stuff, which hit quite a bit my motivation.
My main struggle with the audio stuff, is that you are supposed to just buffer audio chunks and let the hardware read it.
That wasn't obvious, and I struggled for a while to get that information. Trying to understand how you are supposed to integrate deltatime in all of this wasted a lot of my time.
That wasn't obvious, and I struggled for a while to get that information. Trying to understand how you are supposed to integrate deltatime in all of this wasted a lot of my time.
I still haven't figured out all the answers unfortunately.
While streaming simple sounds and applying specific effects like attenuation is easy, I still don't know how to handle effects that have long tails (like reverb), especially when looping while still integrating dynamic updates.
While streaming simple sounds and applying specific effects like attenuation is easy, I still don't know how to handle effects that have long tails (like reverb), especially when looping while still integrating dynamic updates.
I don't know if it's because I don't have the right keywords, or if it because search engines are really awful there days, but I haven't found a good answer about this online so far.
Some progress on Steam Audio integration: I have now attenuation, air absorption and binaural effect integrated.
Results are starting to get pretty cool ! :)
(Sound ON for the demo !)
It took more time than that I would have liked, but the audio processing is now in its own thread.
Main benefits is that latency is basically gone.
Main benefits is that latency is basically gone.
Latency existed in a first place because of the main thread sleep when it was done doing it work (to avoid consuming the CPU for nothing).
Now the audio thread can work as needed without stalling.
Now the audio thread can work as needed without stalling.
That means I can also reduce the framerate without impacting the audio for the user. (I reduce framerate to 5 FPS when the engine is out of focus.)
It took some time to convert into a thread because I had to completely rework the way I do my updates.
Now it is based on marking entities as dirty and sending updates via an event/message system.
Now it is based on marking entities as dirty and sending updates via an event/message system.
Two weeks passed by already, dang !
Most of the work the past few days has been on adding support for occlusion. So that required uploading the meshes to Steam Audio BVH and running a simulation to raytrace audio sources.
Most of the work the past few days has been on adding support for occlusion. So that required uploading the meshes to Steam Audio BVH and running a simulation to raytrace audio sources.
It has actually been quite straightforward and I didn't hit any real blockers, I was just slow to get started I guess. I feel like 50% of the work happened yesterday during a big refactor (which took the whole day). š
End result is that I now have occlusion working on my audio sources !
It gets evaluated with several samples so that sounds fade in/out nicely.
It gets evaluated with several samples so that sounds fade in/out nicely.
There is still a lot of work to do, especially for optimizing the process and ignoring sounds that wouldn't be relevant. Right now I took shortcuts to get something working. But the code is in a good shape ready for future improvements !
I think I'm gonna take a break on audio however. There are some optimization I thought about regarding my shadow volume compute shader pass that I would like to try out.
A few updates ! š
I did try out a few times to optimize my shadow volume compute pass. The idea was maybe I could merge the atomicAdd calls, emitting only one total instead of one per new triangle. In practice every try, even with shared memory, were slower.
I did try out a few times to optimize my shadow volume compute pass. The idea was maybe I could merge the atomicAdd calls, emitting only one total instead of one per new triangle. In practice every try, even with shared memory, were slower.

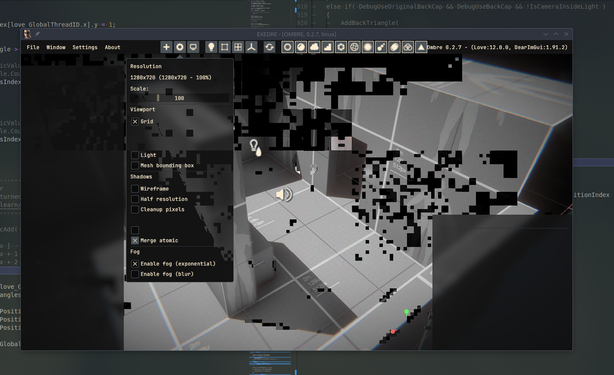

I got some "fun" glitches out of it at least. First time it crashes the system, the other times it was able to recover fortunately.
(Turns out I writing data into an SSBO but out of bounds).
(Turns out I writing data into an SSBO but out of bounds).
I went back to do more Steam Audio after that. This time to plug in the transmission property, which allows sound to be go through objects (instead of just being fully occluded).
After that I started looking into handling sound reflection/reverb, but it has mostly been about hooking Steam Audio systems for it so far. I'm still struggling to figure out the right way to make it work.
Simulating one sound, by throwing a bunch of rays at it, can actually eat up CPU time quite fast (went up as high as 20 ms !). So I will definitely need to move that into its own thread too.
So I put that stuff on the back for the moment. I needed a creative break. So I started working on finally implementing a translation manipulator in my editor !

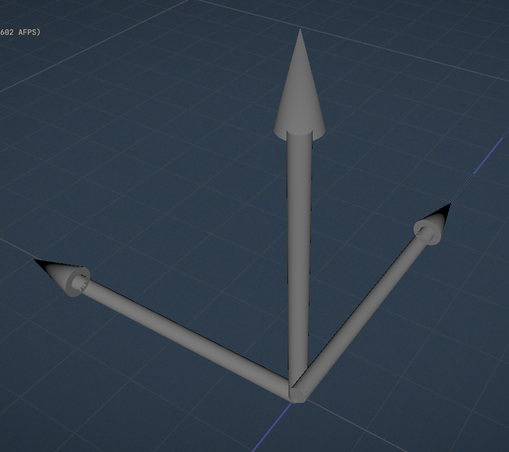

It started with drawing a basic axis mesh at first:
It started with drawing a basic axis mesh at first:

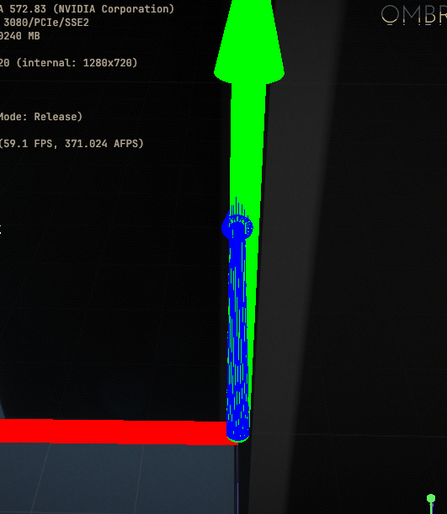

I quickly hit a snag however: sorting issues !

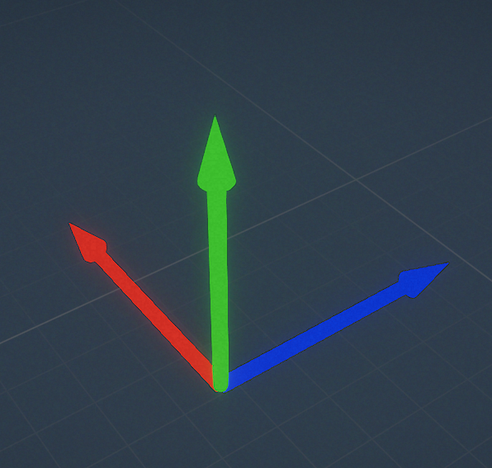

Without depth writing, you cannot properly draw that object, especially since it's a single mesh. However because it's gizmo I didn't want to overwrite the scene depth buffer.
Without depth writing, you cannot properly draw that object, especially since it's a single mesh. However because it's gizmo I didn't want to overwrite the scene depth buffer.
Kristian Sivonen@froyok Your choice of test audio clip for these demos brings me joy.
agersant@froyok I don't have a link because search engines are indeed hopeless. IIRC Guy Somberg's 2015 GDC talk (`How to write an audio engine`) covered this in a practical way.
Lessons Learned from a Decade of Audio Programming
@froyok Negative, but search engine was in a better mood today and I found it! https://www.gdcvault.com/play/1022060/How-to-Write-an-Audio
There is less than I remembered about reverb. Hopefully there's something useful in there regardless š
@agersant Thank you ! š
Nick Appleton@froyok I just tried a whole bunch of terms with google that I thought would be useful: āBlocked convolutionā āblocked FIR filteringā āreal-time audio convolutionā āframed audio convolutionā (which are all applicable for evaluating a reverb impulse response)ā¦ they were not particularly good but there were a few that seemed to scratch the surface.
@nickappleton Thx, much appreciated :)
Olivier ZUCCARO@froyok I think today, either at a tiny (like you) or big scale (like I don't know... Remedy), building an audio engine is crazy.
FMOD is free for very small projects and very affordable on mid sizes.
And currently, I'm fiddling with Steam audio and it's crazy how much you can do... and damn, audio raytracing :p
1/2
So, you'd need to build the root system for sure... but from a pragmatic standpoint, audio is a science as much as rendering with just pretty much zero room for innovation.
Building all the audio "fancyness" yourself is valid if you want to do it to "cultivate" your knowledge on audio tech.
Especially if you're not bringing something new to the table. If you aim for simple spatialization/reverb/occlusion without making something cool or new... middleware is definitely the solution.
@froyok ( I'm taking shortcuts here, but you get what I mean ;) )
@033max Which is exactly what I'm doing here by integrating Steam Audio. :)
