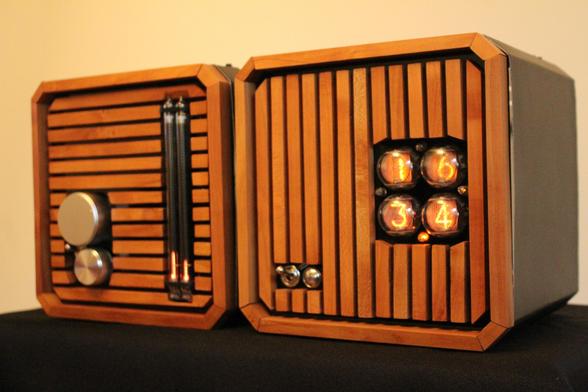

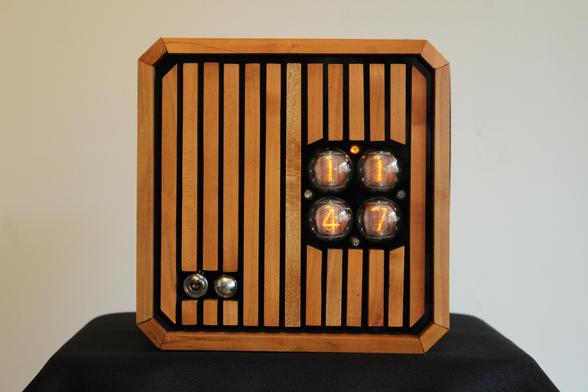

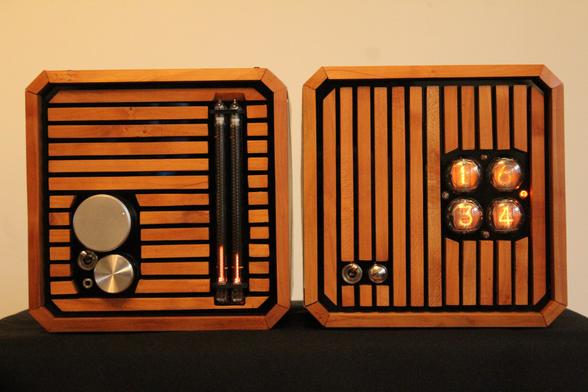

The clock : it uses german Z5600M tubes and 4 small neon lamps, the brains are an Arduino UNO R4 Wifi with the Arduinix (http://www.arduinix.com/) shield. It connects to my Wifi Accesspoint on startup and every friday to (re)synchronize. If you power it up while pressing the button, it will create an access point and a webpage, from which you can set up your local wifi info.
#DIY #electronics #arduino #nixie #nixietube #nixieclock #audio #amplifier #VUmeter #lasercutting #woodworking #Conceptart

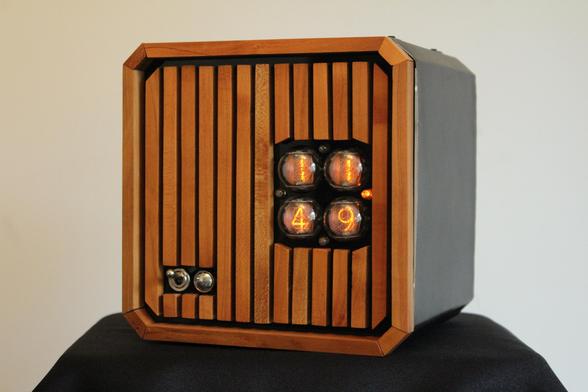

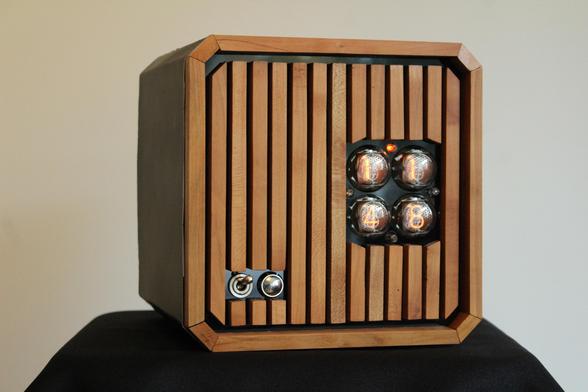

Some close-up shots
#DIY #electronics #arduino #nixie #nixietube #nixieclock #audio #amplifier #VUmeter #cnc #lasercutting #woodworking #Conceptart

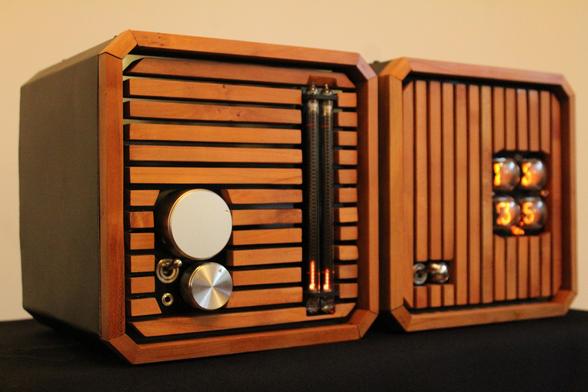

The amp uses the SGVU151 kit and IN-13 tubes. The audio part uses the ELA21306 board, as its power matches the speakers I want to use. It's okay for the moment, but I might swap if for something better if I want to revisit this project one day.
#DIY #electronics #arduino #nixie #nixietube #nixieclock #audio #amplifier #VUmeter #cnc #lasercutting #woodworking #Conceptart

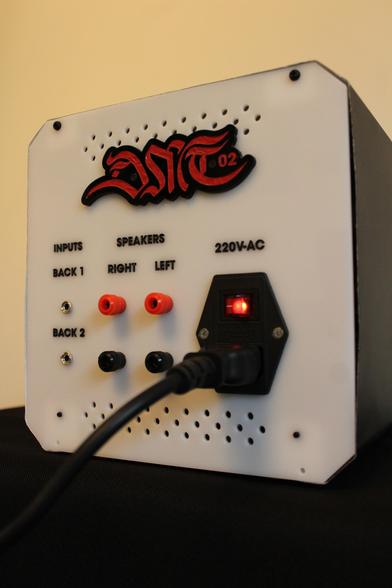

Some close-up shots :
#DIY #electronics #arduino #nixie #nixietube #nixieclock #audio #amplifier #VUmeter #cnc #lasercutting #woodworking #Conceptart

Here are some early pictures from 2017 and more recently from 2023
#DIY #electronics #arduino #nixie #nixietube #nixieclock #audio #amplifier #VUmeter #cnc #lasercutting #woodworking #Conceptart
