My "Nixiez" : I am finally wrapping up a project I started in 2017 ! A DIY clock and audio amplifier duo.
Here's the github page with the code and more details than I have the patience to share here : https://github.com/dmeat-art/DMT-Nixie-clock-amp
#DIY #electronics #arduino #nixie #nixietube #nixieclock #audio #amplifier #VUmeter #cnc #lasercutting #woodworking #Conceptart
GitHub - dmeat-art/DMT-Nixie-clock-amp: Source files and info for the nixie clock and the amplifier with Nixie VU meter I built.

Source files and info for the nixie clock and the amplifier with Nixie VU meter I built. - dmeat-art/DMT-Nixie-clock-amp

GitHub
Show threadD-MeatFeb 1
The clock : it uses german Z5600M tubes and 4 small neon lamps, the brains are an Arduino UNO R4 Wifi with the Arduinix (http://www.arduinix.com/) shield. It connects to my Wifi Accesspoint on startup and every friday to (re)synchronize. If you power it up while pressing the button, it will create an access point and a webpage, from which you can set up your local wifi info.
#DIY #electronics #arduino #nixie #nixietube #nixieclock #audio #amplifier #VUmeter #lasercutting #woodworking #Conceptart
ArduiNIX™

Show threadD-MeatFeb 1
Some close-up shots
#DIY #electronics #arduino #nixie #nixietube #nixieclock #audio #amplifier #VUmeter #cnc #lasercutting #woodworking #Conceptart
Show threadD-MeatFeb 1
The amp uses the SGVU151 kit and IN-13 tubes. The audio part uses the ELA21306 board, as its power matches the speakers I want to use. It's okay for the moment, but I might swap if for something better if I want to revisit this project one day.
#DIY #electronics #arduino #nixie #nixietube #nixieclock #audio #amplifier #VUmeter #cnc #lasercutting #woodworking #Conceptart
Show threadD-MeatFeb 1
Some close-up shots :
#DIY #electronics #arduino #nixie #nixietube #nixieclock #audio #amplifier #VUmeter #cnc #lasercutting #woodworking #Conceptart
Show threadD-MeatFeb 1

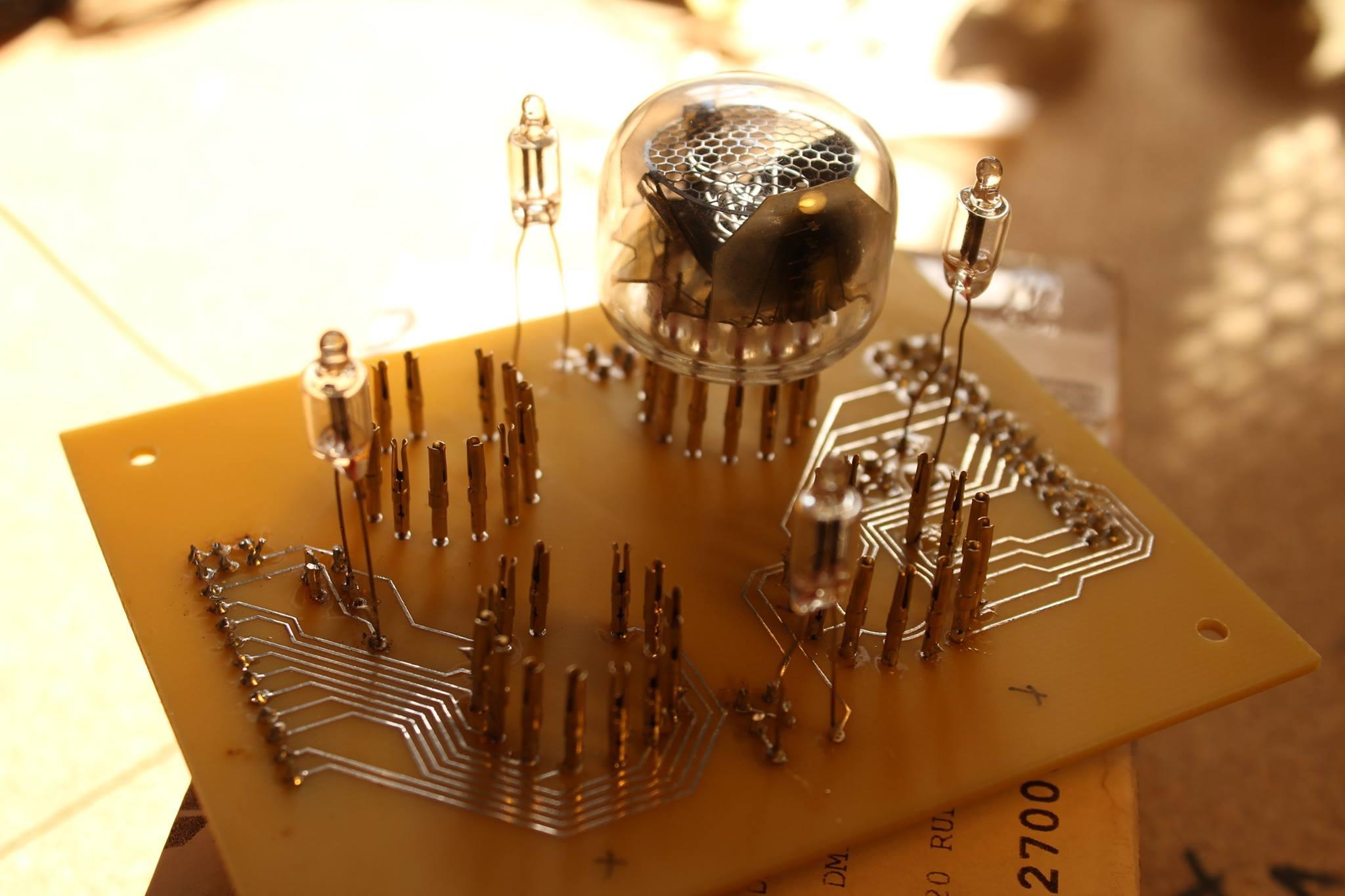

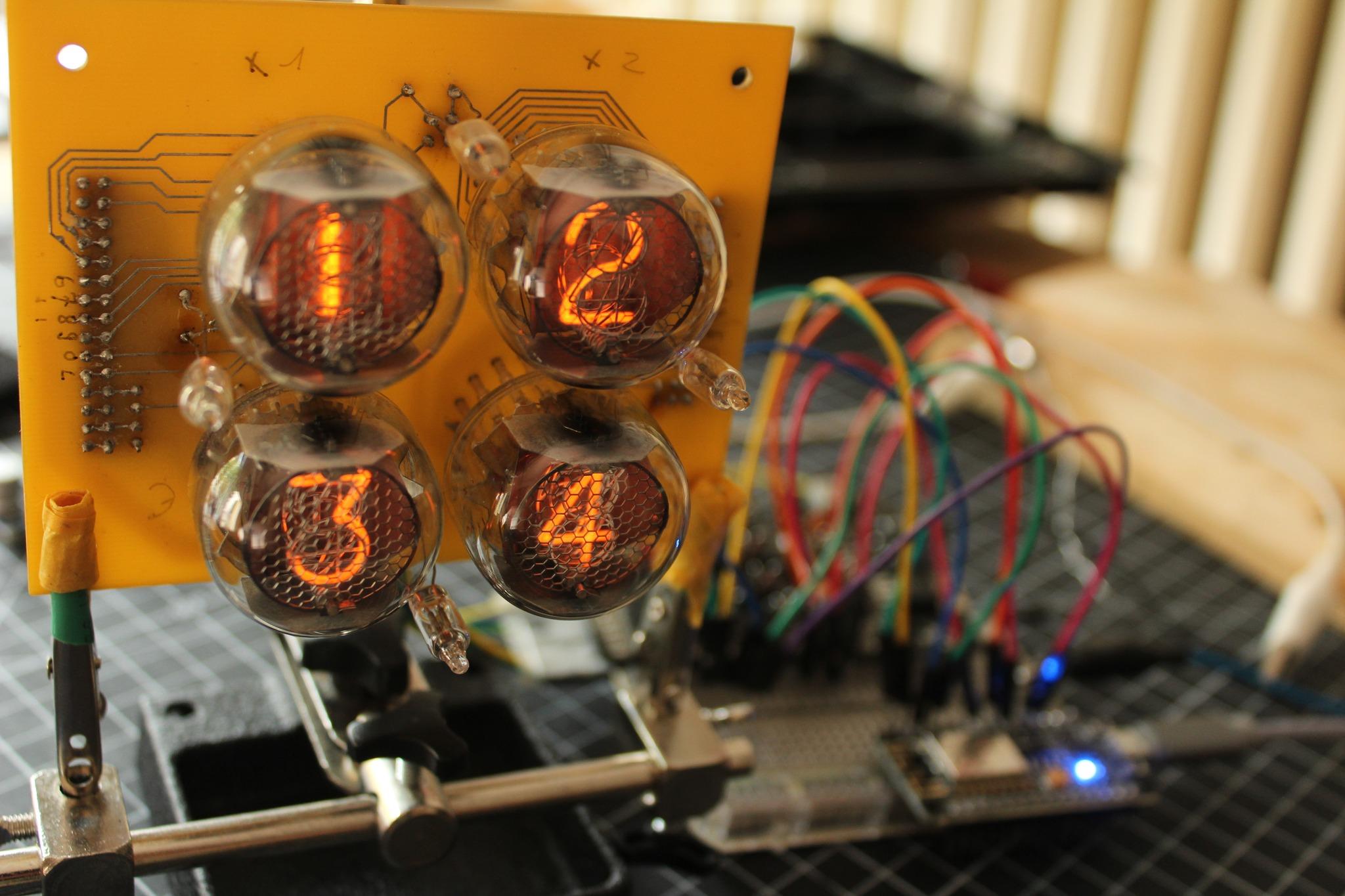

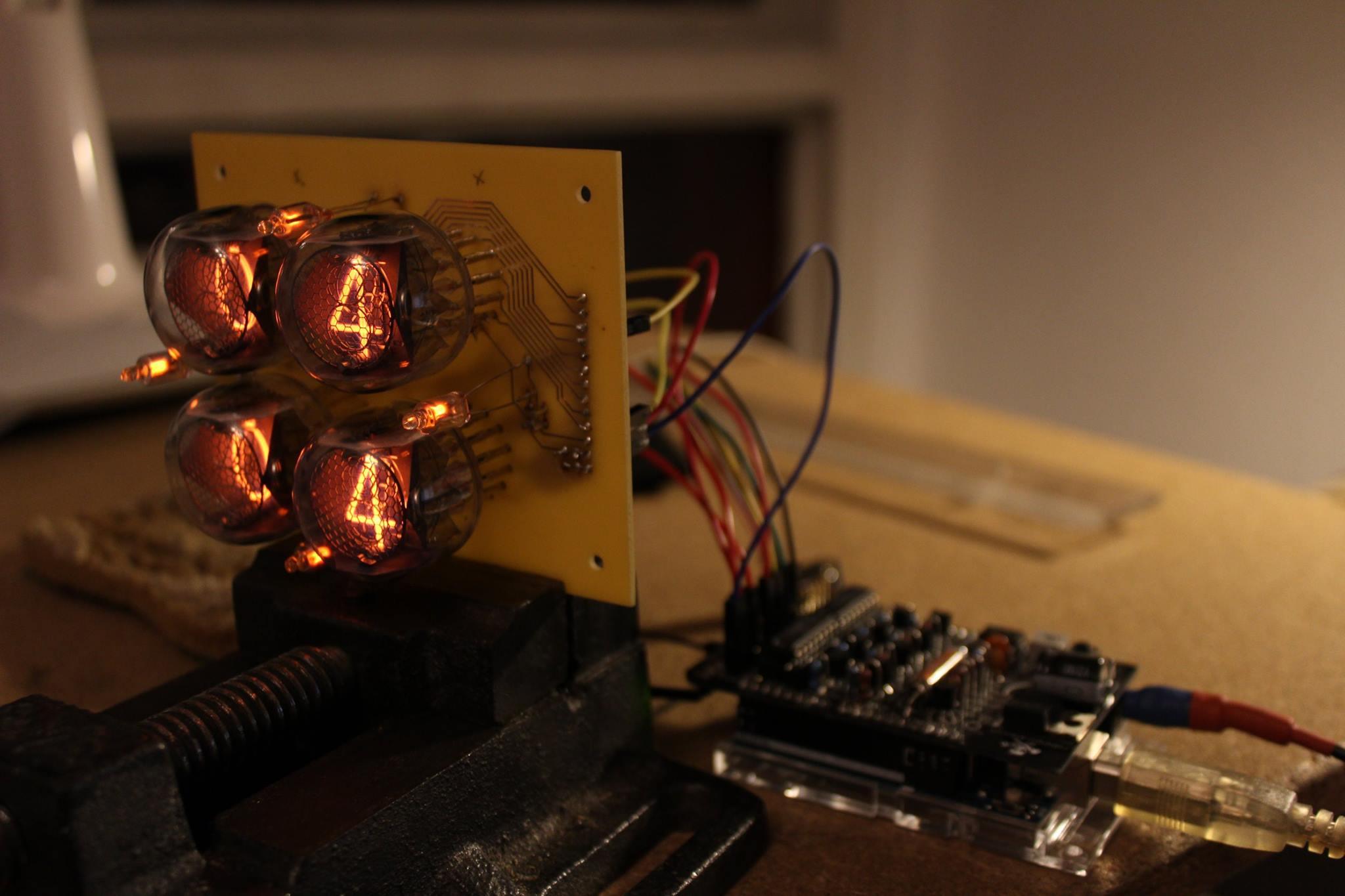

Here are some early pictures from 2017 and more recently from 2023
#DIY #electronics #arduino #nixie #nixietube #nixieclock #audio #amplifier #VUmeter #cnc #lasercutting #woodworking #Conceptart
Show threadÖlbaumFeb 1
@dmeat It took you that long? I’m so glad. I’m building a music player for my daughters, with RFID cassettes. I started when the older one couldn’t read, so she could choose what she eats to hear from a picture and without having to use a UI. Now she’s 9. 🥺
Show threadD-MeatFeb 3
@oscherler Yeah, life got in the way (and I have too many interests and ideas all the time). Keep on the projects going !
Show threadÖlbaum
@dmeat I didn’t mean to sound critical. I know exactly how it is.
Feb 3 at 11:12amWeb
×
Show threadD-MeatFeb 1
Here are some early pictures from 2017 and more recently from 2023
#DIY #electronics #arduino #nixie #nixietube #nixieclock #audio #amplifier #VUmeter #cnc #lasercutting #woodworking #Conceptart
Show threadD-MeatFeb 1
Here are some pictures of the woodworking and assembly
#DIY #electronics #arduino #nixie #nixietube #nixieclock #audio #amplifier #VUmeter #cnc #lasercutting #woodworking #Conceptart
Show threadD-MeatFeb 1
Here's a quick selection of research sketches, ranging from 2017 to 2023. You can find the rest over on the github page !
#DIY #electronics #arduino #nixie #nixietube #nixieclock #audio #amplifier #VUmeter #cnc #lasercutting #woodworking #Conceptart
Show threadD-MeatFeb 1
I have a 3D version made in Blender to help me vizualize the project (before jumping all in with the fabrication and spending money on materials and laser cutting)
#DIY #electronics #arduino #nixie #nixietube #nixieclock #audio #amplifier #VUmeter #cnc #lasercutting #woodworking #Conceptart
Show threadD-MeatFeb 1
Electronics and woodworking are not my main artfield ! Actually, electronics projects will be the exception on my social media, as I want to push more art (= drawings) in 2025.
