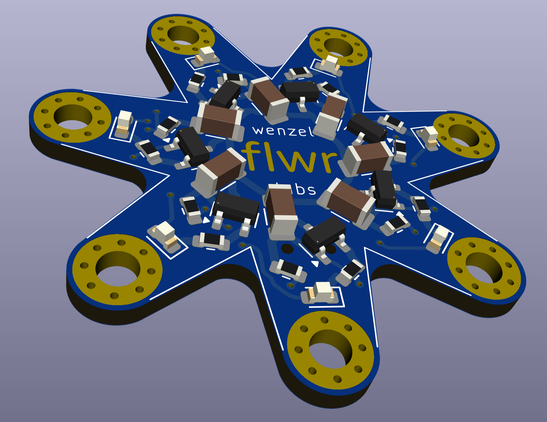

wenzellabslet me introduce to you: flwr. came out nice.
OMG yes!
they made those brick toys compatible with my new blinky flwr board.
that #ringoscillator thingie escalated to SMD and seven petals. not sure it will be in time for #39c3 though.

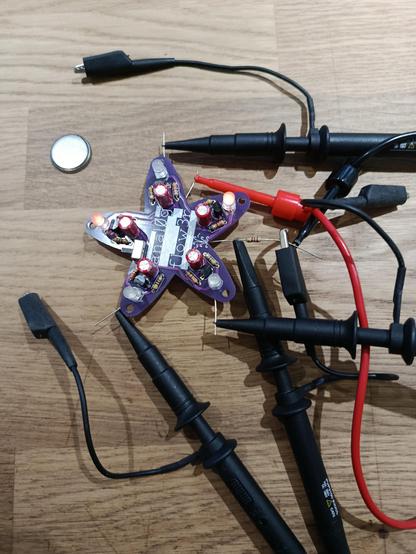

no, no, no - she's doing fine. just doing some heart rate measurements.
#39c3 #ringoscillator #ringosc #led #kit #solder #anal0gflow3r #anal0g_flow3r
@BlinkUp this is just the natural appearance of a #ringoscillator
it's just a ring of inverters with an odd number of stages, say 2*n+1 and "about" half of the stages are dark, half of the stages are lit.
all except one stage are stable all the time. that one gets "chased", switched to the other value, then the next stage has the "wrong" value and gets switched.
depending on how you wire it, either n will be lit, or n+1.
here the beauty lies in the slow turning on and off - in my eyes.
GeekProjects NewsPentaBlinky – When One LED Is Not Blinky Enough https://hackaday.com/2023/08/10/pentablinky-when-one-led-is-not-blinky-enough/ #discretetransistors #ringoscillator #classichacks #LEDHacks #blinky #led
