ECHIDNA Bass Overdrive with Dry Blend. Based on FET technology, capable of reaching up-to slight distortion levels. (more specs in first comment)

#basspedals #bassoverdrive #bassdistortion #dryblend #basseffects #dpFXpedals #dpFX #dpeffects #boutiquepedals #pedalbuilder
#pedalseffects #handpaintedpedals #handmadepedals #echidna #effectspedals
KRAMA-3: Triple Loop Parallel Blender with Dry Mute & phase reverse
Specifications in brief:
▹ Three independent, parallel loops A, B, C
▹ Dry blend. (Dry signal can be muted)
▹ Phase reverse for each loop.
▹ 4 footswitches for muting A, B, C, Dry
▹ Standard TS jacks (6.35mm, 1/4")
▹ Input impedance: 10MΩ (In, Return)
▹ Output impedance: 100Ω (Out, Send)
▹ Power Supply: 9-24V. / Polarity: Negative tip
▹ Current draw: 25mA
▹ Enclosure dimensions: 122x66x39.5 mm (4.8x2.6x1.55 in)
▹ Weight: ~500gr

KRAMA-3 works with typical 9V power supply (center negative) and it can take up to 24V(max). The higher the voltage the more the available headroom:
( ~6Vpp@9V | ~10Vpp@12V | ~16Vpp@18V | ~22Vpp@24V )

#pedalblender #dryblend #boutiquepedals #dpFXpedals #dpFX #pedalbuilder #pedalmaker #handpaintedpedals #handmadepedals #parallelblender #paralleleffectsloop #guitarblender #bassblender #cleanblend #loopblender #greekpedals

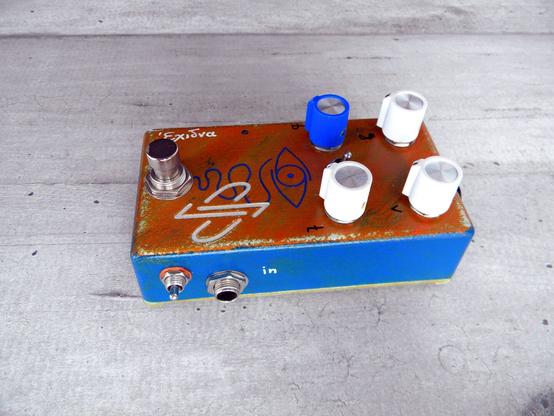

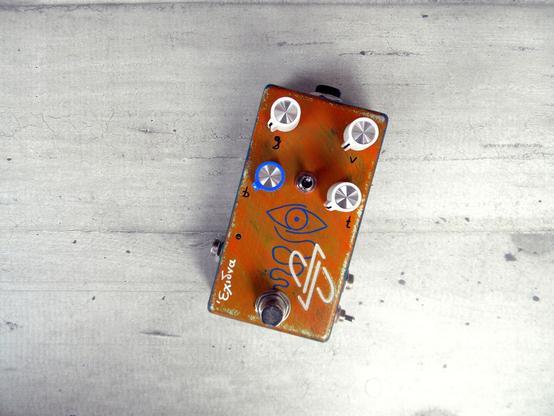

ECHIDNA Bass Overdrive with Dry Blend.

Compact, yet aggressive. Aggressive yet mild. ECHIDNA makes use exclusively of FET technology to produce a smooth drive effect with a tasty tube-like harmonic content.
The absence of clipping diodes and the use of cascading JFET & MOSFET stages ensure a quite dynamic behaviour and crystal clear tone. Gain control varies from a clean 'biting' to heavier overdrive and if you crank it up it can reach up to slight distortion levels.
Blend control allows you to mix the clean signal preserving your tone and low end.

- g : gain.
- t: tone of the overdriven signal
- b : Blend control.
- v: volume
- toggle switch one the side: LO=low gain, HI=hi gain
- toggle switch on top: Flip it down for some extra mids and presence.

#basspedals #bassoverdrive #bassdistortion #dryblend #basseffects #dpFXpedals #dpFX #dpeffects #boutiquepedals #pedalbuilder #pedalseffects #handpaintedpedals #handmadepedals #echidna #effectspedals
