adingbatponder  👾Mar 25, 2025

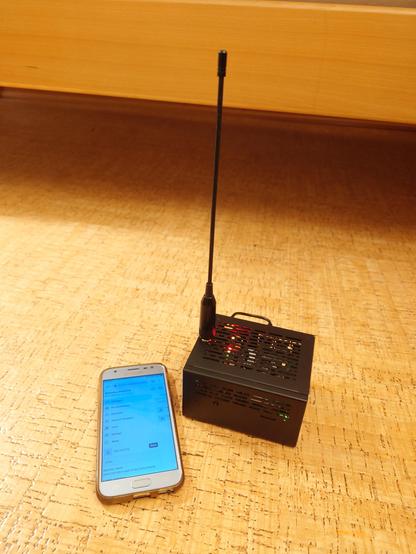

A #rnode build for #reticulum using a #raspberrypi5 and #geekwormx1206 #ups for a #carnode or #solarnode
https://www.loramesh.org/subpages/upsrnode/upsrnode.html
Running #meshchat , four #liion #21700 5000 mAh batteries seem to run the #rak4631 and Pi for at least 24 hours. The device can be re-charged using #usbc or 9 to 18 V DC at up to 3 A via a jack or other connector. The rnode shuts down cleanly when batteries run out & re-starts when power is back, whereupon the batteries charge at the same time in #passthroughcharging
lora mesh - UPS Pi 5 rnode

adingbatponder  👾Feb 10, 2025

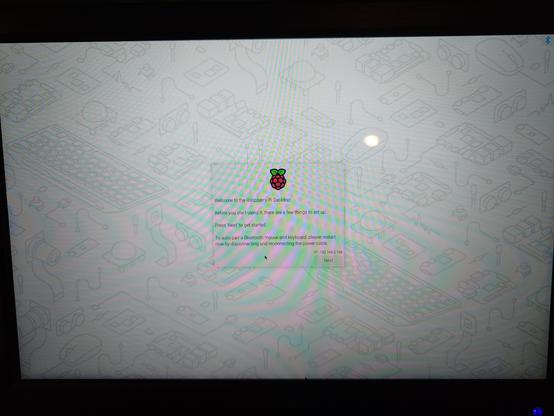

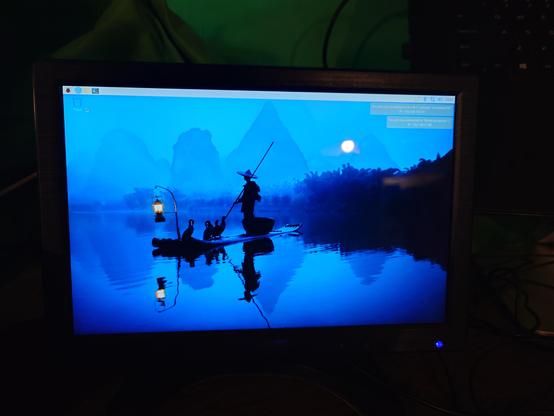

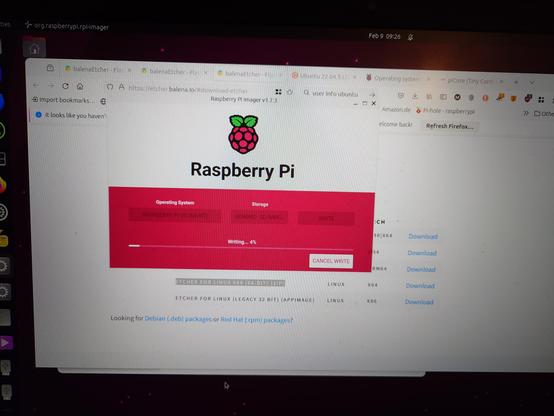

Link below is for step by step instructions for installing #reticulum #meshchat on #RaspberryPi using #commandline ( e.g. with #remote #headless #ssh ) with automatic #restart of #radio #rnode #service on pi power-on or #reboot . Suitable for restart of pi+rnode after #brownout of #SolarNode following period of little sun, or for rnode in car #carnode to start automatically when car starts, or battery powered node --->
http://loramesh.org/subpages/pi_install.html

#reticulummeshchat
#nodes like #meshtastic nodes

lora Mesh - raspberry pi setup

adingbatponder  👾Sep 2, 2024
#meshtastic #carnode Node in car, details shown here https://meshtastic.discourse.group/t/car-node-with-external-antenna/14518
Car node with external antenna

Parts Car: Toyota Pro Ace City, which is same as Citroen Berlingo, Opel Combo, and Peugeot Partner Antenna: Sirio - SKA 901 C | K-PO Magnetic mount: Sirio - SKA 900 1/4 MAG | K-PO Node: Station G2 from Meshtastic Mesh Device Station G2 – B&Q Consulting Shop Adaptor: FME male to SMA male https://amzn.eu/d/bm331pJ Power bank: Jackery Explorer 240 (note this switches off after 10 hours automatically, see here for alternatives Station G2 | Unit Engineering) Power bank USB PD adaptor: https...

Meshtastic
adingbatponder  👾Jul 25, 2024

#meshtastic #carnode

build info here
https://meshtastic.discourse.group/t/car-node-with-quickly-removable-temporary-high-antenna-on-roof/13914

Car node with quickly removable temporary high antenna on roof

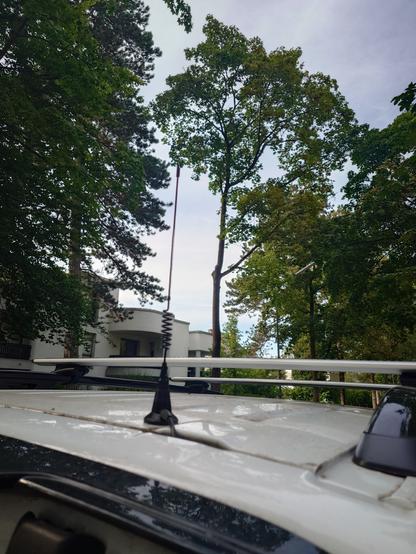

Please note, this is not for driving around with the antenna on the roof, obviously! The setup is to use when car is parked to get more height and range to play around with testing reception of Meshtastic signals when camping or parked up. The use of “Fast Grip” clamps makes for particularly fast and easy mounting and removal of the antenna, and is sure to drive the family up the wall at those beauty spots during what your family calls “holidays” but is otherwise properly known as Meshplor...

Meshtastic
adingbatponder  👾Jun 16, 2024
#meshtastic #carnode #node
Car node.
Parts list:
Node: Station G2
https://shop.uniteng.com/product/meshtastic-mesh-device-station-edition/
Battery: Jackery 240 (240 Wh) https://www.cyberport.de/haushalt/outdoor-sport/camping-zubehoer/jackery/pdp/qx03-001/jackery-explorer-240-tragbare-power-station.html
Cable:
https://amzn.eu/d/awA9R8a
USB PD adapter:
https://amzn.eu/d/hGJWITe
5% of 240 Wh used in 8 hrs.
#stationG2
Car: #Toyota Proace City Verso Team Deutschland = Citroën Berlingo = Peugeot Partner Teepee
