The “tootie-toosie” and the Hiking Antenna

My favorite way of operating is to hike into the woods, find a clearing, set up a quick and easy antenna, make one or more contacts and move on. Well, to be honest, I might pause long enough at a back country waypoint to get out my Aeropress and brew up a refreshing cup of Joe.

To do this my antenna must be simple, compact, lightweight and (hopefully) efficient. The simplest arrangement that meets those criteria is an end-fed wire, but quite often the trees are not tall enough, or contain dense brush in which wires can become entangled. I needed something compact and self-contained that is easy to carry into and set up in a dense wooded area.

I came up with a couple of ideas. First up to bat was a Linear-Loaded Monopole (LLM: no, not a Lunar Landing Module). The LLM is a recent bizarre invention that escaped from my basement skunk works lab and made its virgin QSO in the outback (out in my backyard). But I also had another idea on deck – a converted photo lighting tripod with short whip that I used very successfully out in the field last summer.

Other craft ale inspired ideas may enter the fray during the course of the coming weeks and months but, for now, let’s discuss these two strange RF launch systems.

A rapid deployment hiking antenna does not share the same design imperatives as other less temporary antennas. The efficiency – the proportion of energy radiated compared to the amount delivered to the antenna by the transceiver – is obviously important, especially since my transient operating base will be primarily QRP. Rapid deployment is the key objective; it must be very fast to set up and tear down. Hiking expeditions often take me well away from my vehicle and any road. I operate in areas that are heavily forested and patrolled by sometimes aggressive black-coated guardians with big teeth and long sharp claws.

Another requirement that factors into the design is a small ground footprint. Trails in these parts are often shrinkingly narrow, rocky, uneven and sometimes covered in mud or pools of rainwater. Laying out a system of radials on the ground is not an attractive proposition and sometimes it is next to impossible. In a recent post (Link: Be gone pesky radials!) we introduced an alternative using a Ground Tuning Unit (GTU). Well, that’s all fine and dandy but the GTU I had built is a a little big and heavy for carrying down a trail. I challenged myself to come up with an alternative.

Most of my outdoor operating time is spent on one band: 20 meters, so I wondered whether it would be possible to design and build a much simplified alternative to the GTU that would be very small, very light and serve the same purpose. I came up with something that met those criteria very well indeed.

Enter the “tooty-toosie”

The “tootie-toosie”, or 2T2C is a Tuned Tank Circuit Coupler. The idea involves a tank circuit designed to resonate at a desired frequency. The frequency I targeted was 14.060 MHz which is the CW calling frequency in the 20-meter band. This L-C circuit is actually a series connected resonator so maybe not strictly a “tank” circuit but I liked the “tootie-toosie” name anyway.

It is actually quite difficult to wind an inductor and select a capacitance for resonance on a specific frequency. Instead I targeted the bottom end of 20m (I am a CW op). Component tolerances limit the accuracy so I gave it my best shot and the end result was quite good. A simple L-C resonant circuit will have a fairly low Q and that will give some leeway in the frequency response. I measured the finished project on a nanoVNA and the peak in the curve showed a useful bandwidth at the bottom end of 20m.

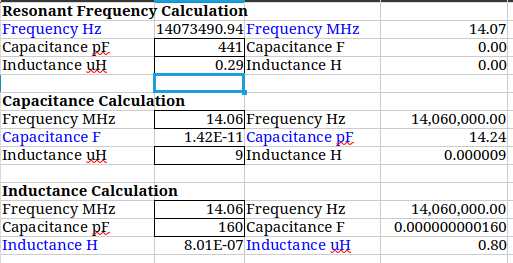

I had already designed a great little tool to assist in a project like this. It is a LibreOffice Calc spreadsheet that will compute the resonant frequency of an L-C tank circuit, or the capacitance required with a known inductance to resonate at a desired frequency; or the inductance required with a known capacitance to resonate at a desired frequency.

I plugged in some parameters to come up with component values needed then began construction.

Just like with previous projects I didn’t have the correct toroidal cores in my component drawer. And just like with those previous projects I leaned on my inner MacGyver to find a solution. T37-2 powdered iron cores were the best I could find and, just like before, I stacked multiple cores together to make a bigger aggregate core. As I understand it, inductors wound on toroidal cores perform best when as much of the winding as possible lies within the core. That gave me an idea. If I built a MacGyver version of a binocular core most of the winding will be inside the core. Could that work?

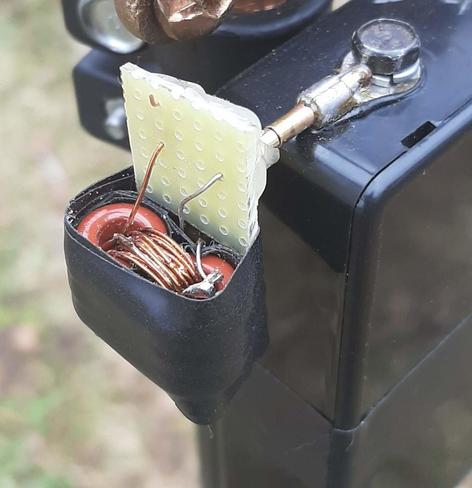

Here is how it came together. Two tightly stacked sets of three T37-2 powdered iron cores were put together and secured with electrical tape. Then thin enameled copper wire was wound through the cores until the cores were full of wire. [By the way, the enameled copper wire was scrounged by unwinding old surplus transformers I had in my junque drawer]. I had no idea whether this would work but I gave it a try anyway. The inductance measured on my L, C meter was 29 microhenries.

The tuned circuit calculator told me that was probably too much inductance, but it would be easy to reduce it by unwinding a few turns of wire. I wanted to use a 10pF ceramic capacitor (I have hundreds of them) so I needed only about 13 microhenries in the inductor.

After carefully unwinding the cores and measuring the inductance I got it down very close to 13 microhenries. The capacitor and inductor were quickly soldered together in series to create my tuned circuit.

About that capacitor

A tiny ceramic disc capacitor looks a little dodgy in this application. It has to carry the full AC current flowing in the ground circuit of whichever hiking antenna is chosen. Operating QRP puts less stress on the capacitor so I am hoping it can carry the load. As a backup a short length of thin speaker wire, or maybe even coax can be substituted in place of the ceramic capacitor.

[UPDATE: the ceramic capacitor has now been replaced with a compression trimmer. The only value I had available is 3-30pF so I reduced the number of turns on the coil so that the trimmer could be adjusted near its top end. Adjustment is quite coarse but it gives some flexibility to peak the ground current fairly accurately.]

First field test

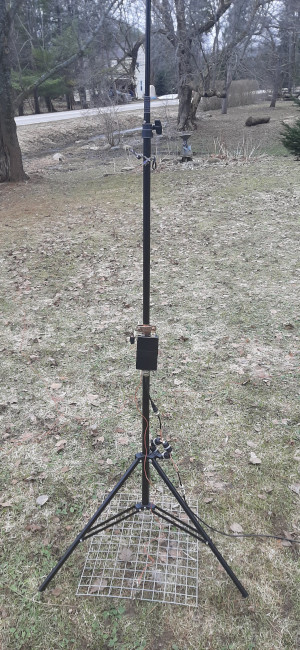

Most of the winter snow that was in my backyard has now melted so I was able to set up the tripod/whip antenna shown in the picture at the top of this post. Last summer this antenna was used with either two raised radials, or four ground radials. Will it work with the 2T2C ground coupler? On the day of the test there was a major solar storm and the bands were silent, but at least it would still be possible to see if the antenna would tune up with the radials replaced by this new arrangement.

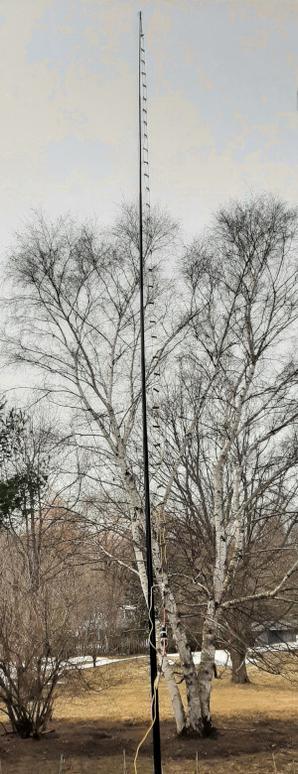

This antenna has a radiating element only 13ft long made up of a 9ft Buddipole whip with the remainder coming from the tripod main tube itself. It requires a 4:1 unun and a tuner but has the advantage of operating on multiple bands from 20m up to 10m (but used as a fixed 20m antenna in this experiment).

The test was successful in demonstrating that the antenna with this new fixed, tuned ground system would deliver a low SWR (1.3:1) to keep the transceiver happy. The next step, when the bands cooperate, is a full magic smoke test.

Ham Radio Outside the Box will report back when the hiking antenna options have been exposed to full field conditions. I am looking forward to getting back into the woods with my radio gear after another long, snowy winter!
