WS281 Neon LED strip with WLED controller project
#wled #neon #ws2811

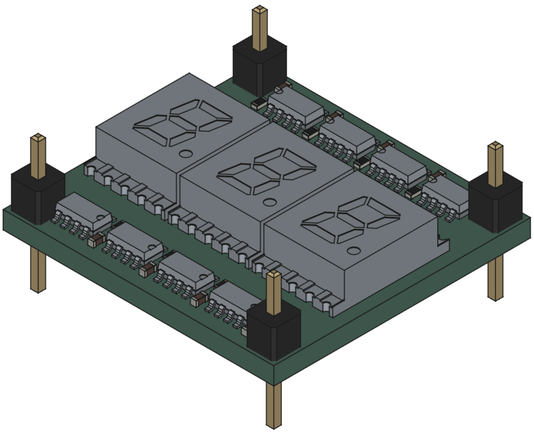

The whole assembly uses 8 of these little custom LED numeral PCBs: PCB size is only 23.2x22mm, featuring 3 numerals, 8 #WS2811 chips with 3 LED driver outputs each, which can be controlled similarly to a Neopixel: with a single pin from for example an ESP or a RaspberryPi Pico, you can provide a datastream providing the settings for the 3 outputs. Each chip takes the first 3 settings it receives and forwards the rest, so you can put them all in series.
The PCB itself has only 4 connections to the main PCB: +5V, GND and data in+out. These connections double as mechanical support.
