Show threadGary @N8DMTSep 6, 2025
DIY RF Power Meter Achievement Unlocked (initial functionality achieved). Reviewed code, made tweaks, found cal-offset magic numbers and calibrated temperature (single point) and input RF level over -55 to +5 dBm at my test oscillator’s frequency of 100 MHz. RF Power Meter works stand-alone (no PC). Would like to add serial output data in future, but no rush at the moment. Thanks to DL9SEC for sharing his Arduino code for a similar RF sensor!
#HamRadio #TestEquipment #RFPower
Gary @N8DMTSep 1, 2025

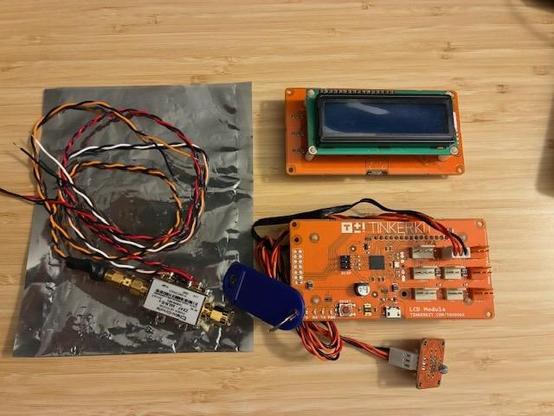

A smaller cleaner hardware platform might be one of these TinkerKit Leonardo-based displays. Either way, the code for these 2x16 LCD display modules is mostly the same. Would prefer developing using LabVIEW, but good to brush up on Arduino sized code and might have some fun getting one of these boards/displays working as a simple RF power meter.
#HamRadio #TestEquipment #RFPower
MaigusMar 23, 2025

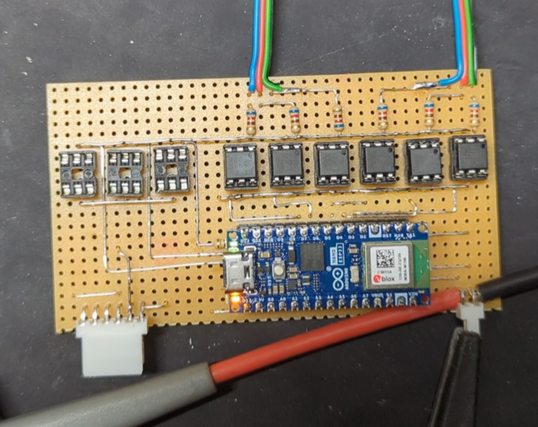

Nur ganz leichter Overkill: #arduino als BCD-Encoder zwischen Antennenmatrix und #rfpower PA. Die weiß so, welche Antenne angeschaltet ist und der interne ATU sucht die passende Abstimmung heraus. Als Gimmick gibt's Potenzialtrennung zwischen Station und PA-Netzteil.

Vive la Streifenraster! 😅

#hamradio #amateurfunk #electronics

John LeachApr 10, 2024

So here is a guy cooking a hotdog with a 10kw RF antenna. A bonus is it plays the radio audio as it cooks: https://www.youtube.com/watch?v=GgDxXDV4_hc

The antennas near our house are 200kw.

I don't plan on touching them whilst grounded so I'm not too concerned, but I am now wondering if I can just put up an antenna and steal power. Screw solar and wind, our house will be powered by MEDIUM WAVE BABY!

#solar #solarpower #windpower #rfpower #rf

We made a hot dog talk... with RF

YouTube
Show threadPilgrimage Farm LLCJan 29, 2023

@DesignedEcosystems

#resonance #harmony #overunity #tesla #RFpower
