DolphinDOS 2: Fixing a 35-Year-Old Bug That Never Was
DolphinDOS 2 is a replacement ROM for the Commodore 64 and its 1541 floppy disk drive that dramatically speeds up disk access by using a parallel cable between the two machines. Instead of the glacial CBM serial bus, data transfers happen byte-at-a-time over an 8-bit parallel port, making loads roughly 25x faster. I’ve been maintaining a custom version for myself. It changes the keys used to list the contents of disks and load programmes to match the Action Replay that I’m more familiar with.

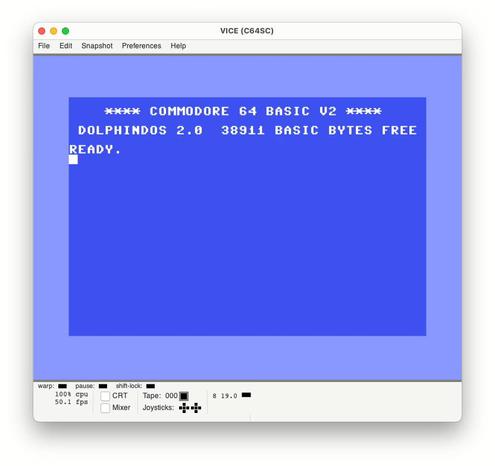

It also works in Vice, Ultimate64 and Commodore 64 Ultimate!
While I blogged about buying a real Commodore 64 in 2019, I didn’t post about buying an Ultimate 64 a few months later. The version I have is the non-Elite version but it’s quite a wonderful device. Unfortunately, life got in the way and the machine lay mostly unused for years. I must make a post about that little beauty one of these days. Anyway …
I just released version 1.2 of my DolphinDOS 2 project, and there’s a bug fix for a seemingly rare problem: a bug in the original DolphinDOS 2 ROM from the late 1980s that almost certainly never manifested on real hardware. It seems so rare I’ve never read of anyone complaining about it on any C64-related Facebook group until this bug report surfaced. The parallel port would randomly be switched off when a C64 Ultimate was switched on!
It was never my intention to go diving into the assembly of this project. I just wanted to change some keys around, but I had Claude Code look at it, with the relevant sections of the C64 Programmer’s Guide at hand for reference. I honestly don’t have time to fix a rare bug like this, but Claude did. Here’s what it said about the bug. I would be interested in hearing what C64 developers who have looked at the RAM in a real 1541 have to say.
The 1541 drive ROM uses four flag bytes at $6000–$6003 in drive RAM to control DolphinDOS features: R (read), F (fast format), V (verify), and P (parallel port). A value of $12 means disabled; anything else means enabled. The original ROM never initialises these flags at boot. It relies on whatever happens to be in RAM when the drive powers on.
On a real 1541 with SRAM, that RAM almost always powers up as zeroes — so $6003 is never $12, and the parallel port is always enabled. It just works accidentally.
On the C64 Ultimate, the emulated 1541 RAM isn’t zeroed so predictably. Sometimes $6003 powers up containing $12, and the parallel port silently disables itself. A user reported that their C64 Ultimate was randomly booting with the parallel port off. That’s something that would never happen on the original hardware.
The fix was simple enough, set the important memory locations to zero, although it took a couple of tries before it worked.
The fix adds a small init routine at the end of the 1541 ROM’s free space that zeroes $6000–$6003 and sets the track interleave at $6023 during the drive’s boot sequence. The tricky part was that the 1541 ROM has a checksum that the drive verifies on startup. If it doesn’t match, the drive refuses to boot. The new jump target was chosen so its address bytes sum to the same value as the original, keeping the checksum valid without needing a separate compensation byte.
Claude Code did the analysis and wrote the patch. I pointed it at the disassembly and the bug report, and it identified the uninitialised RAM as the root cause, found free space in the ROM, worked out the checksum constraint, and produced a working fix. The reporter tested it on their C64 Ultimate and confirmed it resolved the issue. I tested it in Vice and on my Ultimate64.
Other changes in 1.2:
- Tapping F1 now auto-runs after loading: previously F1 loaded the first program from disk but left you at the READY prompt. Now it executes RUN automatically.
- Cursor colour changed from cyan to white matching the look of the Action Replay I’m used to.
- kernal.asm is now compilable. I converted it to ACME assembler format, so you can modify and rebuild the C64 kernal ROM from source.
- Install instructions updated for the latest Ultimate64 firmware (which seems to match the C64 Ultimate instructions I found online).
The release is on GitHub. If you’re running DolphinDOS 2 on an Ultimate64 or C64 Ultimate, it’s worth updating.
You can also find the original kernal files here, along with different versions of them. My 1541.rom is based on the c1541-20-6.rom found there. My kernal.rom is based on kernal-20-2.rom. There is a third revision of that kernal rom too. I asked Claude to tell me what was different between them:
kernal-20-2 vs kernal-20-3: What’s different
The code is functionally almost identical. The 911 byte differences break down into a few categories:
The version byte at $FF80
v2: $03
v3: $00
Confusingly, the “revision 2” ROM has version byte $03 and “revision 3” has $00. The filenames may not reflect the actual revision order — kernal-20-3 might actually be an earlier or alternate build.
Code insertion at $EF5C: STOP key check (+5 bytes)
The biggest functional difference. At the start of the parallel LOAD path, v3 inserts:
EF5C JSR $FFE1 ; STOP - check RUN/STOP key
EF5F BNE $EF5C ; loop if not pressed
EF61 BEQ $EF2E ; if pressed, abort
v2 has no STOP key check here — it jumps straight into the transfer. This 3-instruction insertion (5 bytes) shifts all the code that follows by 5 bytes, which accounts for the majority of the single-byte differences (they’re all branch targets and jump addresses adjusted by +5 or +6 to compensate for the shift).
Parallel handshake: SEI added at $F841 (+1 byte)
v3 adds SEI (disable interrupts) at the entry to the parallel handshake routine. v2 doesn’t disable interrupts. This shifts the code in that block by 1 byte and cascades into further address adjustments.
Parallel transfer timeout: timer-based vs loop-based ($F910–$F968)
This is the most interesting technical difference. Both ROMs have a timeout when waiting for the drive to respond during parallel detection, but they implement it differently:
v2 (loop-based):
F92E LDX #$13 ; outer counter
F932 LDA $DD0D ; check CIA2 interrupt flags
F935 AND #$10 ; FLAG pin set?
F937 BNE $F948 ; yes → drive responded
F939 DEX ; no → count down
F93A BNE $F932
F93C DEC $A5 ; nested loop
F93E BNE $F932
Uses a nested DEX/DEC loop (~5000 iterations) as a timeout.
v3 (CIA timer-based):
F931 LDA #$FF
F933 STA $DC07 ; Timer B high byte = $FF
F936 LDA #$19
F938 STA $DC0F ; Start timer B, one-shot
F93B LDA $DD0D ; check FLAG pin
F93E AND #$10
F940 BNE $F950 ; drive responded
F942 LDA $DC06 ; read timer low byte
F945 CMP $DC06 ; compare with itself (has it changed?)
F948 BNE $F93B ; timer still running → keep waiting
Uses CIA1 Timer B for a hardware-timed timeout. More precise and CPU-independent.
Parallel fallback path: error handling ($F88B)
v2: JSR $EE85 → falls into standard IEC byte receive
v3: LDA #$00; JMP $EE16 → explicitly loads zero and jumps to a different IEC entry point
Serial LOAD: error recovery ($EFF1)
v2: JMP $EFCF — unconditional jump to byte receive
v3: BCS $EFD4 — conditional branch on carry, only retries if carry set
Data table pointer at $F0F1
v2: BIT $DD0D (2C 0D DD)
v3: STX $DC0C (8E 0C DC)
Different CIA register access — v3 writes to the serial port register rather than reading the interrupt flags. This changes how the timer/shift register state is managed after a transfer.
Jump table entries ($F8B1–$F8C9)
Several address entries in what appears to be a function pointer table are shifted by +6 bytes, consistent with the cumulative code insertion offsets.
Summary
Changev2 (your base) v3STOP key during parallel LOADNo checkPolls STOP keyInterrupt disable on handshakeNo SEI SEI at entryParallel detect timeoutSoftware loopCIA Timer BError recovery on serial fallbackUnconditional retryConditional on carryVersion byte $FF80$03$00
v3 appears to be a more defensive build — it adds interrupt protection, hardware-timed timeouts, and a STOP key escape during parallel transfers. These are the kinds of changes you’d make after encountering real-world reliability issues on certain hardware configurations.
Whether v3 is “better” depends on context. The CIA timer approach is more robust, but the STOP key polling loop at $EF5C is a tight busy-wait that could introduce latency. For the Ultimate64’s emulated parallel port, which is inherently reliable, v2’s simpler approach is probably fine.
Looks like version 2 of the 1541 kernal rom is fine for our use case.
I’m using Claude Code in my work at Automattic all the time. It’s been a huge help in getting through bug fixes and adding new features to the various projects I’m working on. I’ll be posting more about WordPress related goodness soon. Stay tuned.
