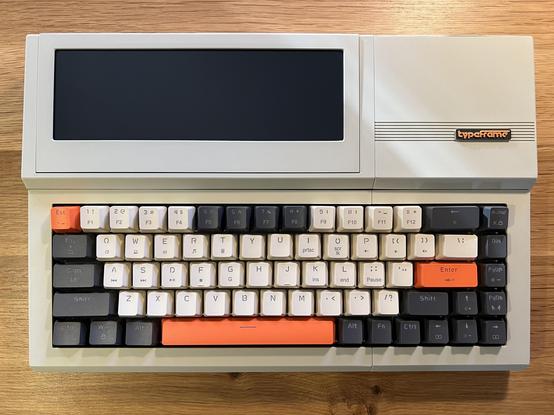

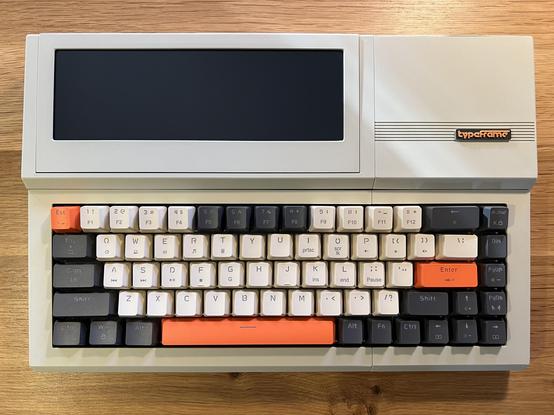

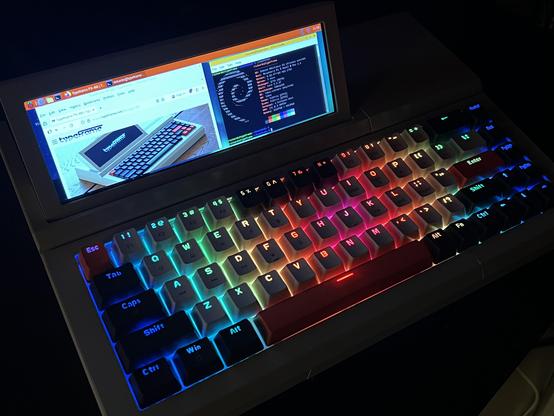

paulrickardsEver since I saw the Typeframe (a DIY writerdeck or cyberdeck), I wanted to build one. And so I did! I tweaked the design here and there to fit what I had on hand and my tastes. Here's the result. I'm pleased with how it turned out.

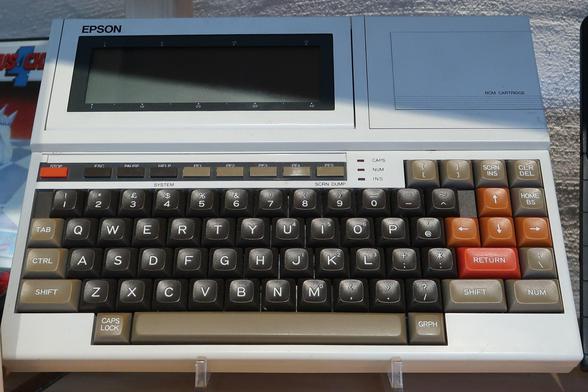

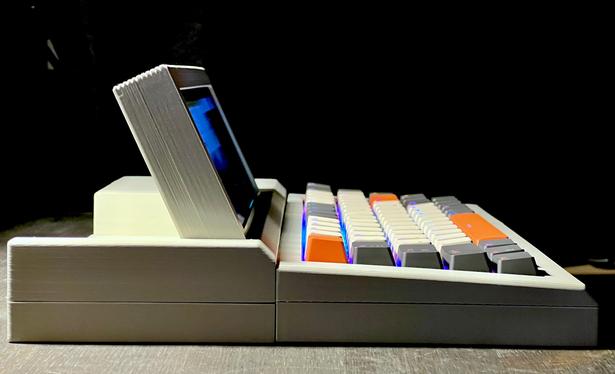

The Typeframe is modeled after the Epson PX-4 and looks like a twin. The 7.9" LCD is also a touchscreen. I chose a Raspberry Pi 5 and an inexpensive ready-made keyboard. It's all powered by a 10 Ah battery and charges with USB-C. And lots of 3D printing and cable management.
More info. to build your own: https://www.typeframe.net/

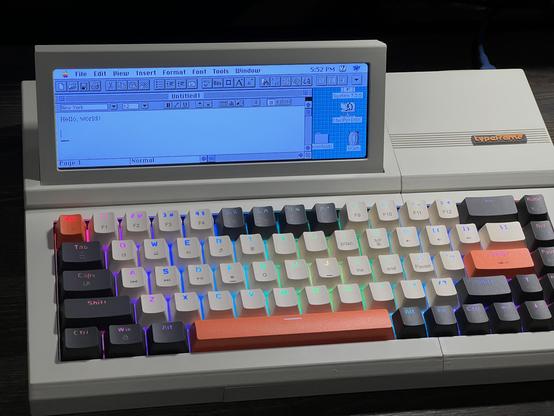

Yep, it runs MacOS 7.5 really wide 🙃
#typeframe #RetroComputing #cyberdeck #writerdeck #FlyingToasters #VintageApple #VintageMac

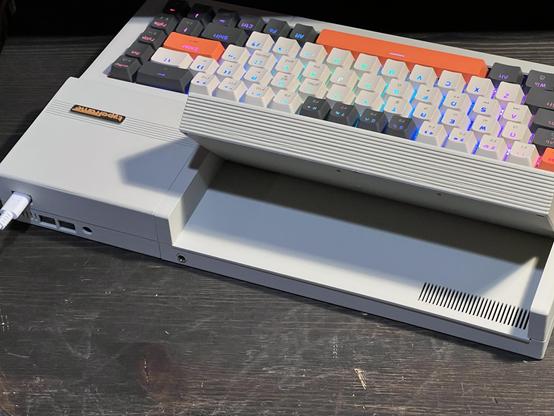

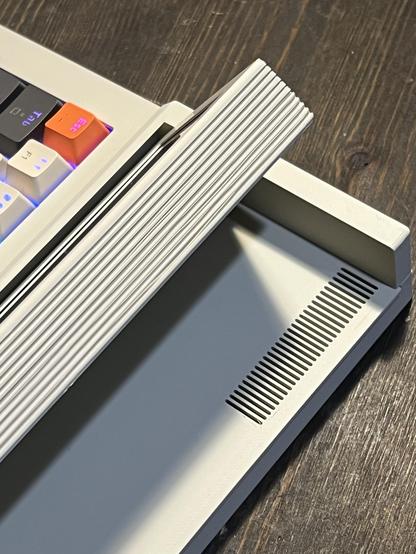

I added an internal speaker (from an old iPad) and headphone jack to my Typeframe. Since I used a Pi 5 with no on-board analog audio, I used a USB audio dongle.
I was delighted to learn of the simplicity of switching 3.5mm headphone jacks. They have 5 poles instead of 3. The audio source and internal speaker are wired to the headphone jack pins. They're normally closed and the internal speaker works. Plug in headphones, it switches. So simple!

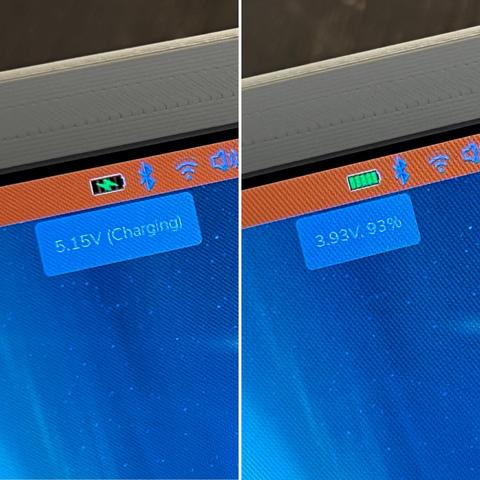

I also cobbled together a systray icon for the battery status using Python. It retrieves the battery info from the Power Management Hat over serial and updates the systray icon as needed. The tooltip shown appears when you mouse over or tap the battery icon.

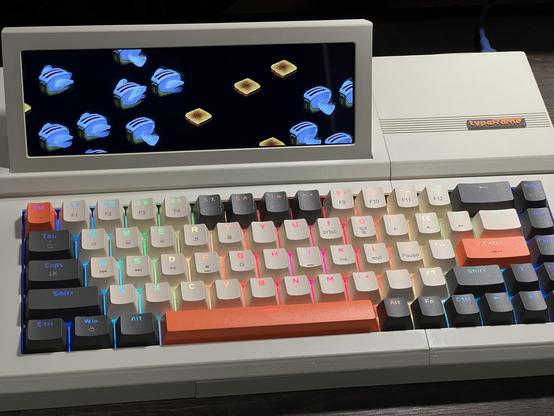

Writing zen, where the only distractions are Flying Toasters when you're idle 😉
Word 5.1a isn't too bad at 640x200 resolution. The UI is unobtrusive, crisp and legible, and big enough to touch.
Don’t forget to play Dark Castle today to see the tree in the foyer 🎄
