It's called a Smith chart or Smith diagram.

https://en.wikipedia.org/wiki/Smith_chart

@ThinkingSapien
I'm so bad at navigating in Mastadon! Sorry. I hope you got my reply. I'll do it again at the risk of pissing people off...
that is a Smith Chart — a fundamental tool in RF (radio frequency) and microwave engineering. It’s essentially a graphical calculator that helps engineers work with complex impedances, reflection coefficients, and transmission line problems without having to grind through a lot of equations.

Here’s a breakdown of what it does:

1. Impedance Representation

The chart maps complex impedances
Z=R+jX
Z=R+jX (where
R
R is resistance and
X
X is reactance) onto a normalized circle.

The horizontal axis (green line in the middle) represents purely real impedances:

Leftmost:
Z=0
Z=0 → short circuit

Center:
Z=1
Z=1 → matched impedance

Rightmost:
Z=∞
Z=∞ → open circuit

2. Reflection Coefficient

The Smith Chart is actually a mapping of the reflection coefficient
Γ
Γ onto the complex plane:

Γ=Z−Z0Z+Z0
Γ=
Z+Z
0
​

Z−Z
0
​

​

where
Z0
Z
0
​

is the characteristic impedance of the transmission line (often 50 Ω).

Every point on the chart corresponds to both an impedance and a reflection coefficient.

3. Constant Resistance and Reactance Circles

Blue circles → constant resistance (
Re(Z)
Re(Z)) curves.

Green arcs → constant reactance (
Im(Z)
Im(Z)) curves.

Where they intersect, you get a specific normalized impedance
z=R+jX
z=R+jX.

4. Practical Uses

Impedance matching: You can see how to add components (inductors, capacitors, stubs) to move toward the center point (
z=1
z=1), which means perfect match (no reflections).

Visualizing transmission line effects: Moving along a transmission line corresponds to moving along circles of constant |Γ| (magnitude of reflection).

Network analysis: Helps quickly solve problems involving VSWR (Voltage Standing Wave Ratio), return loss, and matching networks.

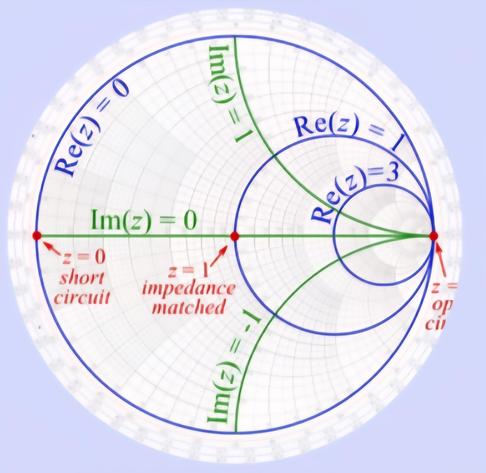

5. Special Points (in red on your chart)

Left edge → short circuit (
Z=0
Z=0)

Center → matched load (
Z=Z0
Z=Z
0
​

)

Right edge → open circuit (
Z=∞
Z=∞)

👉 In short: The Smith Chart is a visual slide rule for RF engineers. It turns tricky impedance math into geometry, making it easy to design and troubleshoot RF circuits.
