Nicola AvanziGood news for #Amiga friends! I managed to extract the equations of all 5 PAL16L8 of the #actionreplay III. Now I can start the remake project.

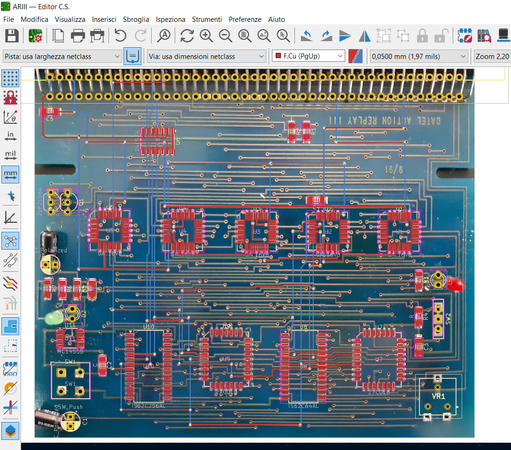

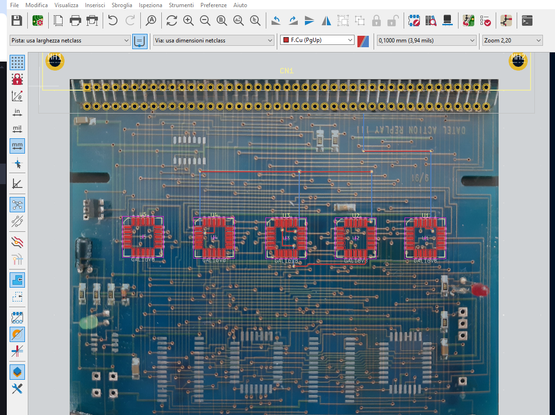

well, the reverse engineering work begins, we will update you later, much later😅

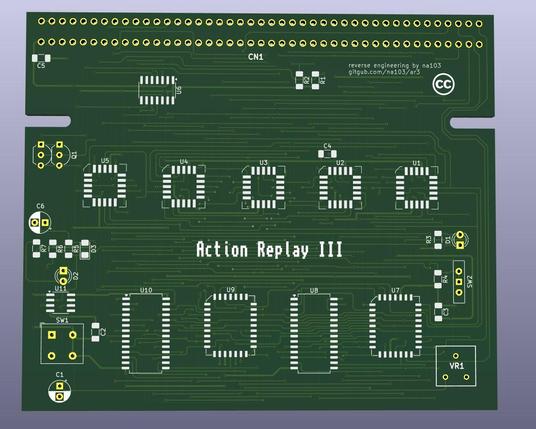

the pcb design is finished. some more checks and if everything ok I will order them on JLCPCB
I have published the work done so far on #amiga #actionreplay in this repository
https://github.com/na103/ar3
I will probably be able to test it in September after the summer holidays.
I found a key part for the new #actionreplay. The 86 pin edge connector for #amiga500
the pcbs from #jlcpcb have arrived, all that remains is to place an order on mouser
in the next few days i will do some in depth testing, i have to update the github project with some changes to the pbc and BOM
Tim Drew@na103 I’ve always wanted an Amiga AR. This looks a worthy project. How will they be available?
@sanxion sorry but there is no production/sale of this project planned. if you want you can try to build it yourself. everything you need on https://github.com/na103/ar3
Oktawian Chojnacki
Adam Piggott@na103 Have you also found the code that would glue the cart to the computer or electrocute it? I have no idea where the rumours about its kin, the Game Genie came from, but they sure kept me away from it.
@proactiveservices AR is somethings more than Game Genie cart. Take a look here https://www.youtube.com/watch?v=yqz2IqqFf6Q&t=8s
Amiga Cracking #1 Supremacy Your Will Be Broken!
Andreas 'count' Kotes (he/him)
EndlessMason@na103 That is a very tidy looking item.
