Kenneth FinneganSo I've got this empty concrete pad on the side of my house.
It used to have a rotted out 12x24' shed on it, but I demolished that last fall and figured I could do something better... 🧵
Day one was grinding down the high spots with a diamond cup wheel. $75 for the cup wheel and corded angle grinder.

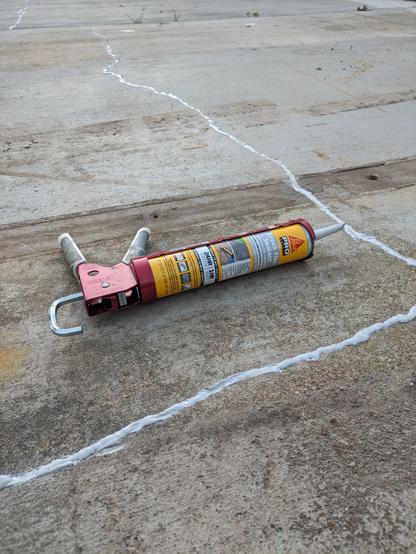

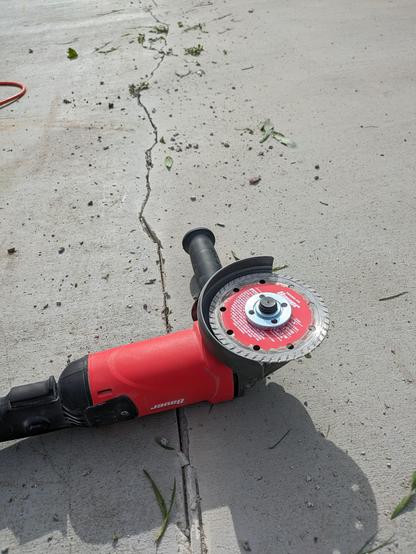

Day two is opening up the cracks with a diamond cut disc and filling them with crack sealer. $40 for the diamond discs and crack filler.
My dad volunteered to come down and help me restack all of the lumber inside of the fence and all in its own piles so I can get to all of it.
Only took the two of us about 2 hours to shuttle everything back there.

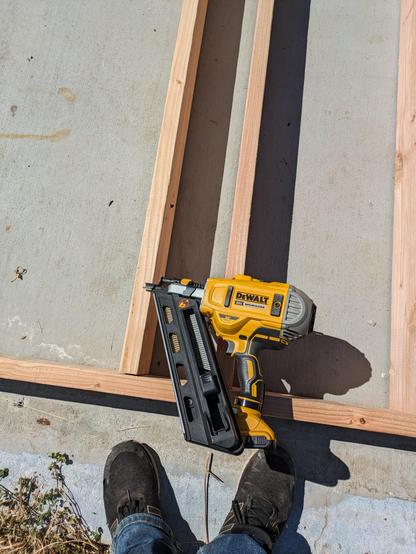

The inaugural wall frame. Now just fill with studs, repeat five more times, attach together, add roof, and bongo bango, you've got yourself a shed.
The inaugural mistake! I meant to leave that stud out so I'd have room to nail the header in.
So I guess we've moved to the "improvising" stage of this project.
Day two of framing my new shed. I woke up this morning and can still move, but I'm beginning to suspect that I don't want to quit my job and start framing houses for a living.
One wall panel done, second layout done. Now we just need to cut some studs and do it again.
The second panel went together much faster.
The site supervisor is sleeping in my office.
One of my neighbors came by to help me with the big lift. So we've got the tallest wall up in the air; everything from here on is lighter.
Alright. I found my limit. It is too hot and going back outside after noon was stupid. 🥵
We're up to a big J, which is exactly where I was hoping to get to today since this means the walls aren't all only held up with 2x4 braces and can kind of stand on its own.
The nice thing about driving a pickup truck is that when I tweak the shed design at the last minute and end up short a few 12 foot boards, I can just pick them up at the Home Depot.
We had some fog roll in this morning, so I took the opportunity to put a quick 90 minutes into framing another wall panel before it got hot today.

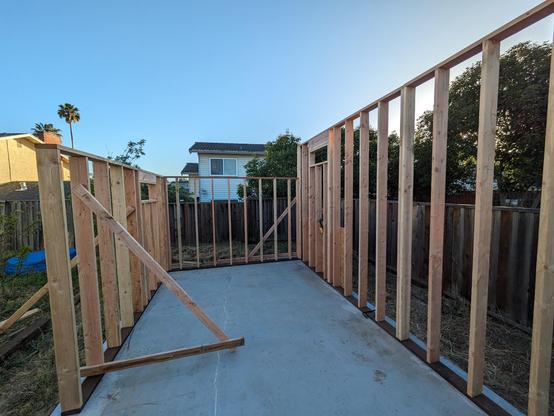

First good look of where the door is going and what the total footprint of the shed looks like.
Pat came over and helped me get the first row of OSB up, so the shed is finally stable enough I don't need to worry about a wind storm coming through.
Driving Tapcons freaking sucks and I don't want to talk about it.
I'm at that moderately stressful part where I need to make a final decision on the final roof line, and then make 16 copies of the first rafter I cut.
Pat came by this morning and helped me finish up cutting out all 19 rafters and nailing up all the hurricane ties to hold the roof on.
At that point we were ready to start putting rafters in the air, so why not?
The palm nailer was amazing for driving the hanger nails 11 feet up on an extension ladder. Easily the best $30 I've ever spent at Harbor Freight. Anyone who has an air compressor should pick one up; they're just so handy for driving nails in awkward tight spaces.
Got the last two rafters up, so just need to get the fascia and rake ladders up before we can start slinging roof sheething and shingles.
Another morning on the shed. We got all the blocking done between the rafters, so we're another step closer to SHINGLES!

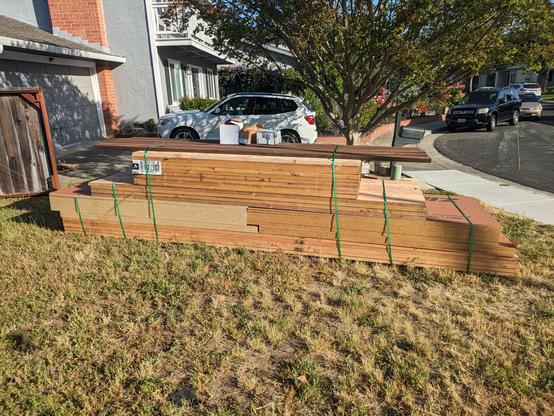

I also just realized that it's been a month since I got the original lumber delivery for this shed! So here's how we're doing as a whole one month in from delivery.
Final progress for the whole weekend. We're about half done with the sheathing, then I need to go shopping for shingles.
AMS
ducksauz 🦆@kwf Going to put more solar on the shed roof?
Looks like it might be pitched for it.
Looks like it might be pitched for it.
@ducksauz yep. I'll be able to fit 3.5kW on there
Enrico@kwf You've probably addressed this previously upthread somewhere, but where did the design come from? Is there a template you used, or did you design the overall shape and dimensions and calculate the stud walls and roof components yourself?
@redbassett I'm working it all out on my own.
Mike Szczys
Bob McWhirter@kwf it was 16 copies last week…
@bobmcwhirter the two end rafters are different from the 17 in the middle
morgan
Michael K Johnson@kwf I bought a Bosch 8 amp proper SDS+ hammer drill and it made a world of difference. It cost the same as two days of renting it...
@mcdanlj I'm making do with a 1/2" hammer drill atm, but yes. I am filled with regret that I didn't go with something larger.
@kwf Here's another unexpected benefit: I needed to drive nails overhead, up into old, dried treated lumber. I couldn't manage to do it swinging a hammer. I put an impact socket into the Bosch, put it over the nail heads in hammer-but-don't-twist mode, and drove those nails in about 2 seconds flat.
I don't use it much, but when I need it, it sure comes in clutch.
@kwf the hex heads help. And an impact driver.
@bobmcwhirter I keep hitting rebar or breaking the tapcons half way in
@kwf blowing the dust out of the pilot hole?
lopta
Nick 🦇🕸️🖤🖖
Zorin =^o.o^=@kwf OMG you're like a unicorn, actually owning a pickup and using it to carry stuff. So weird to see that in the wild! :)
@zorinlynx I've even towed things with it and filled it with a yard of dirt. It's very novel
@kwf To be fair, I've transported the same in a Mk7 Golf with the same overhang out the back.
Rob Ricci@kwf Props for having a real truck. Can you imagine someone hauling lumber in a cybertruck?
@ricci the wankpanzer wasn't made for cargo.
Jonathan Hendry“Buying a ladder” becomes a puzzle when you have a small SUV.
Bart Champagne ON6BC
@kwf I hope you put some silicone between the wall panels and the concrete, to avoid water seeping in ?
Gluing some EPDM from the concrete up against the walls might be a good thing as well.
Gluing some EPDM from the concrete up against the walls might be a good thing as well.
Jonathan Ward@kwf I would love to do something like this. Do you have really flexible hours or do you have to take vacation days for this?
@jrward I'm taking "unlimited PTO" to do it
Daniele Pantaleo 🦥
Monty Python - Arthur 'Two Sheds' Jackson
Graham McIntire@kwf especially after you see how insanely fast the guys that do that regularly can raise a stick frame. I’d keel over dead working at their pace.
@kwf Same here !
I'm putting up alu rails for solar panels on my roof and after a day everything just hurts.
Oh well, 205 meters of rail down, 3 meters to go.
And then the solar panels themselves, 88 in total, 21 kilogram each.
Keep going at an easy pace and remember how much joy it'll all give you in the end ! 🙂
bendodge@kwf I've not been online for a bit, but I see you got a nice nailgun!
