In spring 2022, after having been in one too many discussions about batteries, energy storage, and renewable share in energy grids, I decided to write a Twitter 🧵 on the subject, trying to collect what I have learned in the decade before that. I think it's high time I transferred this to mastodon, as long as I still can at least read Twitter.
Also, there are a few things I wanted to improve on that thread, so this is my chance.

sbi Jun 4, 2023

The TL;DR:

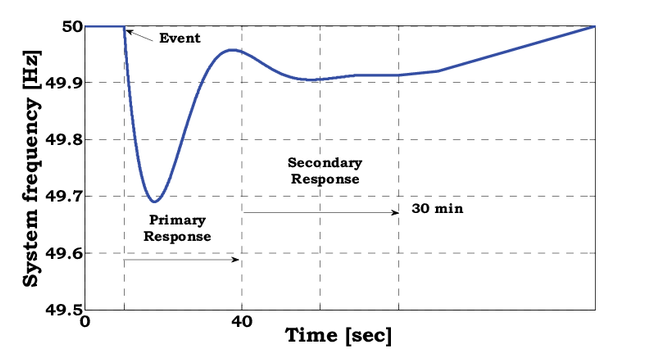

i) Due the need to do primary control (frequency response), a 100% renewable grid is impossible. You need either combustion engines or batteries to run your grid.
ii) Batteries are not great for storing significant amounts of energy, but they are very well suited for frequency response.

sbi Jun 4, 2023

Disclaimer: While I have been writing code in this domain for a decade, I am not an electrical engineer and mostly only learned what I needed on the job. Electrical engineering is complicated, people spend years studying it, and there is no way I could cram everything needed into this thread even if I knew it all—which I absolutely do not. So I have to oversimplify things.
Dear electrical engineers, reading this might physically hurt you. I am sorry.

Now let's get started!

sbi Jun 4, 2023

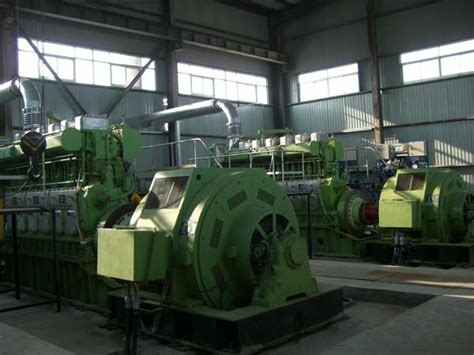

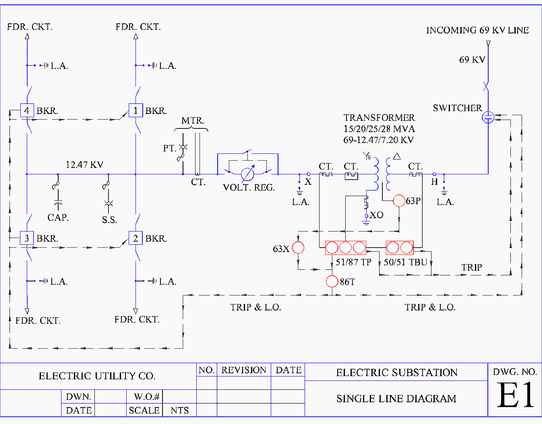

Traditionally, electrical power is provided by big rotating masses. Steam, oil, diesel, or gas generators turn coils in magnetic fields, which creates an AC current in the coils. Their turning speed determines the grid's frequency.
If too much energy is drawn from them, they slow down, if it is too little, they speed up. But machines have used centrifugal governors to regulate their speed at least since Watt invented his steam engine, so controlling rotation speed is a solved problem:

sbi Jun 4, 2023

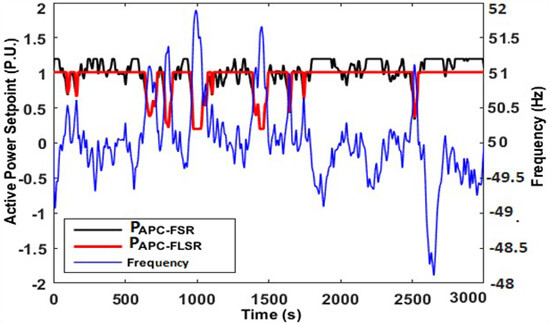

Increase fuel usage when the frequency is going down, reduce it if it is going up, so you always provide exactly the power needed. This is generally called primary control (or frequency response): an immediate response to demand fluctuations, fast enough to be practically instantaneous. What's more, communicating this throughout the grid by means of frequency allows generators to orchestrate power distribution: All producers see how it changes and can contribute to the best of their abilities.

sbi Jun 4, 2023

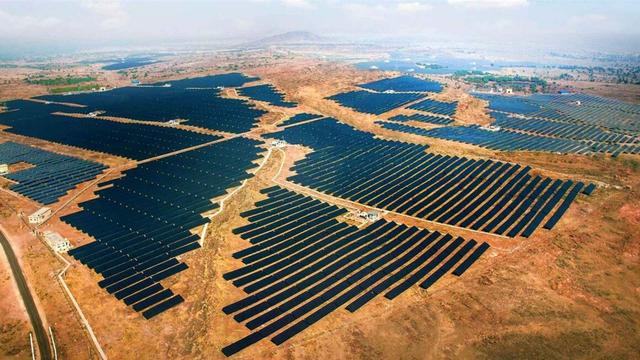

Now let's add a bunch of photo-voltaic (PV) panels with AC inverters to the mix. Those are *variable* power providers: Their output changes according to *supply*, not to *demand*. Supply depends on latitude, time of day/year, cloud cover, and other factors. PV inverters (usually) cannot *create* a grid. Other ("grid-forming") generators need to have done this first. ("Grid-following") PV inverters can then sync to that existing grid, adapting their frequency and phasing to it.

sbi Jun 4, 2023

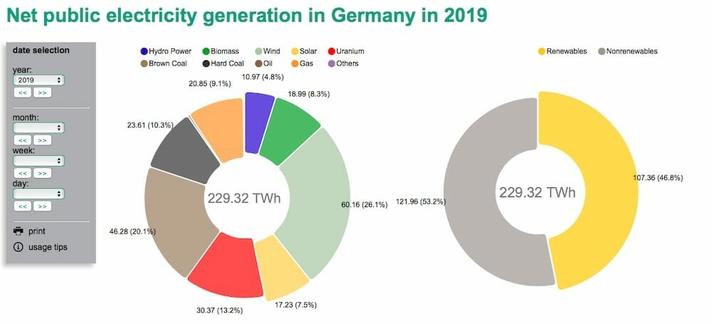

The PV panels provide as much power as they can and leave the rotating masses to sort out the rest. But this is fine only if you have a relatively small amount of this unregulated power in your grid, and the rotating fossil fuel generators can compensate for any fluctuations in consumption *and* PV supply.
If your PV supply varies between, say, 20% and 60% of your demand, then your generators need to provide between 40–80% of the energy. Things might get complicated then.

sbi Jun 4, 2023

On a sunny day, only 40% of your fossil fuel generator capacity is needed, but if some dark clouds come by, you might suddenly need 80% of it. And you need to be prepared, because cloud cover changes within minutes or seconds.

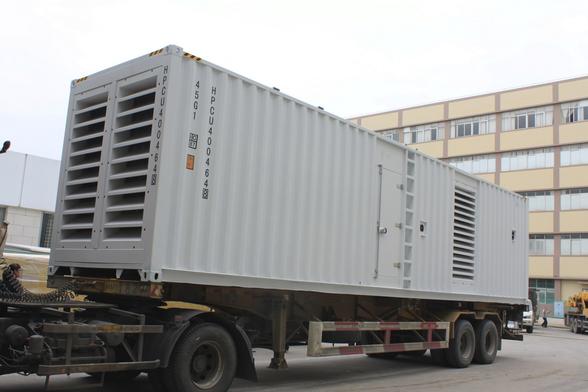

However, rotating generators might need considerable time to startup and shutdown, so in order for a generator to quickly take over, it needs to already be running. But they usually have a minimum power output, and that might be considerable.

sbi Jun 4, 2023

The minimum power of all your generators might well be higher than 40% of your demand.

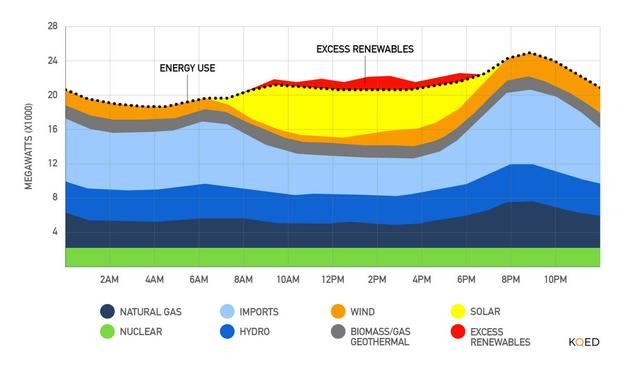

You could curtail the output of your PV panels so that they can never produce more than what your idling generators do not provide for the current demand. But then you throw away power provided by the sun for free ("excess renewables") and use fossil fuel instead.
Or you could turn off some of the generators, thereby risking not having enough generators running in standby to compensate for sudden fluctuations.

sbi Jun 4, 2023

And combustion engines have their ideal operating point. You usually want to run them close to where they are most efficient, and stress and wear is lowest, to minimize their costs. And there's more complications…
So you need to balance a lot of variables and the solution depends on many factors: What are the exact numbers we are talking here? What risks can we take? Is this the power supply for a weekend home? Or for a whole metropolitan area, with hospitals, traffic lights, and subways?

sbi Jun 4, 2023

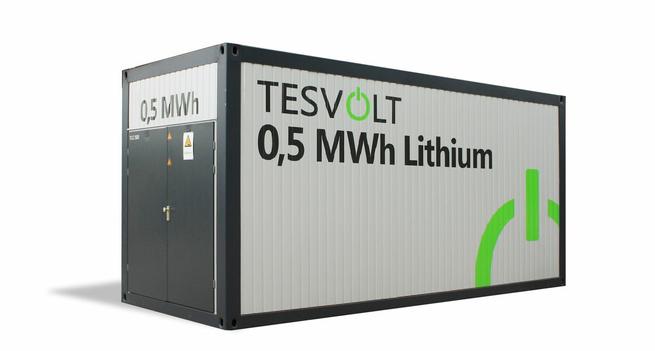

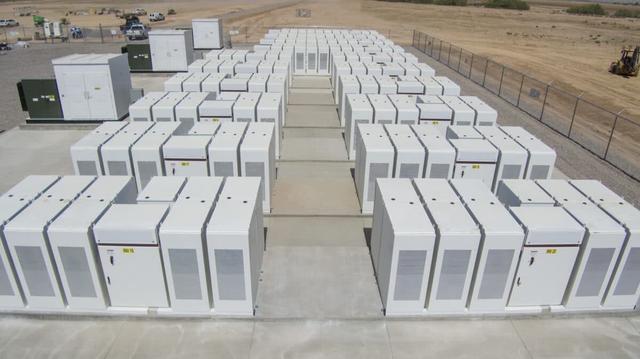

Enter batteries. Here, we use the term for electro-chemical assets which can both consume (charging) and produce (discharging) power. But they charge/discharge DC, so, like with PV power, you need to connect a string of batteries to your (AC) grid through an inverter which converts between AC/DC. The combination of a string of batteries and an inverter is often called an "AC battery" and usually controlled as a singular asset.
Like combustion generators, battery inverters are grid-forming.

sbi Jun 4, 2023

Important properties are their lifetime (energy capacity decrease after a number of charging/discharging cycles), the amount of energy they can store, the power they can charge/discharge with, and their power/energy ratio, the C rate. The properties of the inverter and the battery chemistry are responsible for all these factors. Currently, mostly Lithium ion batteries are connected to grids. They provide high C rates and less energy capacity decrease per charge cycle than other batteries.

sbi Jun 4, 2023

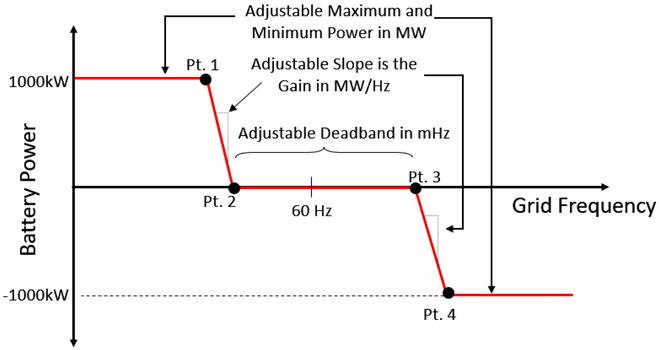

As long as batteries have capacity to charge or discharge, they can do either with any power (up to their maximum power) you need, so they can actually replace your generators, create and maintain a grid, and control their power according to demand. So you can actually turn off those fossil fuel monsters!
And by charging, batteries can provide "negative power". Your minimum idling power is now negative, which means you can suck up excess PV power, and feed it back into the grid later!

sbi Jun 4, 2023

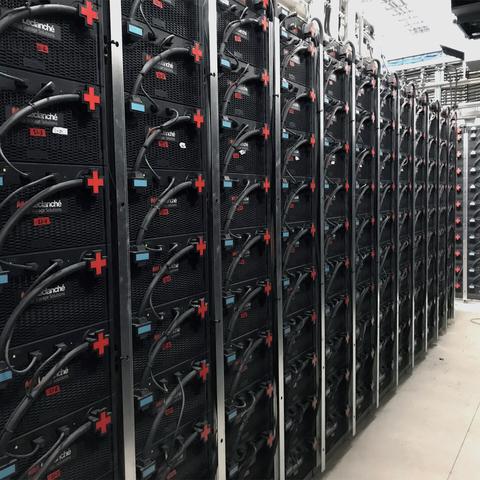

But you cannot charge a fully charged 5MWh battery any further and will only ever get <5MWh out of it. And once discharged, you need electricity to charge it again, rather than just refilling a tank. Plus, batteries have a much lower energy density than fossil fuel. The latter is why most batteries are not well suited for storing considerable amounts of energy: A 10MWh battery plant is the size of a school's gym, while a 1MW diesel generator and 10h worth of fuel easily fit into 1–2 containers.

sbi Jun 4, 2023

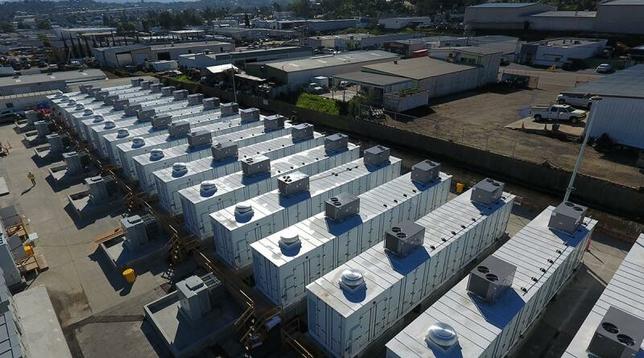

So you need to keep some of your generators as backup because fossil fuel can be stored cheaply and almost without losses. But you get to turn them off for long stretches, significantly reducing fossil fuel use and mechanical wear on them. Hence, by using batteries, you can increase the renewable share in your grid, thereby helping to save this planet. And to top it all off you also save money!
In fact, there are many companies making a profit by selling this technology to other companies.

sbi Jun 4, 2023

Let me reiterate: By putting up wind and PV farms, and hooking up battery power plants to our grid, we could significantly reduce our fossil fuel usage *at a profit* within just a few years. This is proven technology, which has been in the field for *many* years, and comes at a relatively low safety risk. (Compare this to nuclear power plants, which are rather expensive, take a decade or two to build, and take whole nations as backup to get insured because of the risk of a meltdown.)

sbi Jun 4, 2023

For the last 10 years I have been paid for writing code which controls AC batteries (DC batteries plus inverter) or whole grids with fossil fuel, wind, PV, and batteries. I have seen small containers with a single 100kWh battery and 500MWh battery power plants. Some of them support tiny microgrids, like the (backup) power for a single hospital, others are cutting diesel consumption on certain islands down to 20%, and yet others provide primary control to Europe's biggest national power grids.

sbi Jun 4, 2023

Addendum: I simplified things to the point where electrical engineers and battery chemists might feel physical pain. I have not talked about generator and battery chemistry inertia, active/reactive/apparent power, inverters being able to do both grid-forming or -following, genset synchronization, the dark art of black-starting grids, and lots of other stuff. I skipped this partly because I deemed it unnecessary to get the big picture, and partly because I know too little about it.
I apologize.

sbi Jun 5, 2023

Thanks for reading all the way down here!

I am looking for a better job, BTW: https://toot.berlin/@sbi/110491545613352166

sbi (@[email protected])

Yet more stupid management decisions. *sigh* I think I've had enough by now. The nice little startup I once joined was bought 3 years ago, and apparently I'm not cut out for big corporations and their stupidity. It drives me up the wall and makes management resent having to talk to me. I am officially back on the job market now. If you need an experienced C++ programmer please give me a shout. I don't mind coming to a Berlin office once a month, but purely remote is also fine. (Please boost.)

toot.BERLIN

sbi Apr 8, 2024

Because nuclear power keeps being brought up in the replies:
Technically, I know very little about NPPs. AFAIK, they can change their output power only slowly and hence cannot provide primary control. So in this regard they are not different from renewables.

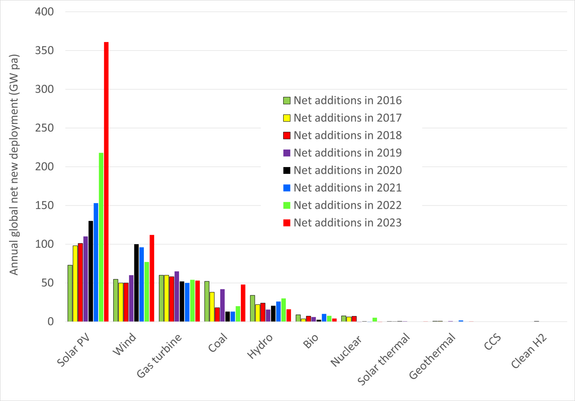

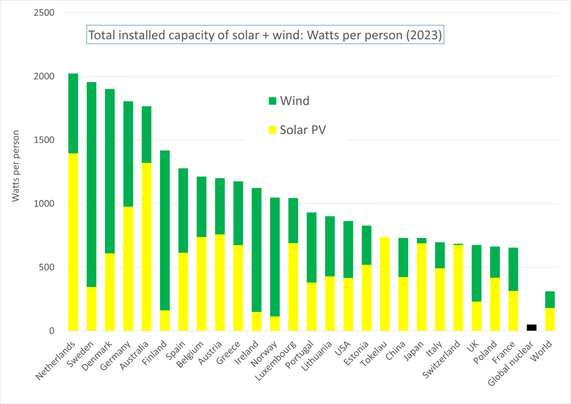

More important, though: nuclear power installation is *way* too slow to compete with renewables. ATM, the PV power installed globally rises more than twice as fast as everything else *combined*. Nuclear is minuscule compared to that.

Kat Valentine Allwell Apr 8, 2024

@sbi I'm planning to shape my life around understanding, installing, and maintaining renewable power.

The true benefit of renewables is not in the large scale, but in the small scale.

Renewables can massively improve community energy resilience.

Renewable energy systems can be deployed at any scale, personal, household, community, state, and improve energy resilience.

Peter Sommerlad Jun 5, 2023

@sbi I wish you the best. Can relate to being fed up with crazy bosses.

I hope I always listened well enough to my people in the past. but a few times in my career I initiated the move, when it became nevessary due to organizational/leadership issues.

wlach Nov 19, 2023

@sbi Great thread! I've become somewhat convinced that a certain amount of overbuilding of renewables is inevitable in the energy transition (https://www.pv-magazine.com/2023/02/15/curtailment-is-not-the-enemy/) but this is an important piece of the puzzle.

Not sure if the available roles would be up your alley, but fwiw my current employer (DERs aka demand response) is hiring for some engineering positions: https://www.voltus.co/jobs -- primarily North America-based but we have some Europeans.

Curtailment is not the enemy

A new report by IEA-PVPS Task 16 looks at the use of "implicit storage" to transform intermittent renewable sources such as solar and wind into firm power generation. It shows that the total cost of the electricity system transformation could be lowered with the optimal use of capacity overbuilding and dynamic curtailment.

pv magazine International

sbi Nov 19, 2023

@wlach Yes, you need to have some overcapacity in renewables if you want a higher penetration. And curtailing is necessary in order to protect your grid. Interesting article!

Thanks for pointing out that job. However, this is all about DB's and financial stuff, whereas I love tweaking dispatch algorithms to get the maximum out of the available assets in a microgrid. :-(

Claudius Link Apr 7, 2024

@sbi
Maybe https://sma.jobs/job/Kassel-Hybrid-C-C%2B%2B-Entwickler-in/1024374301/
I'm happy there
(Sorry for the late reply. Hopefully it isn't needed any more)

C/ C++ Entwickler :in

C/ C++ Entwickler :in

@MyKomment Nov 10, 2024

@sbi
Nicely explained
Good luck with a role too !

Benjamin Dumke-von der Ehe Jun 4, 2023

@sbi Super interesting thread, thank you!

Jeff Atwood Jun 4, 2023

@sbi it's very good!

(moved)Galbinus Caeli 🌯Aug 14, 2023

@sbi one minor quibble. You use "fossil fuel" as a synonym for all fuels. Excess electricity can be used to create synthetic liquid or gaseous fuels for long term storage and feeding turbines.

sbi Aug 14, 2023

@SkipHuffman Yeah, this could be done. ATM, these are mostly concepts, though. The amount of "green hydrogen" available right now it nothing to write home about. It's a future thing. Hopefully.
Primary control with batteries can be done *now*, allows a much higher renewable penetration in existing grids, and significantly reduces the carbon footprint of energy production.

(moved)Galbinus Caeli 🌯Aug 14, 2023

@sbi understood. And I avoided "hydrogen" since it's kind of terrible as a fuel. Sabatier process methane is a lot easier to handle and store. Batteries for first line load balance certainly seem like the best choice.

Bai Shen Nov 17, 2023

@sbi Is there any benefit to using capacitors as well?

sbi Nov 17, 2023

@baishen I dunno. What for?
(As I understand it, capacitors are interesting things in DC, but in AC, there mostly like short-circuiting wires. Am I missing something here?)

Bai Shen Nov 17, 2023

@sbi EE isn't my area of expertise. I had just wondered if they could help with the energy storage and grid smoothing.

Chris Nelder 🤘Apr 7, 2024

@sbi Well then, dive into this episode of @TransitionShow and worry about many of the issues in your thread no more. https://pca.st/episode/40f90684-ae24-4850-8c77-f6170bfef05a

Grid-forming Inverters - The Energy Transition Show with Chris Nelder (Full Episodes)

How can inverter-based resources integrate with synchronous generators as renewables become dominant on power grids? And is system inertia even necessary?

Chris Nelder 🤘Apr 7, 2024

@sbi And then this one https://pca.st/episode/51752914-1e9d-45da-a99d-8439b1a43740

Getting to a 100% Clean Grid - The Energy Transition Show with Chris Nelder (Full Episodes)

What are some of the pathways to a 100% clean power grid, and how can we meet the last 10% of the need even through winter weeks of low solar and wind output?

sbi Apr 7, 2024

@chrisnelder @TransitionShow Read the blurb again! It says "through _grid-forming_ inverters". Battery inverters are grid-forming, but PV inverters aren't, they are _grid-following_. So this seems to say exactly what I am saying: stabilize your grid without rotating masses by using batteries.

F4GRX SÃ©bastien 6d ago

@sbi but you are not apologizing for your gigantic anti-nuclear bias which is very visible. That is disappointing.

Edit: ah you're from Germany that explains things. Meh.

Corsac Apr 7, 2024

@sbi hmh to be fair nuclear power has also been here for decades. And with battery density also come higher risks of electrical fire, which is pretty scary.

sbi Apr 7, 2024

@corsac I'd rather have a hundred local fires where lithium batteries burn indistinguishably, than one more Fukushima.
That, however, is irrelevant since we cannot install enough nuclear power in time anyway. Building a NPP from scratch takes 20 years nowadays. Until we will have increased the current amount of installed nuclear power by a significant factor (thereby increasing the chance of another disastrous incident, BTW), it will be too late to avert the catastrophe we are heading into.

Corsac Apr 8, 2024

@sbi except it’s not an either: nuclear power and batteries don't really play the same role in the grid, are they? Anyway I wasn’t trying to convince you, and if we’re on the "what I prefer" trend we’re out of the engineering thread and I don’t think arguing there makes much sense.

sbi Apr 8, 2024

Gasper Zejn Apr 7, 2024

@sbi I think this is really underrated.

Batteries can adjust for 200% of rated power, a gas turbine for 90%, and a local coal plant for ~60%.

sbi Apr 7, 2024

@hruske Yes! (Note that, according to what I know, gas turbines are too slow in stepping up and down to do primary response beyond of what their inertia provides.)

Shrirang Kahale Apr 7, 2024

@sbi There's also this which can be used https://en.wikipedia.org/wiki/Pumped-storage_hydroelectricity

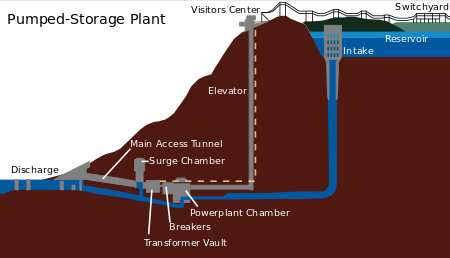

Which is a "battery" that stores the potential energy which can be converted back to electricity when needed
