I finally have a good enough Eurorack version of my picoDexed.

https://diyelectromusic.com/2025/05/03/picodexed-minidexed-eurorack/

This is using a neat pico-to-zero adaptor from bablokb, released on Github, which allows me to use my existing MiniDexed PCBs and module with no other hardware changes.

#picoDexed #RaspberryPiPico #EuroRack #SynthDIY

picoDexed + MiniDexed EuroRack

Since attempting my picoDexed + StackyPi + MiniDexed EuroRack build and failing, I’ve found another Pico-to-Zero board that is provided as open source, so I’ve had some made.

This post details how to get that running with my MiniDexed Zero Eurorack module.

Warning! I strongly recommend using old or second hand equipment for your experiments.  I am not responsible for any damage to expensive instruments!

If you are new to microcontrollers and single board computers, see the Getting Started pages.

Pi Zero RP2040s

As mentioned last time I found a number of options for a RP2040 based dev board in a Raspberry Pi Zero form factor. But this post is about this one:

• https://github.com/bablokb/pcb-pico-pi-base

It is fairly simple to build. It just requires a Pico and GPIO header pins.

There is an option for pull-ups on the I2C bus, but I’ve not bothered with them here. There is also a breakout header for a reset switch if required (it will support two sizes of switch by the looks of things).

Mapping over to MiniDexed/RPi Zero

The pinout is slightly different to the Stacky-pi, so here is an updated table of the GPIO mappings and which are required to be used with my MiniDexed board.

The two key problem areas will be the I2S interface and encoder, which both require consecutive GPIO pins for the PIO code to do its magic.

The encoder should be fine – pins RE A and RE B map onto the Pico’s GP11 and 12.

The I2S interface might be ok – with a BCLK on GP18, it will be expecting LCLK on GP19. Data on GP21 should be ok.

Unlike the previous attempt, I’m hopeful I can just get this running ok with the correct pin mappings…

Changing I2C Bus and UARTs

Unlike the first attempt, I2C is mapped onto GP2 and GP3 which is what I was using in the original picoDexed. So that is all fine, multiplexed onto the I2C bus 1.

There is an issue with the UART however as picoDexed uses the following by default:

• UART 0 – GP 0,1 – Serial debug
• UART 1 – GP 4,5 – MIDI

I can swap these over so that UART0 (GP0,1) is MIDI, but that has to be matched with a change in the debug serial port too. But unfortunately, as far as I can see, that has to be configured in the master CMakeLists.txt file (as I talked about in Part 3).

New picoDexed GPIO Configuration

Given the above, the following new GPIO pins should be defined in config.h:

In addition to this, to keep using the debug output requires the following lines adding to ‘target_compile_definitions’ in CMakeLists.txt.

I’ve added a separate configuration file (config-ER.h) in the repository to allow this version to be built, but the CMakelists.txt change above has not been included.

I’ve also added a picodexed-v0.03-ER.uf2 file in the build area which can be downloaded and installed directly onto the Pico to provide the above configuration ready to go.

Bringing it all together…

The nice thing about this PCB is that I can map everything nicely over to the pinouts used with my MiniDexed EuroRack PCB meaning that once the Pico has the custom firmware installed, it will just plug in and work and no hardware changes or patching is required at all!

I was slightly concerned that the USB port of the Pico might clash with the two installed electrolytic capacitors on the MiniDexed PCB, but in my case I can just about get away with it!

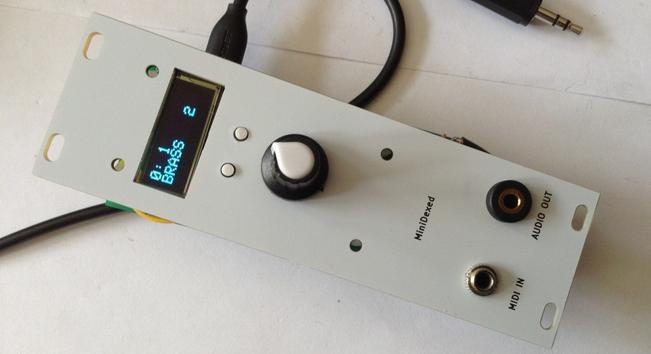

Here is the final assembled unit.

Closing Thoughts

I finally have my Eurorack picoDexed which is pretty neat. Big thanks to bablokb for putting that PCB up online. That saved me a job. And it was particularly nice that things like assuming consecutive pins for the I2S mapping was included as that made using the PIO I2S code a lot easier.

I’d like to see what the power usage is like now as I’m really after a lower power Dexed engine compared to the full Zero version.

Naturally at some point I might still make my own picoDexed Eurorack PCB, but this is a pretty good solution as far as I’m concerned, so that wouldn’t really add much for me now.

Kevin

#midi #minidexed #pcb #picodexed #raspberryPiPico

I thought this would be an easy fix - using a Pi Zero-format RP2040 board in my MiniDexed EuroRack module...

... but it ended up an afternoon of frustration and unfortunately I still can't get it making sound or booting reliably.

It does look cool though :)

Anyone else have any experience of these Stacky-Pi "RP2040 on a Pi Zero shaped PCB" boards?

https://diyelectromusic.com/2025/04/12/picodexed-stackypi-minidexed-eurorack/

#PicoDexed #MIDI #StackyPi #MakerFail

picoDexed + StackyPi + MiniDexed EuroRack

Now that I have a picoDexed with a display an encoder it is very tempting to create a version of my MiniDexed EuroRack PCB for it.

But as a short diversion, there is another possibility – can I use a RP2040 that is already in a Pi Zero form factor with my existing MiniDexed EuroRack PCB Design?

Spoilers: The answer, it turns out, is no. Something is not quite letting this work for me – it’s close, but I’m just not there yet. Here is another attempt where it works: picoDexed + MiniDexed EuroRack.

Warning! I strongly recommend using old or second hand equipment for your experiments.  I am not responsible for any damage to expensive instruments!

If you are new to microcontrollers and single board computers, see the Getting Started pages.

Pi Zero RP2040s

I’m aware of a couple of products that were available to put a RP2040 into a Raspberry Pi Zero form factor:

• Red Robots Pico to Zero adaptor.
• Stacky-Pi by SB Components.
• Waveshare RP2040 PiZero.
• Pico to Pi HAT.
• Update: I’ve just found the following open source design: https://github.com/bablokb/pcb-pico-pi-base – details of how I’ve used this can be found here: picoDexed + MiniDexed EuroRack

The first two were available on Tindie and other places, and as far as I can see, both appear to use the same mapping of RP2040 GPIO to RPi 40-pin header. The Red Robot board doesn’t seem to be available anymore, and whilst there are a few Stacky-Pis on Tindie, in most places it seems to be discontinued.

I don’t know anything about the Waveshare or Pico to Pi, but might grab myself one of each.

I’ll give the open source design a try (and possibly save me designing my own…).

As can be seen above, the Red Robots board is designed to take an actual Pico, whereas the Stacky-Pi is its own board with an on-board RP2040.

Mapping over to MiniDexed/RPi Zero

The following table lists the RPi GPIO connections I used in my MiniDexed board and how they map onto the RP2040 using the above boards.

The two key problem areas will be the I2S interface and encoder, which both require consecutive GPIO pins for the PIO code to do its magic.

The encoder should be fine – pins RE A and RE B map onto the Pico’s GP3 and 4.

The I2S interface is going to be tricky, as with a BCLK on GP28, it will be expecting LCLK on GP29 rather than the GP13 it is currently routed to on the board. Quite apart from the fact that GP29 isn’t even broken out on a Pico.

The obvious thing to explore is if the BCLK connection can be routed through to GP13 on the RPi header, or GP12 for the RP2040. That would be handy if so.

Connecting into GP13 should be possible as this pin is currently unconnected on the MiniDexed PCB. It will involve cutting a track however for GP18. The existing track and its new destination is highlighted below in blue.

Changing I2C Bus and UARTs

There is one other complication however. The picoDexed configuration has the ssd1306 connected to GP2 and GP3 which are multiplexed onto the I2C bus 1.

The adaptor configuration maps SDA/SCL onto GP20/21 which are multiplexed onto I2C bus 0. I updated the code to support changing I2C bus in addition to changing IO pins. Arguably, I should probably have supported this in the first place anyway…

A similar issue exists for the UART, but unfortunately that isn’t quite so easy to change.

I can take a similar approach to the above for the Serial MIDI link – allowing it to use either UART0 or UART1.

But that has to be matched with a change in the debug serial port too. But unfortunately, as far as I can see, that has to be configured in the master CMakeLists.txt file (as I talked about in Part 3).

New picoDexed GPIO Configuration

Given the above, the following new GPIO pins should be defined in config.h:

In addition to this, to keep using the debug output requires the following lines adding to ‘target_compile_definitions’ in CMakeLists.txt.

Bringing it all together…

I decided to hack on my (already pretty hacked) prototype MiniDexed EuroRack board and cut and patch the trace to the DAC as described above.

The complication being the GPIO header pin I need to get to is under the OLED display, but I could just about do it – see below.

It doesn’t work. Unfortunately.

First of, I have to say, I’ve not found the Stacky-Pi particularly reliable. It took me ages to get it to successfully boot up into accepting a uf2 file, and once installed, I was struggling to get it to reliably boot and run.

Weirdly it seems to work best when I have a finger on the flash chip which seems to imply some board layout/grounding/stability issues to me…

From what I can see, the display, MIDI, serial debug and encoder are working fine though once it does get up and running.

But I just can’t get any reliable sound out of the thing at all. I managed sound once, but that was it. It is all quiet unreliable for me – far too unreliable to be useful.

Shame, as it actually looks really cool!

Closing Thoughts

It has been a frustrating afternoon. I’m having to leave this one here for now as there are just too many unknowns at the moment to really get to the bottom of what is going on.

I thought the Stacky-Pi would be a quick and easy fix, but haven’t ever used them before, and the fact that they are discontinued and there is very little information that I can find online about them makes me think perhaps they aren’t worth persevering with.

So I have a number of options now:

• Try a Waveshare RP2040 PiZero. As there are a lot more peripherals, I’m not sure how much what I’m doing will translate across, to be honest, it cost wise, it’s essentially the same as a Zero itself, which I know “just works”.
• Do I design my own Pico to RPI GPIO converter board to let me use that with my existing MiniDexed EuroRack design? Tempting and probably not that hard.
  • Update: I’ve since found (and ordered) https://github.com/bablokb/pcb-pico-pi-base
    • Update 2: And it works! picoDexed + MiniDexed EuroRack
• Do I attempt to do something with the Pico version of my EuroRack 6HP MCU Experimenter Module? Sounds initially easy but I suspect forcing a MiniDexed into this module eventually will hit other at the moment unforeseen issues.
• Or do I just go for it and put together a special picoDexed EuroRack module itself.

I might have one more go with the Stacky-Pi. I haven’t quite given up. I’ll have to do some research – maybe sprinkling a few capacitors around the board or some updated GND connections might help. Answers on a postcard (or in the comments) if you have any ideas.

I’ll get a Waveshare RP2040 PiZero on order, as I’ve had quite a bit of success with their own “Zero” miniature boards so far, and now I’d like it know if it would work 🙂

To be continued…

Kevin

#define #midi #minidexed #picodexed #raspberryPiPico #StackyPi

I've updated my #picoDexed to include a basic encoder/display UI and updated to the latest Pico SDK.

This is a port of Synth_Dexed to the Raspberry Pi PIco.

I also thought it was probably about time I actually documented the basic architecture :)

https://diyelectromusic.com/2025/04/12/raspberry-pi-pico-synth_dexed-revisited/

#MIDI #SynthDIY #DX7 #Synth_Dexed

Raspberry Pi Pico Synth_Dexed – Revisited

I thought it was time I took another look at my Raspberry Pi Pico Synth_Dexed. I’ve a couple of main aims with coming back to this project:

• Update the build for the latest Pico SDK and Synth_Dexed.
• See what is involved in getting it running on an RP2350.
• See if a simple I2C display can be added and possibly an encoder or other controls.
• Actually document the architecture!

The current hardware is described in detail in Raspberry Pi Pico Synth_Dexed? – Part 5 and supports serial and USB MIDI, I2S or PWM audio output, voice selection (over MIDI) and up to 16 note polyphony if using an overclocked (to 250MHz) RP2040 based Pico and lower sample rate.

https://makertube.net/w/tY1u9qFz85NprRYPmtdvEj

Warning! I strongly recommend using old or second hand equipment for your experiments.  I am not responsible for any damage to expensive instruments!

If you are new to microcontrollers, see the Getting Started pages.

Core Updates

Since I first put the PicoDexed together, V2 of the Raspberry Pi Pico SDK has been released. There aren’t many changes, but as noted by okyeron, an additional include file is required in main.c.

But as I was updating things, I also found a number of changes to Synth_Dexed too that broke the build. The most irritating of which was including a definition of DEXED_SAMPLE_RATE which now clashes with my own definition. I’ve gone through and changed a number of DEXED_ definitions to PICODEXED_ to avoid that in the future too.

A few other changes have also been introduced, which have necessitated an update to my diff file for Synth_Dexed/src/Dexed.cpp.

But on the whole, there was nothing major in the end. This has all been uploaded to GitHub as a v0.02.

PicoDexed Architecture

I had to go back and attempt to reacquaint myself with what I’d done last time, so as part of that I’ve drawn out a rough architecture diagram as shown below.

This expands on the design notes I’ve already written up in Part 3.

The key principles are as follows:

• Core 0 is used for all IO and is largely driven by MIDI events received over serial or USB.
• Core 1 is used for all audio processing and is run continually using the Pico’s audio driver (either I2S or PWM) to use a callback function to fill a buffer with samples to be played. The samples come from Synth_Dexed.
• All synthesis parameters (including keyup/down events for playing notes) is handled within picoDexed in response to the MIDIMessageHandler receiving MIDI messages from the MIDIParser.

Looking at this, I should be able to include some additional IO handling in the main Process loop of picoDexed that runs on core 0.

I2C Displays

Hunting around for libraries to support an SSD1306 display with the Pico SDK, so far I’ve found four options:

• pico-examples – has an example app that can put simple text or an image on an SSD1306. Note this isn’t created as a library that could be used however – it is all in a single example.
• sharkis/pico-ssd1306 – what appears to be a couple of files that can be included in your own code. It is pretty low-level with minimal options for any text or graphics and there is no documentation or licensing information as far as I can see.
• daschr/pico-ssd1306 – a higher level interface that provides basic graphics primitives and simple font support. MIT license. Again a couple of files to include in your project.
• Harbys/pico-ssd1306 – the most complete support I’ve found so far. What I’d consider to be a “proper” library with what seems to be good documentation and a wide range of usage options.

Whilst tempted to go with the “proper” library, it might be a little over the top for what I really need right now, and I don’t want to include an additional third-party GitHub link in my code at this time.

So I’m going to try daschr’s pico-ssd1306 as I can just grab the files, maintain the license information, and include it directly into my code.

To include this code in the build I’ve done the following:

• Created a libs area and copied in the files: ssd1306.c, ssd1306.h, font.h
• Added the c file to the CMakeLists.txt file.
• Added libs to the include path.
• Added hardware_i2c as an included library.

My new CMakeLists.txt file now looks as follows.

The most basic usage is as follows:

This initialises I2C bus 1 on GPIO 2 and 3 for device at address 0x3C.

Rotary Encoder

Taking the same approach with a rotary encoder, I’ve so far found the following as candidates for use:

• matteomeneghetti/pico-quadrature-encoder – provides a C++ API and uses PIO on two consecutive GPIO pins.
• jamon/pi-pico-pio-quadrature-encoder – simpler, and slightly lower level, PIO implementation only.
• GitJer/Some_RPI-Pico_stuff – example code of how to drive an encoder, again using PIO.
• pimoroni/pimoroni-pico/tree/encoder-pio/drivers/encoder-pio – Pimoroni driver for encoders using PIO.

The first is a more complete library, the second more “bare bones”. The last seems more of an example rather than a reusable object.

I was initially inclined towards the second which seemed likely to be easier to integrate into my own code, but as it was pretty low level and required a fair bit of glue around it.

Eventually I actually opted for something based on “GitJer”‘s example. There is a full explanation of how the code works here: https://github.com/GitJer/Some_RPI-Pico_stuff/tree/main/Rotary_encoder

I’ve had to change how voices are selected slightly to ensure the display, MIDI BANKSEL/PC and encoder can stay reasonably intuitive.

I’ve used the following logic:

• IF BANKSEL/PC both received then treat as Bank=0-7; Voice=0-31.
• IF PC on its own, then treat as Voice=0-127 across Banks 0 to 3.
• IF UI changes voices, then treat as Bank=0-7; Voice=0-31.

In each case the display shows the current bank and voice number in 0-7/0-31 format.

So just to be clear, MIDI Program Select on its own now (so 0..128) will always only select from the first four banks of 32 voices each. This is a change from the previous version which would allow PC to select based on the currently selected banks and the three following banks.

The encoder will automatically switch from one bank to the next, and wrap around at either end, so is able to select all voices across all installed banks.

Raspberry Pi Pico PIO Use

One issue to keep an eye on is PIO state-machine use.

I’m still getting my head around PIO (I’ve just not really devoted any significant time to figuring it out yet) but as I understand things, each PIO instance has a 32 instruction memory which is shared across four state machines.

So if there are several programmes to run and they all combined fit in the 32 instruction memory, then they could all use the same PIO instance whilst being attached to different state machines.

But if there are two vastly different programs to be running then it may be that they have to be split across the two PIO instances. But there can still be up to four instance of each program, one for each state machine in a PIO instance.

The I2S audio driver uses PIO to implement I2S. As far as I can see which PIO to use is determined by the following definitions:

If PICO_AUDIO_PIO is not defined then I2S_PIO and PWM_PIO are set to 0, which is then turned into “pio0” via the following in i2s_audio.c:

Which later on then uses the following to claim a free statemachine as part of audio_i2s_setup():

I don’t know for certain, but it appears to me that the I2S PIO program is quite complete and so highly likely to fill the 32 word instruction memory.

On that basis, then the rotary encoder PIO program will have to use PIO instance 1 for its own code.

Summary of PIO use:

Update GPIO Usage

Expanding now on the table from Part 5, updated with the above, now gives the following GPIO usage map.

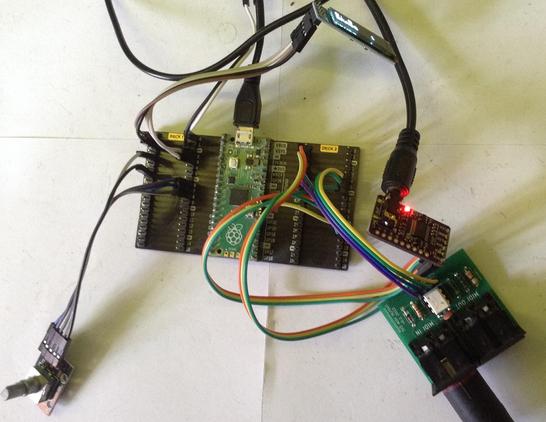

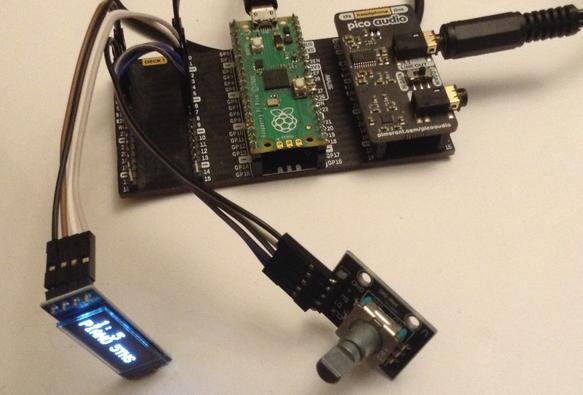

PicoDexed on a Breadboard

Closing Thoughts

I feel like this is really starting to get interesting now. I have a few choices to make now – do I attempt to go for a more complete menu system similar to MiniDexed, or do I stay with MIDI control and basic voice selection as it is now?

Future enhancements might include:

• It will be interesting to see what supporting the RP2350 could bring.
• It would be useful to be able to set the MIDI channel – either in menu, or perhaps more ideally in hardware somehow (e.g. switches, resistors on an ADC, etc).
• Act as a USB host for USB MIDI devices.

In the video I’ve hooked it up to a serial MIDI controller and am just cycling through some of the voices showing how the UI works.

Kevin

#dac #dx7 #i2c #midi #picodexed #raspberryPiPico #rotaryEncoder #synthDexed

PicoDexed UI and Voice Demonstration

https://makertube.net/w/tY1u9qFz85NprRYPmtdvEj

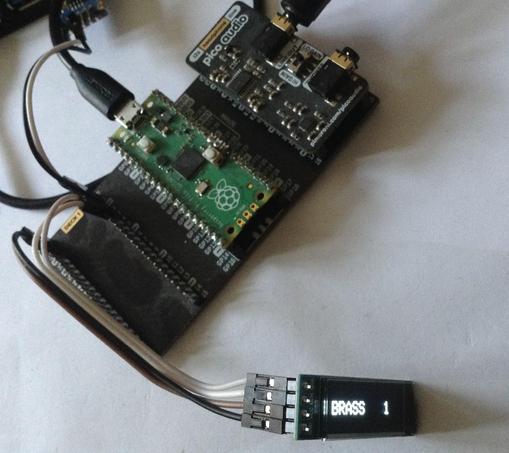

My picoDexed now has very rudimentary ssd1306 OLED display support.

All it shows is voice name at the moment.
