johnny martyr rss (unofficial)Shining a Light on Bright-Line Viewfinders
Over the years, many different manufacturers have offered many different types of accessory viewfinders that have taken on numerous forms. I have tried only a handful but am pretty committed to what are known as as "bright-line" accessory viewfinders. Unlike early viewfinders that consist only of wire frames of appropriate sizes or even simple optical viewfinders that contain a magnifying lens element, bright-line finders are tiny optical treasures.
Dutch designer L.E.W. Van Albada came up with bright-line viewfinders in the early 1930's while working with Zeiss. He developed several types of viewfinders that were made both as accessories and built-into Contax cameras of the period. Albada's bright-line finders contain multiple glass lens elements in order to replicate the focal length of the taking lens. They also feature a concave mirror that focuses light onto printed or etched frame-lines. The result is viewfinder that is often at least as bright, or brighter than most newer built-in finders, as well as frame-lines that are projected onto the scene and are easily visible wherever there is ambient light. The latter being of particularly important historical note.
According to the Leica Accessories Guide, bright-line or Albada-type viewfinders were originally called sports finders due to the benefit of being able to see a subject enter the frame-lines within the viewfinder. Prior to the Leica SBOOI of 1951, bright-line viewfinders were just one of many types of finder designs. But Leica made an entire line of them with similar encasements that solidified bright-line finders as a particular accessory in and of themselves. Indeed, the Leica IIIg and M3 cameras contain the same bright-line viewfinder design, built-in.
Leica's adoption of Albada's viewfinder cemented the projected frame-line feature as standard in all subsequent rangefinder camera designs and ignited competition for brightest viewfinder as a benchmark for assessing the quality of a camera.
Each accessory bright-line finder is dedicated to just one, or sometimes two, focal lengths. This makes them less versatile than simple, multiple length wire frame finders or finders that contain basic magnifying optics mounted in a turret. If you choose a set of bright-line finders in favor of a turret finder, you are committing yourself to changing finders out and storing them appropriately each time you change lenses. Or are you?
For me, I typically only use one or two different lenses per body during a shoot. Therefore, I don't make a habit of swapping out my bright-line viewfinders mid-shoot, I simply use the built-in finder and leave the accessory finder atop the body at all times. So for example, my M6 TTL supports multiple frame-lines. I use one of these built-in lengths, such as 50 or 90 but I leave my 15mm bright-line finder in the accessory shoe, ready for whenever I mount my 15mm lens. On my 1930 Leica, I often prefer to use the 50mm bright-line SBOOI instead of the built-in finder and keep it mounted at most times.
If you like to swap lenses more frequently than I do, or use multiple lengths that require an accessory finder, you may want to get one of those turret finders. But personally, despite being what I consider a pretty fast photographer, I prefer the viewing quality and smaller physical size of bright-line finders than the speed of a larger turret finder, because my workflow doesn't require anything faster.
I particularly enjoyed using my Voigtländer 90mm bright-line viewfinder recently while practicing street photography. The ability to see slightly outside of the frame-lines and to concentrate strictly on composition made shooting this genre with this set-up fun and effective.
I wrote about bright-line finders a few years ago and got a number of questions about them that I thought deserved another blog. Below are some topics that came up - I hope you find my thoughts on each, useful. And if you have more, I'd love to hear them in the comments!
LEICA vs VOIGTLÄNDER vs ZEISS
I'm going to concentrate on just two noteworthy manufacturers of bright-line accessory viewfinders as they're discussed here; Leica and Cosina. Nikon of course made their own compliment of viewfinders and some Canon viewfinders even feature automatic parallax correction when used with some Canon rangefinders. I'm going to exclude these brands simpIy because I find that they are less available I don't use these brand cameras, though they also appear to be very nice. I'm also not going to include those early Zeiss bright-line viewfinders that Mr. Albada originally designed because each model does not fit into a model line as we know them today. No disrespect to the originators!
Cosina, of course makes products under the Voigtländer namesake and for Zeiss. Leica really embraced bright-line finders in the 1950's and they still make several which have a rectangular rather than the classic round silhouette and are a bit larger. Cosina began selling bright-line finders in the early 2000's. Voigtländer issued plastic finders that were black and metal finders that were a conventional satin silver chrome or gloss black paint. Modern Zeiss finders have a squared off housing and came only in black painted metal. Modern Leica bright-line finders are squared silver chrome or black painted metal.
I prefer the metal finders because I don't trust the rigidity of the plastic "foot" of the plastic finders. And practical concerns aside, I just don't like the idea of plastic. I like classic, metal and manual cameras and don't have any desire to top them off with glass encased in cheap, modern plastic. I appreciate the quality of paint filled etching on the metal finders and their general feel and cosmetic look. Sorry if that makes me vain or superficial! [ UPDATE: several readers have noted that they prefer plastic viewfinders because the metal versions scratch their eyeglasses. I don 't personally press my eyeglasses directly against my viewfinders so I don't find this to be a problem. I have some other solutions for glasses wearers too though, it may warrant a whole other blog!]
Where I'm not superficial though, is on brand. I believe vintage Leica and modern Voigtländer metal barreled bright-line finders are of totally equivalent build quality. And both are beautiful, jewel-like masterpieces of design and execution. Since neither company continues to sell these style finders (Leica's current bright-line finders support only a few focal lengths and are larger), we're not supporting or hurting either company by purchasing these products.
One difference between brands is that the Leica finders were mostly made during the 1950's vs Cosina being more contemporary. So some Leica bright-line finders have either been heavily used or improperly stored for decades and will require service. I have yet to see any examples that exhibit de-silvering of the mirror but it would only follow that this should be a concern. And particularly when choosing longer focal lengths such as 90 and 135mm that feature parallax correction, these finders contain a small, simple mechanism and vintage copies will likely require service. Voigtländer finders appeared in the early 2000's and were made for about ten years. So even the most heavily used and poorly stored Voigt's are likely to be in better shape than similarly used/stored 70 year old Leica's, all things being equal.
Zeiss viewfinders seem to sell for $300+, used or new. Leica finders, of which there are few modern models, sell for $900+ new. So that leaves now-discontinued Voigtländer and vintage Leica finders for reasonable prices. "Reasonable" is still in the $50-$150 range used, depending on focal length, condition and included packaging/accessories. There are some rarer finders such as the Voigtländer 40mm or Leica 85mm that command higher-than-average prices; more in the $250+ area. Since I've been purchasing and using bright-line finders though, for about ten years, they appear to at least hold their value. Used prices on metal Voigtländer finders seem to equal vintage Leica. I guess that if you wanted the look/specific function of the current Leica M type bright-line finders, the Zeiss versions provide an economical alternative. But even if you don't care about price, there are just more focal length options available for vintage Leica and Voigtländer than modern Leica and Zeiss.
FOCAL LENGTHS AND MODELS
I would like to catalog every single focal length bright-line viewfinder that each manufacturer has put out but I'm sure there will always be something missing. I'm going to list what I know from my research and experience and hope that I get most of them! If you know of others, please go ahead and let me know in the comments!
Leica's vintage bright-line finders were available in the following lengths and of course, correspond to some silly five letter words: 21mm (SBKOO), 28mm (SLOOZ), 35mm (SBLOO), 50mm (SBOOI), 85mm (SGOOD), 90mm (SGVOO) and 135mm (SHOOC). These were all brass (I presume brass) and finished in satin chrome with black and red paint-filled etched text. Earlier vintage Leica bright-line finders are marked in cm instead of mm and all versions that I've seen are marked in both metric and standard focus measurement using different colors of paint. Earlier Leica finders came in classic red boxes with gold lettering. Newer copies were sold in beige boxes with printed graphics. Leica's current bright-line finders are available in just 18mm (12023), 21mm (12002) and 24mm (12026) with a solid milled brass enclosure and finished in satin chrome or black paint with a rubber eyepiece. They feature a printed Leica logo but etched and paint-filled focal length text. In the 1980's the 21mm 12002 finder was also made in black plastic and there was a similarly constructed 28mm (12017) for some time that is no longer available new.
Voigtländer finders were sold both plastic barrel (Version I) and metal barrel (Version II) finders. I am not 100% certain that each of the following lengths were available in both plastic and metal and which metal were available in black or chrome, nor do I feel it necessary to go into specific years of production for each model. But sizes by Voigtländer included 10mm, 12mm, 15mm, 21mm, 28mm, 35mm, 40mm, 50mm, 75mm, 90mm, and 135mm. Voigtlander also made a 12mm D 1.5x finder for the Epson RD-1 and it's crop-sensor, as well a mini versions of the 28/35mm finders and a Heliar 101 anniversary 50mm finder that is not 1:1. All plastic barreled finders were black in color with the logo and text printed on. Voigt metal finders came in satin chrome or black paint finish. The Voigt satin chrome very closely matches vintage Leica in terms of color and weight. I don't know if the barrels themselves are made of brass or something cheaper but I can report that as the paint has worn off my Voigt 15mm finder, it has revealed a brass-colored metal. 12 and 21mm Voigts have two-piece housings with a silver chrome front bezel and the rear hemisphere is finished in black crinkle paint. The 12mm finder has no frame-lines and technically is not among Albada's design but does contain four elements of glass! The only way to tell an older Voigt finder apart from a newer one is the box. Older boxes were green and newer ones are black.
[ UPDATE: Thanks to Dagmar E. Baechli for providing image above and the following clarifications: "The 15 and 25mm black plastic don‘t have bright frame lines. Neither do the two big 12mm metal." He also pointed out that the Fujifilm VF-X21 bright-line finder which shows 21/28mm frame-lines also appears to have been made by Cosina.]
Zeiss finders were designed to follow the styling of modern Leica finders and are rectangular rather than round. They are also made of an unlisted type of metal and feature a raised blue Zeiss logo as well as etched and paint-filled focal distance text. Zeiss finders have been produced in the following lengths: 18mm, 21mm, 25/28mm, and 35mm.
CARE AND USE
This was probably the Number One topic of direct messaged question that I got the last time I posted about bright-line finders. People are nervous about how to store and protect a hunk of expensive, delicate glass sitting atop their camera or tossing around in their camera bag.
As I previously noted, I typically keep my finders mounted to the cameras, even when not actively using them. Certainly I leave them at home if I don't expect to use them at all but during a shoot where I'm using both 50 and 90mm lenses, I keep the 90mm viewfinder mounted while shooting the 50 and then I don't have to make any further changes to the rig when I switch to my 90 or back to the 50. Doing this not only allows for faster use but represents that much less time that the viewfinder needs to be tucked away and safely stored in ones camera bag.
When shooting my 1930 Leica III, I seldom remove the 50mm SBOOI finder and this is my daily or near daily carry rig. I have been using it this way for about three years and, knock on wood, the glass has yet to be damaged. I guess that concerns over outward facing glass is always a concern with rangefinders. But unless one is shooting in harsh conditions, where you may prefer an SLR anyway, I don't worry much about adding yet more outward facing glass to my rangefinder!
Leica bright-line finders sometimes come with an accessory leather button case for storage. I personally wouldn't recommend using these. Leather fitted cases, while attractive and properly vintage, seem to have a habit of causing oxidation or chemical reactions with chrome and painted surfaces. I tend to see vintage Leica finders on eBay that have a turquoise corrosion around the black paint part of the finder. I have seen this crud appear on vintage cameras that were stored in their case and likely in humid conditions also. So I just don't see any value in the risk. But admittedly I don't know or care to research the science on this. Your mileage my differ!
Voigtländers came in a blue velveteen pouch with a gold "V" printed on it. They open and close via a red draw-string. I keep Leica finders in similar jeweler's drawstring bags that my wife's ear rings etc. have come in. These are great for tossing into ones camera bag and keeping the bright-line finders safe and clean.
When I purchased a 135mm Leica finder recently, I had to use a cotton swab to apply lighter fluid to the focus ring in order to free up its movement. I'll still need to mail this out for service to ensure that it is properly lubricated long-term. But I wanted to mention a safe way to free these vintage finders up in case you com across one also. Thanks to Jay Javier, Leica photographer and professional repair technician for this tip.
Finally, I should note that not all bright-line finders fit all accessory shoes perfectly. I place a little bit of cardboard from a film box on the accessory shoe of my 1930 Leica in order to secure a tight fit. For the cost of these little guys, you certainly don't want them coming lose and disappearing!
CONCLUSION
Built-in and accessory viewfinders have evolved to offer light years more comprehensive information and feedback to us. Today's viewfinders are often either fully electronic or hybrid optical/electronic previews of scenes. They no longer let us see our subjects and scenes directly but, have turned into representations and speculations by, of and for computers. Bright-line viewfinders offer photographers something that has become an unusual luxury; a gorgeous, unencumbered view of the scenes that we're photographing. Sometimes you just don't need to see exposure scales, focus points and confirmation, to know if a flash is ready, how much power is left on your battery or contrast in a scene.
Believe it or not, there are times that all you want or need to do is see your subject!
And this is where one comes to appreciate bright-line viewfinders - beautifully crafted devices that, quite literally, get the camera out of the photographer's way.
Thanks to L.E.W. Van Albada for creating these little gems and thanks to you for reading. Happy shooting!
_Follow, Favorite, Like, Add, Insult, ContactJohnny Martyr _
#accessoryreviews #filmphotography #leica #martyrmusings #reviews #tipstricksadvice #voigtlander #10mm #12mm #135cm #135mm #15mm #21mm #28mm #35cm #35mm #40mm #50mm #5cm #75mm #85mm #90mm #9cm #accessoryviewfinder #albada #brass #brightlineviewfinder #cosina #film #filmcameras #frameline #framelines #glass #lewvanalbada #mirror #opticalviewfinder #optics #photography #projectedframelines #rangefinder #rangefinderaccessory #sbooi #shooc #spiegelsucher #sucher #viewfinder #voigtlaender #voigtländer #zeiss
Shining a Light on Bright-Line Viewfinders
Over the years, many different manufacturers have offered many different types of accessory viewfinders that have taken on numerous forms. I have tried only a handful but am pretty committed to what are known as as "bright-line" accessory viewfinders. Unlike early viewfinders that consist only of wire frames of appropriate sizes or even simple optical viewfinders that contain a magnifying lens element, bright-line finders are tiny optical treasures.
Dutch designer L.E.W. Van Albada came up with bright-line viewfinders in the early 1930's while working with Zeiss. He developed several types of viewfinders that were made both as accessories and built-into Contax cameras of the period. Albada's bright-line finders contain multiple glass lens elements in order to replicate the focal length of the taking lens. They also feature a concave mirror that focuses light onto printed or etched frame-lines. The result is viewfinder that is often at least as bright, or brighter than most newer built-in finders, as well as frame-lines that are projected onto the scene and are easily visible wherever there is ambient light. The latter being of particularly important historical note.
According to the Leica Accessories Guide, bright-line or Albada-type viewfinders were originally called sports finders due to the benefit of being able to see a subject enter the frame-lines within the viewfinder. Prior to the Leica SBOOI of 1951, bright-line viewfinders were just one of many types of finder designs. But Leica made an entire line of them with similar encasements that solidified bright-line finders as a particular accessory in and of themselves. Indeed, the Leica IIIg and M3 cameras contain the same bright-line viewfinder design, built-in.
Leica's adoption of Albada's viewfinder cemented the projected frame-line feature as standard in all subsequent rangefinder camera designs and ignited competition for brightest viewfinder as a benchmark for assessing the quality of a camera.
Each accessory bright-line finder is dedicated to just one, or sometimes two, focal lengths. This makes them less versatile than simple, multiple length wire frame finders or finders that contain basic magnifying optics mounted in a turret. If you choose a set of bright-line finders in favor of a turret finder, you are committing yourself to changing finders out and storing them appropriately each time you change lenses. Or are you?
For me, I typically only use one or two different lenses per body during a shoot. Therefore, I don't make a habit of swapping out my bright-line viewfinders mid-shoot, I simply use the built-in finder and leave the accessory finder atop the body at all times. So for example, my M6 TTL supports multiple frame-lines. I use one of these built-in lengths, such as 50 or 90 but I leave my 15mm bright-line finder in the accessory shoe, ready for whenever I mount my 15mm lens. On my 1930 Leica, I often prefer to use the 50mm bright-line SBOOI instead of the built-in finder and keep it mounted at most times.
If you like to swap lenses more frequently than I do, or use multiple lengths that require an accessory finder, you may want to get one of those turret finders. But personally, despite being what I consider a pretty fast photographer, I prefer the viewing quality and smaller physical size of bright-line finders than the speed of a larger turret finder, because my workflow doesn't require anything faster.
I particularly enjoyed using my Voigtländer 90mm bright-line viewfinder recently while practicing street photography. The ability to see slightly outside of the frame-lines and to concentrate strictly on composition made shooting this genre with this set-up fun and effective.
I wrote about bright-line finders a few years ago and got a number of questions about them that I thought deserved another blog. Below are some topics that came up - I hope you find my thoughts on each, useful. And if you have more, I'd love to hear them in the comments!
LEICA vs VOIGTLÄNDER vs ZEISS
I'm only aware of two noteworthy manufacturers of bright-line accessory viewfinders as they're discussed here; Leica and Cosina. I'm not going to include those early Zeiss bright-line viewfinders that Mr. Albada originally designed simply because each model does not fit into a model line as we know them today. No disrespect to the originators!
Cosina, of course makes products under the Voigtländer namesake and for Zeiss. Leica really embraced bright-line finders in the 1950's and they still make several which have a rectangular rather than the classic round silhouette and are a bit larger. Cosina began selling bright-line finders in the early 2000's. Voigtländer issued plastic finders that were black and metal finders that were a conventional satin silver chrome or gloss black paint. Modern Zeiss finders have a squared off housing and came only in black painted metal. Modern Leica bright-line finders are squared silver chrome or black painted metal.
I prefer the metal finders because I don't trust the rigidity of the plastic "foot" of the plastic finders. And practical concerns aside, I just don't like the idea of plastic. I like classic, metal and manual cameras and don't have any desire to top them off with glass encased in cheap, modern plastic. I appreciate the quality of paint filled etching on the metal finders and their general feel and cosmetic look. Sorry if that makes me vain or superficial!
Where I'm not superficial though, is on brand. I believe vintage Leica and modern Voigtländer metal barreled bright-line finders are of totally equivalent build quality. And both are beautiful, jewel-like masterpieces of design and execution. Since neither company continues to sell these style finders (Leica's current bright-line finders support only a few focal lengths and are larger), we're not supporting or hurting either company by purchasing these products.
One difference between brands is that the Leica finders were mostly made during the 1950's vs Cosina being more contemporary. So some Leica bright-line finders have either been heavily used or improperly stored for decades and will require service. I have yet to see any examples that exhibit de-silvering of the mirror but it would only follow that this should be a concern. And particularly when choosing longer focal lengths such as 90 and 135mm that feature parallax correction, these finders contain a small, simple mechanism and vintage copies will likely require service. Voigtländer finders appeared in the early 2000's and were made for about ten years. So even the most heavily used and poorly stored Voigt's are likely to be in better shape than similarly used/stored 70 year old Leica's, all things being equal.
Zeiss viewfinders seem to sell for $300+, used or new. Leica finders, of which there are few modern models, sell for $900+ new. So that leaves now-discontinued Voigtländer and vintage Leica finders for reasonable prices. "Reasonable" is still in the $50-$150 range used, depending on focal length, condition and included packaging/accessories. There are some rarer finders such as the Voigtländer 40mm or Leica 85mm that command higher-than-average prices; more in the $250+ area. Since I've been purchasing and using bright-line finders though, for about ten years, they appear to at least hold their value. Used prices on metal Voigtländer finders seem to equal vintage Leica. I guess that if you wanted the look/specific function of the current Leica M type bright-line finders, the Zeiss versions provide an economical alternative. But even if you don't care about price, there are just more focal length options available for vintage Leica and Voigtländer than modern Leica and Zeiss.
FOCAL LENGTHS AND MODELS
I would like to catalog every single focal length bright-line viewfinder that each manufacturer has put out but I'm sure there will always be something missing. I'm going to list what I know from my research and experience and hope that I get most of them! If you know of others, please go ahead and let me know in the comments!
Leica's vintage bright-line finders were available in the following lengths and of course, correspond to some silly five letter words: 21mm (SBKOO), 28mm (SLOOZ), 35mm (SBLOO), 50mm (SBOOI), 85mm (SGOOD), 90mm (SGVOO) and 135mm (SHOOC). These were all brass (I presume brass) and finished in satin chrome with black and red paint-filled etched text. Earlier vintage Leica bright-line finders are marked in cm instead of mm and all versions that I've seen are marked in both metric and standard focus measurement using different colors of paint. Earlier Leica finders came in classic red boxes with gold lettering. Newer copies were sold in beige boxes with printed graphics. Leica's current bright-line finders are available in just 21mm (12002) with a solid milled brass enclosure and finished in satin chrome or black paint with a rubber eyepiece. They feature a printed Leica logo but etched and paint-filled focal length text. In the 1980's the 21mm 12002 finder was also made in black plastic and there was a similarly constructed 28mm (12017) for some time that is no longer available new.
Voigtländer finders were sold both plastic barrel (Version I) and metal barrel (Version II) finders. I am not 100% certain that each of the following lengths were available in both plastic and metal and which metal were available in black or chrome. But sizes by Voigtländer included 10mm, 12mm, 15mm, 21mm, 28mm, 35mm, 40mm, 50mm, 75mm, 90mm, and 135mm. Voigtlander also made a 12mm D 1.5x finder for the Epson RD-1 and it's crop-sensor, as well a mini versions of the 28/35mm finders and a Heliar 101 anniversary 50mm finder that is not 1:1. All plastic barreled finders were black in color with the logo and text printed on. Voigt metal finders came in satin chrome or black paint finish. The Voigt satin chrome very closely matches vintage Leica in terms of color and weight. I don't know if the barrels themselves are made of brass or something cheaper but I can report that as the paint has worn off my Voigt 15mm finder, it has revealed a brass-colored metal. 12 and 21mm Voigts have two-piece housings with a silver chrome front bezel and the rear hemisphere is finished in black crinkle paint. The 12mm finder has no frame-lines and technically is not among Albada's design but does contain four elements of glass! The only way to tell an older Voigt finder apart from a newer one is the box. Older boxes were green and newer ones are black.
Zeiss finders were designed to follow the styling of modern Leica finders and are rectangular rather than round. They are also made of an unlisted type of metal and feature a raised blue Zeiss logo as well as etched and paint-filled focal distance text. Zeiss finders have been produced in the following lengths: 18mm, 21mm, 25/28mm, and 35mm.
CARE AND USE
This was probably the Number One topic of direct messaged question that I got the last time I posted about bright-line finders. People are nervous about how to store and protect a hunk of expensive, delicate glass sitting atop their camera or tossing around in their camera bag.
As I previously noted, I typically keep my finders mounted to the cameras, even when not actively using them. Certainly I leave them at home if I don't expect to use them at all but during a shoot where I'm using both 50 and 90mm lenses, I keep the 90mm viewfinder mounted while shooting the 50 and then I don't have to make any further changes to the rig when I switch to my 90 or back to the 50. Doing this not only allows for faster use but represents that much less time that the viewfinder needs to be tucked away and safely stored in ones camera bag.
When shooting my 1930 Leica III, I seldom remove the 50mm SBOOI finder and this is my daily or near daily carry rig. I have been using it this way for about three years and, knock on wood, the glass has yet to be damaged. I guess that concerns over outward facing glass is always a concern with rangefinders. But unless one is shooting in harsh conditions, where you may prefer an SLR anyway, I don't worry much about adding yet more outward facing glass to my rangefinder!
Leica bright-line finders sometimes come with an accessory leather button case for storage. I personally wouldn't recommend using these. Leather fitted cases, while attractive and properly vintage, seem to have a habit of causing oxidation or chemical reactions with chrome and painted surfaces. I tend to see vintage Leica finders on eBay that have a turquoise corrosion around the black paint part of the finder. I have seen this crud appear on vintage cameras that were stored in their case and likely in humid conditions also. So I just don't see any value in the risk. But admittedly I don't know or care to research the science on this. Your mileage my differ!
Voigtländers came in a blue velveteen pouch with a gold "V" printed on it. They open and close via a red draw-string. I keep Leica finders in similar jeweler's drawstring bags that my wife's ear rings etc. have come in. These are great for tossing into ones camera bag and keeping the bright-line finders safe and clean.
When I purchased a 135mm Leica finder recently, I had to use a cotton swab to apply lighter fluid to the focus ring in order to free up its movement. I'll still need to mail this out for service to ensure that it is properly lubricated long-term. But I wanted to mention a safe way to free these vintage finders up in case you com across one also. Thanks to Jay Javier, Leica photographer and professional repair technician for this tip.
Finally, I should note that not all bright-line finders fit all accessory shoes perfectly. I place a little bit of cardboard from a film box on the accessory shoe of my 1930 Leica in order to secure a tight fit. For the cost of these little guys, you certainly don't want them coming lose and disappearing!
CONCLUSION
Built-in and accessory viewfinders have evolved to offer light years more comprehensive information and feedback to us. Today's viewfinders are often either fully electronic or hybrid optical/electronic previews of scenes. They no longer let us see our subjects and scenes directly but, have turned into representations and speculations by, of and for computers. Bright-line viewfinders offer photographers something that has become an unusual luxury; a gorgeous, unencumbered view of the scenes that we're photographing. Sometimes you just don't need to see exposure scales, focus points and confirmation, to know if a flash is ready, how much power is left on your battery or contrast in a scene.
Believe it or not, there are times that all you want or need to do is see your subject!
And this is where one comes to appreciate bright-line viewfinders - beautifully crafted devices that, quite literally, get the camera out of the photographer's way.
Thanks to L.E.W. Van Albada for creating these little gems and thanks to you for reading. Happy shooting!
_Follow, Favorite, Like, Add, Insult, ContactJohnny Martyr _
#accessoryreviews #filmphotography #leica #martyrmusings #reviews #tipstricksadvice #voigtlander #10mm #12mm #135cm #135mm #15mm #21mm #28mm #35cm #35mm #40mm #50mm #5cm #75mm #85mm #90mm #9cm #accessoryviewfinder #albada #brass #brightlineviewfinder #cosina #film #filmcameras #frameline #framelines #glass #lewvanalbada #mirror #opticalviewfinder #optics #photography #projectedframelines #rangefinder #rangefinderaccessory #sbooi #shooc #spiegelsucher #sucher #viewfinder #voigtlaender #voigtländer #zeiss

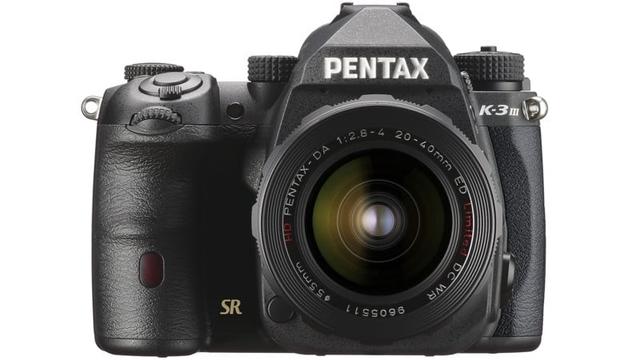

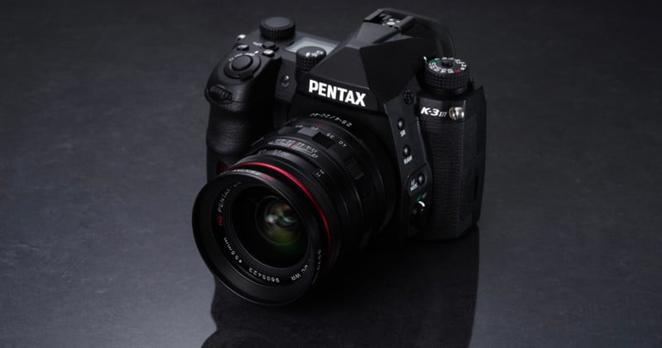

petapixel (unofficial)Ricoh Launches the Pentax K-3 Mark III, Its Flagship APS-C DSLR
After months of hype and an unexpected delay, Ricoh has finally announced the Pentax K-3 Mark III DSLR. The flagship camera features an optical viewfinder, a ruggedized body, an AI-assisted subject recognition technology, and a 25.73-megapixel BSI sensor with ISO sensitivity up to 1,600,000.
Pentax/Ricoh (from this point on referred to simply as Pentax) says that the K-3 Mark III is the sum of its five principles: Designing cameras through sheer devotion, producing cameras with the power to capture images with a direct communication with the subject, designing cameras that allow for the enjoyment of every process of making an image, pursuing a level of quality and performance that cannot be measured by numbers alone, and respecting and valuing the photographic experience of its users.
To that end, there are very specific reasons Pentax chose to make this camera the way they did, the most notable of which is that it is a DSLR and not a mirrorless.
As a DSLR, the K-3 Mark III features a classic optical pentaprism viewfinder, which the company says has "nearly" 100-percent field of view and a 1.05x magnification. It also says that its newly-developed high-refraction glass prism "assures comfortable viewing with a wide field of view equivalent to that of a full-frame SLR." It also features a distortion-correcting optical element and optimized lens coating to deliver that clear, "true-to-life" viewfinder image -- which is 10% brighter than the one found on the K-3 Mark II -- that the company puts so much emphasis on.
Incorporating a Natural Bright Matte III focusing screen — known for ease of focus during manual-focus shooting — it also delivers a sharp, clear subject image with faithful reproduction of the bokeh effect. In addition, its transparent display lets the user monitor a wide range of operational data in the viewfinder window.
The 25.73-megapixel APS-C CMOS sensor is coupled with an AA-filter-free optical design to produce what Pentax calls "super-high-resolution images." The sensor is powered by the company's new PRIME V imaging engine and new-generation accelerator unit that it says will deliver well-defined images with minimal noise while retaining resolution at all sensitivities. That said, it has an AA-filter simulator (which can be toggled on and off), which the company says effectively reduces moire patterns to the same level as an optical AA filter. It does this by applying microscopic vibrations to the i mage sensor at the sub-pixel level during exposure.
Pentax says that it was able to improve the noise-reduction performance at the higher ISOs, which allows the camera to boast a top sensitivity of 1,600,000.
The K-3 Mark III is also equipped with Pentax's SR II Shake Reduction System which delivers 5-axis, 5.5-shutter-step camera shake compensation. That 5.5 step reduction is the highest Pentax has ever achieved, and is compatible with almost all Pentax lenses, including screw-mount, 645, and 67-system lenses via an adapter, though it might not have full functionality across all.
That shake reduction system also allows the camera to feature a pixel-shift high-resolution capture mode, which shifts that sensor four times by a single pixel to create a synthesized composite with greater color data and finer details. To make this system more useful with a wider range of scenes and subjects, the camera also has a Motion Correction function, which can be toggled on and off and detects only moving elements of the image during continuous shooting and minimizes negative effects during the synthesizing process.
The rear LCD is a 3.2-inch monitor with approximately 1,620,000 pixels which supports touch operation. It also has a special resin material injected into the gap between the LCD layers and the tempered glass cover which Pentax says reduces reflections to improve visibility while shooting outdoors.
The K-3 Mark III features Pentax's SAFOX 13 autofocus system which has 101 focus sensors. SAFOX 13 is a newly-developed phase-matching AF sensor module that Pentax says is dependable for precision autofocus operations. 25 of the 101 sensors are cross-type positioned in the middle to help pinpoint focus on the subject at minimum brightness levels as low as -4 EV. It also features a new, high-capacity RGBIr image sensor with approximately 307,000 pixels and a newly developed image-tracking algorithm, Pentax claims that the camera also assures accurate tracking of subjects moving at varying speed or in an irregular motion. A newly installed AF point selector lever allows the user to select the desired focus point more intuitively (up to 41 points).
Built on top of this is Pentax's real-time scene analysis system supported by artificial intelligence. Powered by the PRIME V processor and the RGBIr image sensor, the AI is able to detect face and eyes and make real-time analysis adjustments for movement. By using deep learning, the system promises to provide accurate subject detection and more reliable scene judgment.
The Pentax K-3 Mark III features a top shooting speed of 12 images per second in AF-S mode and 11 images per second in continuous.
The body of the DSLR is dustproof and weather-resistant and the top, bottom, front, and rear panels are all made of magnesium alloy. These are coupled with dustproof special seals applied to crucial parts of the body. The result is a camera that has "outstanding" cold resistance and is able to promise stable operation at temperatures as low as -10 degrees Celcius (14 degrees Fahrenheit). The shutter unit is also durable and rated for 300,000 actuations.
The camera can shoot 4K video at up to 30 frames per second and Full HD 1080p video at up to 60 frames per second, both in H.264. It has a mic jack and headphone terminal and audio recording levels and monitor volume can be individually toggled. The camera also supports fully touch control of its features while recording to limit how much sound the camera makes while recording.
Other notable features include the DR II (Dust Removal II) mechanism, charging support via USB Type-C, an HDR feature that saves captured images as RAW format files, a dual SD card slot (one UHS-I and the other UHS-II), and compatibility with older lenses without electronic contacts (shooting with such lenses is supported in Aperture-priority mode, and the lens focal length is saved as Exif data).
The Pentax K-3 Mark III will be available on April 6 at 5 PM ET for $2,000. The company is also producing two limited-edition kits: a Pentax K-3 Mark III Black Premium Kit and a Silver Premium Kit.
Each includes the camera body and battery grip (the Silver Premium Kit comes with a silver camera body and a silver battery grip that is exclusive to this bundle), plus a spare battery and an "exclusive" leather strap. These premium kits will be available in late April for $2,300.
