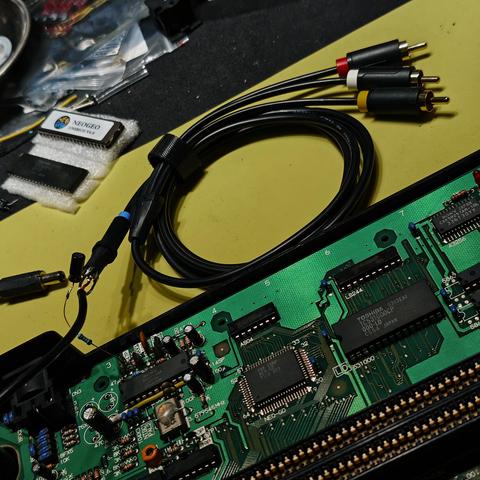

Hmm... sound works (no surprise there), but no video. I thought I'd do it more simply this time, but no luck. CXA1145P pin 20 composite video out, 75 Ohm resistor, then a 220uF cap. That's what the docs say... More testing I guess... #neogeo #retromodding

Connected the audio cable directly to the plug to test first. Everything still works. We have stereo sound. At first I heard a buzz in the audio, but once I connected the scart cable directly to the tv it disappeared. Cheap ass scart splitter. #neogeo #retromodding

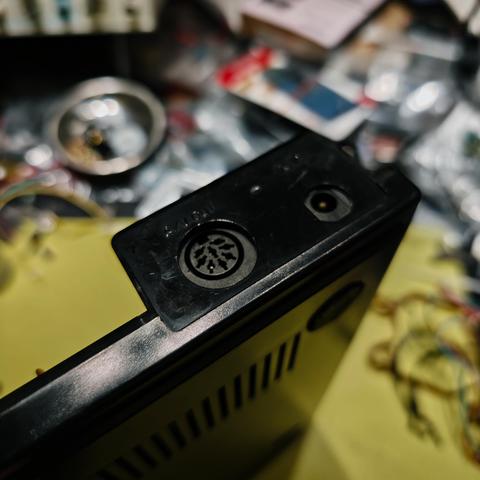

Decided on the location for the 3.5mm connector and quickly made the hole before my wife goes to bed. Now I can continue making a bit more space on the table... Photo of the dremel (also #aliexpress) and the 2 bits I used to make the hole. #neogeo #retromodding

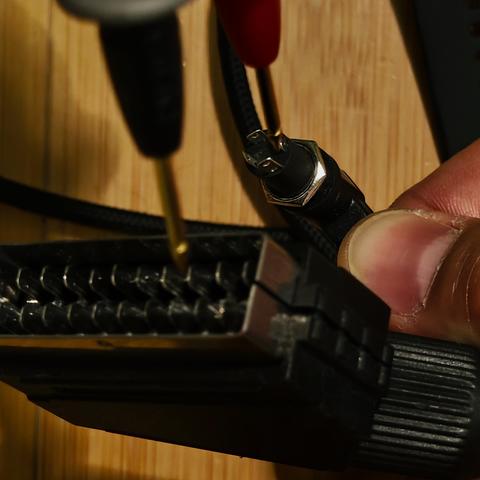

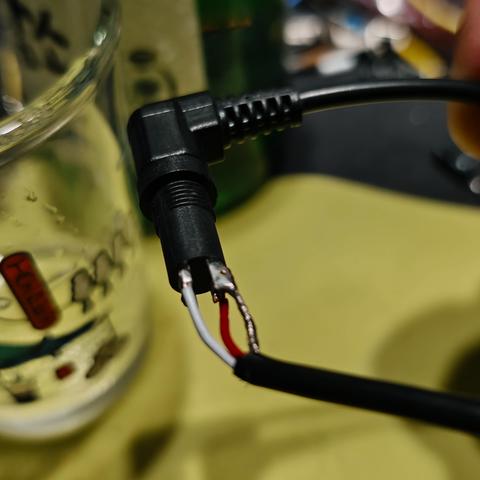

I should be making a hole now for the 3.5mm connector, but the wife has already gone to bed. So instead I am beeping the connector to find out which pin should be connected to what and posting it here so I can look it up next time... #neogeo #retromodding

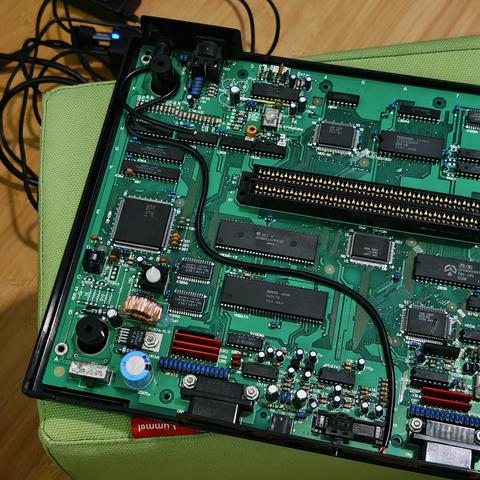

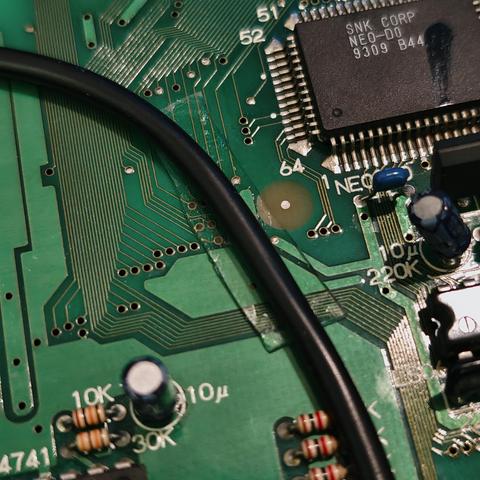

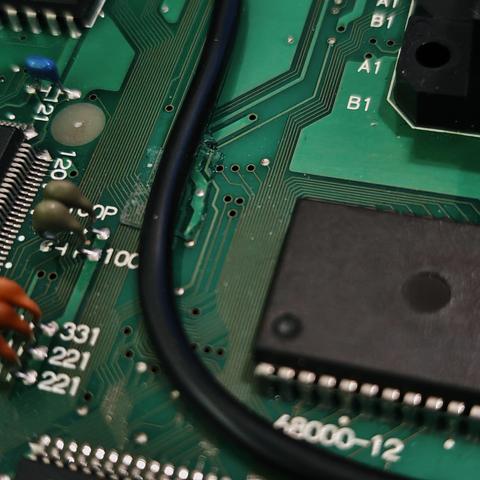

Finished running the stereo audio cable to the back. Used gecko tape to keep it in place. Anyone know the secret to removing the plastic film from gecko tape, that shit is hard to get off. #neogeo #retromodding

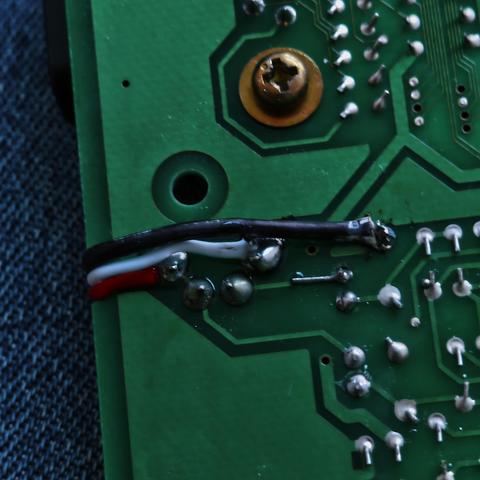

Soldered the wires to the audio and ground points. I didn't have black shrink tube, only white in that size and I could not have 2 white wires of course, so I used a marker to make it black (GND wire). Why not use that beautiful hole at the exact right spot? Screw hole... #neogeo #retromodding

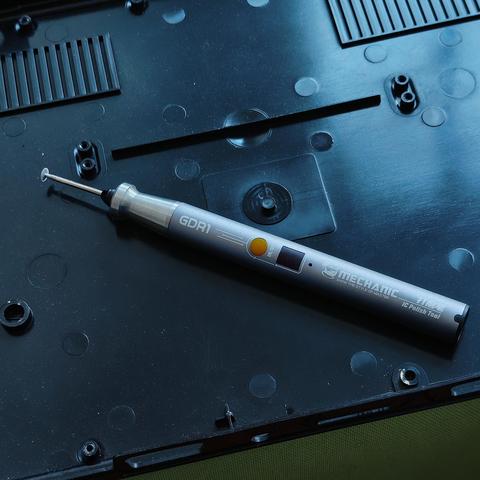

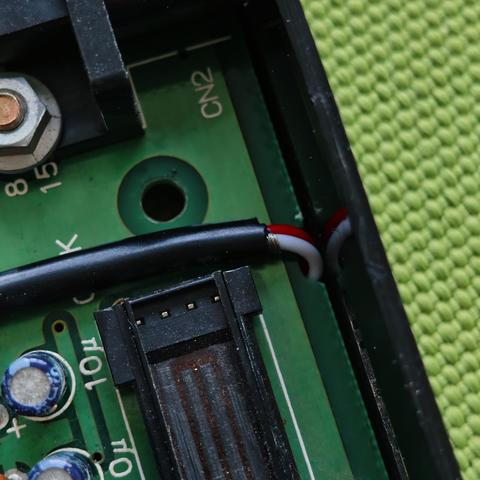

Dremel was not in my room, too lazy to go to the garage, so I used the smaller Mechanic (from #aliexpress) dremel, which worked much better actually for such a small area. Enough clearance for the wires now, so we can continue. #neogeo #retromodding

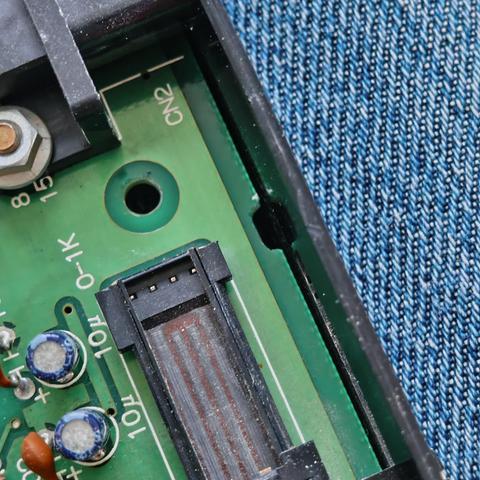

There is very little space between the front side of the PCB and the bottom shell. So I will be removing a little bit (see marking) with a dremel, just enough for the wires to pass without getting squeezed between the PCB and the bottom case. #neogeo #retromodding

These are the points you can use to tap audio from. Left, Right and Ground. The side I am using this time is line level audio, if you connect to the points on the other side you can control the volume of the audio with the volume slider just like a headphone. #neogeo #retromodding #retrorevival
