Bare PCB Makes A Decent Homemade Smart Watch

These days, we live in a post- Dick Tracy world, where you can make a phone call with your fancy wristwatch, and lots more besides. [akashv44] has gone a simpler route, designing their own from scratch with a bare PCB design.

The build is based around the ESP-12E microcontroller, providing useful wireless connectivity that lets the watch interface with the outside world. The firmware makes queries of NTP servers and Yahoo's weather API to collect time and weather data for display. It's also capable of interacting with Blynk relay modules for controlling other equipment, which [akashv44] uses with lights and an air conditioner. The watch uses a small OLED display and a handful of small surface-mount tactile buttons for control. Power is courtesy of a small lithium-ion pouch cell, with charging handled by a TP4056 battery management IC.

It's a simple smartwatch, but nonetheless one that teaches all kinds of useful skills in embedded development and design. It's also funny to think how simple it is to build. A decade ago, before the ESP8266 was released, getting wireless connectivity in such a small package was a major engineering challenge. Even the Apple Watch didn't come out until 2015! Food for thought.

#wearablehacks #esp12e #esp8266 #smartwatch #watch #wifi

Pandemic Gives Passersby a Window on Cyborg Control

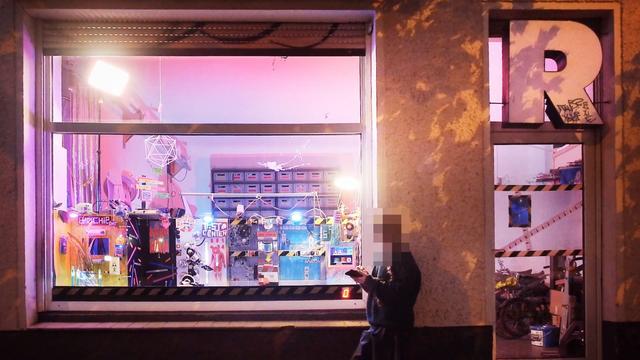

What's this? Another fabulous creation from [Niklas Roy] and [Kati Hyyppä] that combines art and electronics with our zeitgeist and a lot of recycled bits and bobs? You got it. Their workshop in eastern Berlin used to be a retail shop and has a large display window as a result. This seems perfect for a pair of artists in a pandemic, because they can communicate with the community through the things they display in the window. Most recently, it was this interactive cyborg baby we are choosing to call Cybaby.

You might recognize Cybaby as one of the very hackable Robosapien robots, but with a baby doll head. (It also has a single red eye that really pulls its look together.) In the window, Cybaby comes alive and toddles around against a backdrop that grew and evolved over several weeks this spring and summer. Passersby were able to join the network and control Cybaby from outside with their smartphone to make it walk around, press various buttons that change its environment, and trigger a few sensors here and there. Robosapien has been around for about 20 years, so there is already Arduino code out there that essentially simulates its R/C signals. [Niklas] and [Kati] used a NodeMCU (ESP12-E) to send pulses to the IR input of the robot.

Back on the zany zeitgeist front, there's a hair salon, a convenience store, and a nightclub for dancing that requires a successful trip through the testing center first (naturally). Oh, and there's a lab next door to the nightclub that can't be accessed by Cybaby no matter what it tries or how it cries. Check it out after the break.

There's a dearth of Robosapien posts for some reason, so here's what [Niklas] and [Kati] had in their window before the World of Cybaby -- a really cool pen plotter that prints out messages sent by people walking by.

#arduinohacks #microcontrollers #mischacks #artinstallation #esp12e #nodemcu #remotecontrol #robosapien
