Just How Vulnerable to Accidental Erasure are EPROMs Anyway?
On the scale of things worth worrying about, having to consider whether your EPROMs will be accidentally erased by some stray light in the shop is probably pretty low on the list. Still, losing irreplaceable data can make for a bad day, so it might just pay to know what your risks really are.

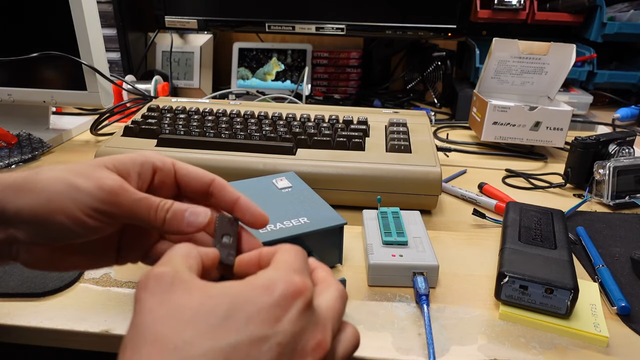

To address this question, [Adrian] set out to test just how susceptible to accidental erasure some common EPROM chips are. An EPROM, or "erasable programmable read-only memory", is a non-volatile memory chip that can be programmed electrically and then erased optically, by exposing the die inside the chip to light at a specific wavelength, usually in a special chip erasing tool. But erasure can also happen in daylight (even if it takes a few weeks), so [Adrian] cooked up an experiment to see what the risk really is.
He exposed a selection of EPROMs with known contents to UV and checked their contents. Three of the chips had a simple paper or foil label applied, while one had its quartz window exposed to the UV. As expected, the unprotected chip was erased in just 30 minutes. The covered chips, though, all survived that onslaught, and much more -- up to 780 minutes of continuous exposure.
So rest easy -- it seems that even a simple paper label is enough to protect your precious retro EPROMs. It's a good data point, and hats off to [Adrian] for taking a look at this. But now we can't help but wonder: what would a little sunscreen applied to the quartz window do to erasability? Sounds like a fun experiment, too.
#retrocomputing #eprom #erasable #memory #sunlight #sunscreen #uv
