i4cy 📌Apr 24, 2024

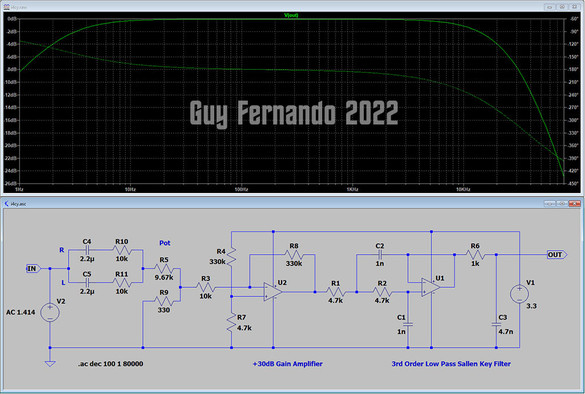

I am using LTspice a free tool, to generate a Bode plot showing the frequency response of a circuit under development. The circuit contains an amplifier and anti-aliasing filter to condition an audio signal prior to digitization by an ADC.

#electronics #ltspice #opamp #bodeplot
[23/05/2022]

i4cy 📌Apr 24, 2024

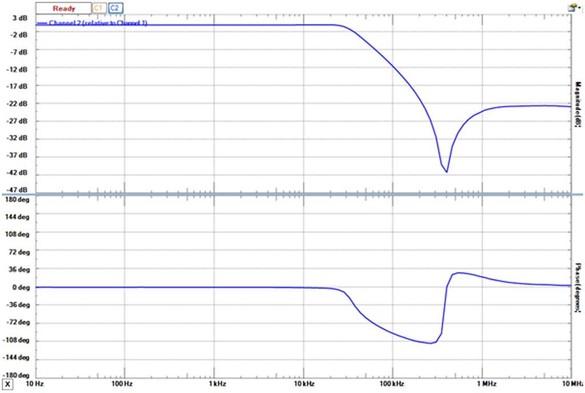

The #Analog Discover Instrument by #Digilent offers a simple way to test the frequency & phase response of operational amplifiers. Using it here to show a #BodePlot of the ubiquitous 741 operational amplifier, connected as a voltage follower. 741s work up to about 30kHz. #OpAmp
[25/02/2020]
