Papua New Guinea "Kindeng" by #CleverCoffee
Papua New Guinea is a relatively new player on the #coffee market. Commercial coffee production only took off there in 1950s, and although there are some larger plantations, most of the coffee comes from small farms - one or two hectares each - that farmers call their “gardens”.
🇨🇴 Papua New Guinea / Western Highlands
🗻 1520-1770 masl
🌱 Arusha, Bourbon, Typica
🏭 Kindeng Dry Mill
📅 September 2024
⚙️ Natural
August #Kaffebox features #coffee from the Danish roaster #CleverCoffee. The one with an orange label originates from Papua New Guinea, not a very popular coffee origin, and I haven't had a chance to try coffee from there yet.
The #chocolate bar is the same as in June: I asked them to ship it again because the last time it melted during delivery (this time it arrived intact).

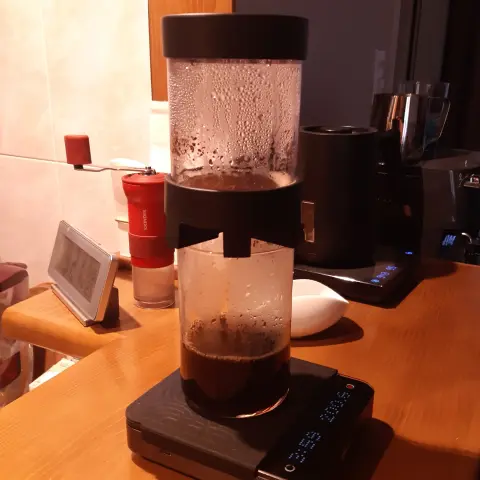

Lastly, there is the #Fellow Prismo - a pressure-actuated valve for the #AeroPress, want to give it a try.
New PCB, new #3Dprinted parts... More wires and cable management...
Bottom View:
Self designed bracket with integrated cable holders which is screwed in the electronic box so that it can be easily removed without damage.

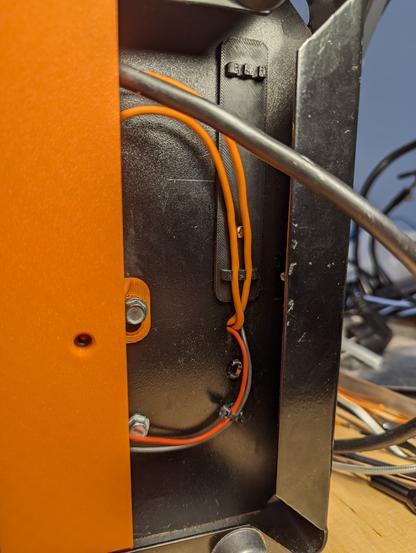

Back view:

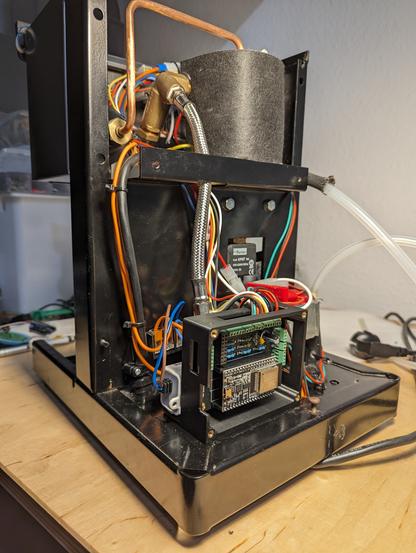

self designed electronic box with the #CleverCoffee PCB installed and wired for PID only. Also, visible in the background, a modified #Wago holder.

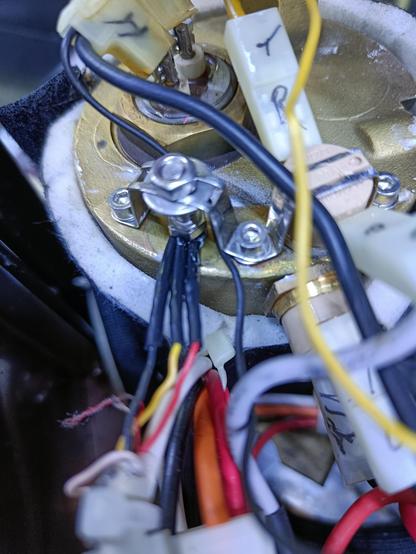

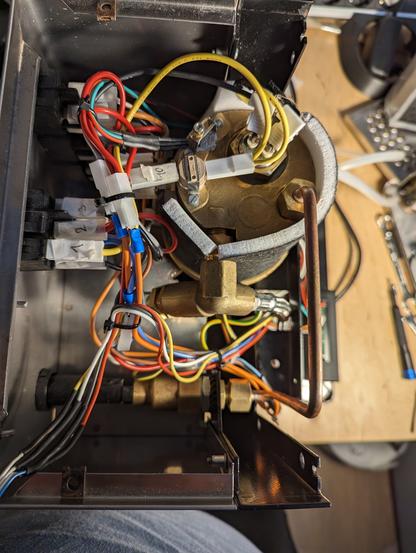

Top view open: wiring of the machine with the additional cables for the PID and display.

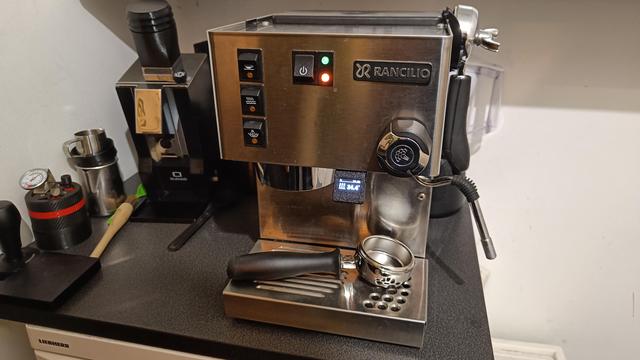

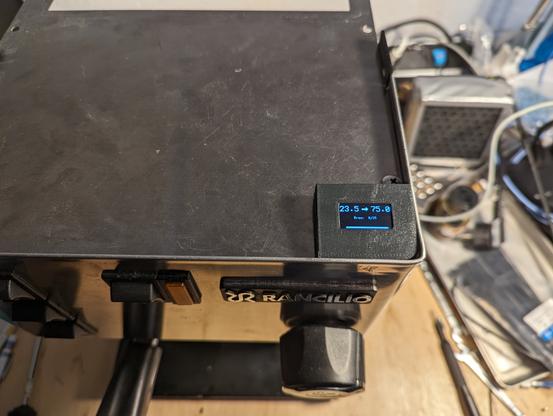

Top view: Top cover installed with the new display holder. I've modified it pretty much... added a bottom plate which is screwed on the top part (original) with an integrated magnet to hold it in place. The original was only the top frame and should be glued on the cover with double faced tape...

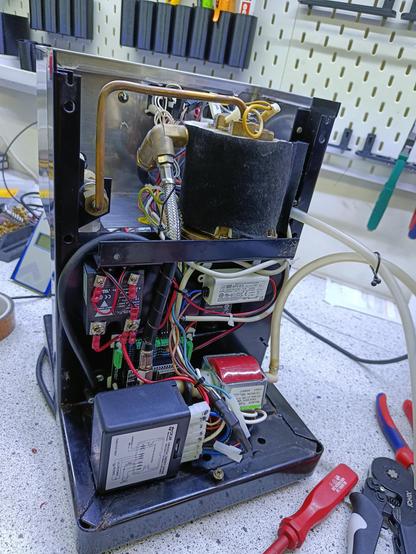

Okay, it's a while since the last post in the thread about the rebuild of a #Rancilio Miss #Silvia #Espresso machine.
If you haven't seen it yet it's over there
https://meow.social/@Kuraiko/110864976633377176

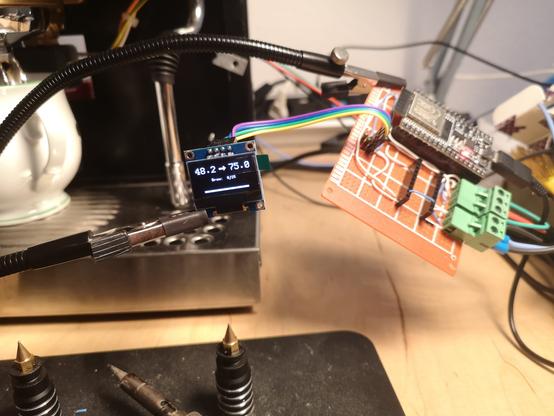

In the meanwhile I was busy collecting parts & building a prototype board for a existing project we'll want to use as a base for our modification: #CleverCoffee https://github.com/rancilio-pid/clevercoffee

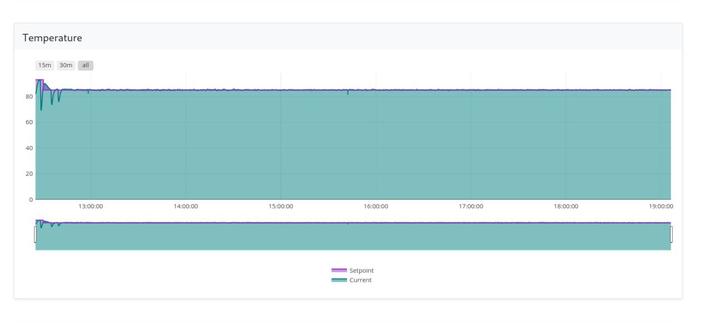

Had it running for 6h and it holded the temperature perfectly (+- 0.5°C)

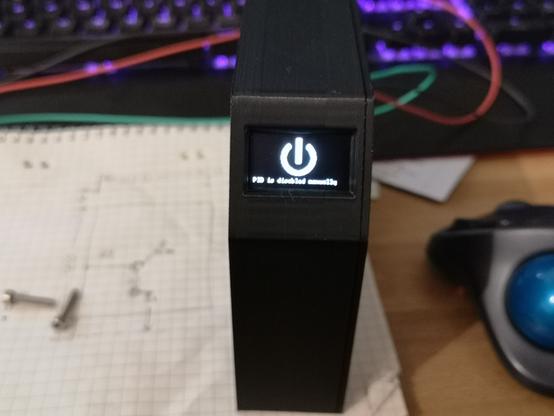

Also printed a basic case for the prototype to install it beside @ghostbear2k's machine.
Guess I bought a Porta filter #Espresso machine... I mean that doesn't sound weird on it's own, right? But actually I don't drink any coffee at all :blobfoxlaughsweat: Just bought it for prototyping the modification of @ghostbear2k's espresso machine. :blobfoxlaugh: :blobcatheart:
