Fireball-Flinging Figurine Feeds Fiction

If you're writing a screenplay or novel, there will likely be points along the way at which you can't get enough encouragement from friends and family. While kind words are kind, acts such as [scubabear]'s can provide a push like no other. By commissioning another 3D designer friend to model a character from the first friend's screenplay so he could print and animate it, [scubabear] fed two birds with one scone, you might say.

Designer friend [Sean] modeled the mighty Braomar in Maya and Z-brush, and [scubabear] did test prints on a Formlabs Form2 as they went along to keep an eye on things. Eventually, they had a discussion about making space for wires and such, so [Sean] took to Blender to make Braomar hollow enough for wires, but not so empty that he would collapse under the stress of being (we presume) the main character.

Braomar stands upon a sigil that changes color thanks to an RGB LED ring in the base that's driven by an Arduino Nano. A single pixel in the fireball is wired through Braomar's body and flickers with the help of an addressable LED sequencer board.

Our favorite part of this build has to be the power scheme. Not content to have a wire running out from the base or even a remote control for power-draining concerns, [scubabear] used disc magnets in the base to switch on the 9 V battery when Screenplay Friend rotates it.

Of course, if you need inspiration to even thing about beginning to write a screenplay or novel, maybe you should lead with the maquette-building and then construct a story around your creation.

_This project was an entry into the 2022 Sci-Fi Contest.Check out all of the winning entries here. _

#arduinohacks #contests #2022scificontest #9vbattery #arduinonano #maquette #neopixelring #rgbled #rgbledring

Wood and Brass Drink Temperature Monitor Looks Good, Has Class

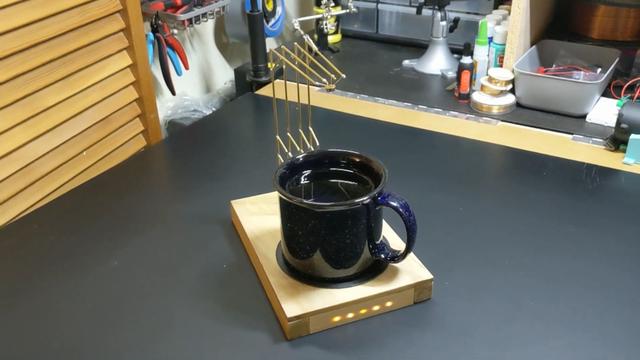

We've all been there. Your current project has hit a wall, or the next step will take days to complete, and you need something to do in the meantime. So you start a project that you envision will fit nicely in the gap, and then, inevitably, it doesn't. Maybe it even takes so long that the original project gets finished first. So what? There's nothing wrong with that, especially when the filler project turns out as well as this drink temperature monitor disguised as a circuit sculpture (video, embedded below). Just put your mug on the coaster, and the weight of it activates a hidden switch, which causes the sculpture to display its secret LEDs.

[MakeFunStuff] wanted to make something that looked less like a circuit and more like art, while building a tool that could determine the relative hotness of a beverage. Such a a useful circuit sculpture sounds like a tall order to us, but [MakeFunStuff] pulled it off with finesse and style.

The circuit is based around this Sputnik-looking standalone IR temperature sensor which, as [MakeFunStuff] aptly describes, is "a single-pixel infrared camera that picks up everything in a 90° cone starting at the sensor."

[MakeFunStuff] paired this easy-to-use sensor with an Arduino Nano and five LEDs that show how hot a beverage is on a scale from 1 to 5. The sensor is hidden in plain sight, suspended from the top of the brass rod sculpture and blending in perfectly. We love that the LEDs are hidden behind a thin layer of carefully-drilled wood and agree that a drill press would have been much easier.

The code is set up for just about every temperature scale from Celsius to Rømer, so that solves that argument. [MakeFunStuff] went with the Kelvin scale because science. Our favorite thing about this video is that [MakeFunStuff] shared their failures and fixes as they built their way toward answering the questions of how to suspend the sensor over the drink, and how best to display the heat level while hiding the electronics. Go grab a hot cup of something and check it out after the break while you let it cool off the normie way.

We admit that we would likely zone out while waiting for the LEDs to disappear. Here's a smart coaster that uses an ESP8266 to send a message to Discord when your beverage has reached the perfect drinking temperature.

Thanks for the hot tip, [Perry]!

#arduinohacks #lifehacks #9vbattery #arduino #arduinonano #irtemperaturesensor #leds #leverswitch #limitswitch

Toggle Switch Puzzle Boggles the Mind, Opens the Box

We all have too much stock of one component or another. Maybe you have more audio pots than you know what to do with, or maybe it's zener diodes. For [technologyguy], that thing is a pile of toggle switches. Fortunately he's always wanted to build a locking box with a binary code that's laid out in switches -- as in, find the right code, and a solenoid unlatches the box. This lovely parts bin special only responds to two combinations out of a possible 4,000+, so anyone who tries to open it should probably block out the afternoon.

Inside you'll find two 9 V batteries, a home-brew metal latch, a solenoid, and the undersides of four DPDT and eight SPDT toggle switches. If you just picked this thing up and had no idea what was going on, you'd be so screwed as to what to do first. The box needs power, so you'd have to figure out which switch is which. But it's so much harder than that, because the bottom left switch selects between the two paths that result in an unlocked book-box.

The next two toggles in from the left are on/off selectors for code A and code B, so not only do you have to have the right path chosen, you have to power it, too. The only progress indicators are the LEDs -- there's one for main power, and the other lets you know that the box is unlatched. What a fun conversation piece for the ~~coffee table~~ Zoom-viewable area!

Want to do something far less useful with your throng of toggles? How about a complicated useless machine?
