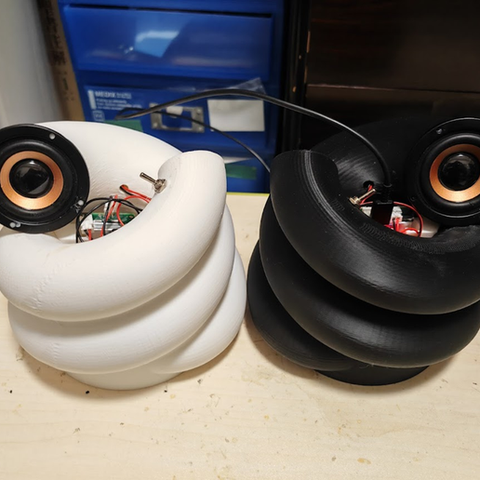

Spiral TQWT - 200cm Extreme Path [Deep Bass Edition]
Description:
This is a 3D-printable TQWT (Tapered Quarter Wave Tube) speaker enclosure featuring a unique spiral design. By winding a 200cm (approx. 6.5ft) acoustic path into a compact, organic form, it achieves a balance between space-saving design and genuine horn-loaded sound characteristics.
If you want a more compact setup, check out my 90cm Free Version (https://cults3d.com/en/3d-model/home/spiral-tqwt-enclosure-90cm-acoustic-path-edition-compact-high-efficiency) first!
Acoustic Characteristics:
Tuning Frequency: Approximately 50Hz. The enclosure resonance is precisely calibrated for a deep, rich, and powerful low-end response.
High Efficiency: Despite its extended path, this design offers impressive efficiency and high sensitivity. It delivers a clear, energetic sound even with low-power amplifiers, making it perfect for premium desktop or room setups.
Unique Geometry: The spiral structure minimizes internal standing waves while maximizing the effective path length within a minimal footprint—a feat only possible through 3D printing.
Specifications:
Total Path Length: 200cm
Enclosure Type: Spiral Tapered Quarter Wave Tube
Target Resonance: Tuned for deeper, richer bass (around 40-50Hz range depending on the driver).
Acoustic Benefit: The 2m path significantly extends the low-end performance, delivering the kind of scale and depth that only a long-folded horn can provide.
Recommended Driver: 2-inch Full Range Driver (AliExpress Link) (https://ja.aliexpress.com/item/1005007039421431.html)
Measured Performance:
I have actively measured the frequency response of this enclosure (as shown in the images).
Real-world Evidence: Unlike many untested models, this enclosure has been measured to ensure acoustic performance.
Smooth Response: It delivers a surprisingly flat and smooth response across the mid-to-high frequencies, providing clear vocals and excellent imaging.
Deep-End Extension: Thanks to the 2m TQWT spiral design, it maintains incredible energy right down into the deep bass region, punching well above what you would expect from its actual physical footprint.
💡 Looking for a more compact setup? Check out our Micro Double Bass Reflex Speaker—engineered with a precise 1:2 chamber ratio for high-fidelity desktop audio!
🔉 Micro Double Bass Reflex Desktop Speaker - Deep Bass from 2" Driver • 3MFファイル
➡️ 3Dプリントモデルをダウンロード: https://cults3d.com/:4464883
💡 デザイン：masken
@cults3d #3DPrinting #3DPrinter #Printable #STLfile

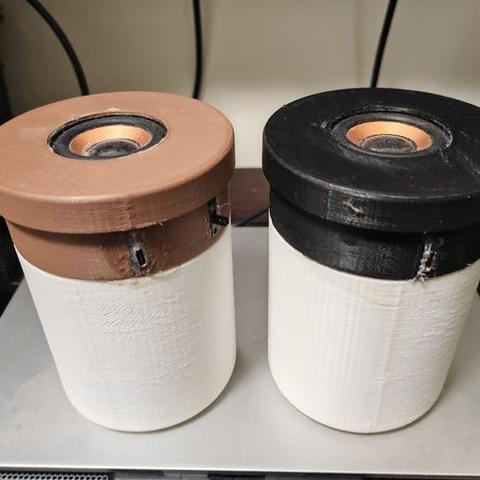

Micro Double Bass Reflex Desktop Speaker - Deep Bass from 2" Driver
Premium Acoustics in a Compact Footprint
This is a highly optimized, high-fidelity Micro Double Bass Reflex Enclosure specifically designed for 2-inch full-range speaker drivers.
While typical small enclosures sacrifice low-end punch, this premium dual-chamber system achieves a balanced, deeply satisfying bass response and an incredibly smooth midrange—making it the ultimate DIY project for an audiophile desktop setup.
📐 Scientific & Meticulous Engineering
To extract the absolute maximum performance from a compact 2-inch driver, the internal structure features a precisely calculated 1:2 volume ratio between the twin acoustic chambers (Chamber 1 : Chamber 2).
This exact ratio ensures flawless acoustic coupling between the primary and secondary ports. It minimizes the notorious midrange "diops" or muddy peaks common in poorly tuned double-bass reflex designs, resulting in an exceptionally flat and predictable frequency response.
Furthermore, the elegant cylindrical exterior isn't just for aesthetics—it helps disperse internal standing waves, providing a distortion-free, natural listening experience even during near-field (close-up) desktop use.
📊 Measured Frequency Response (See Image)
Don't just take our word for it—the proof is in the data. As shown in our actual measurement graph (pink noise test):
Ultra-Flat Midrange (100Hz – 2kHz): The 1:2 chamber ratio works perfectly, delivering an incredibly linear and smooth mid-range. Vocals sound stunningly natural and lifelike.
Extended Low-End Performance: Outstanding acoustic damping allows the bass to remain flat down to 100Hz, with a resilient low-frequency energy tail extending gracefully down into the sub-bass region.
Fatigue-Free Highs: Crisp, beautifully balanced treble extension that guarantees comfortable, long-term listening sessions while working or relaxing.
🛠️ Smart "Screwless" Assembly
The enclosure features a brilliant 2-piece interlocking design. The speaker driver sits perfectly in the upper body and is clamped securely from behind using the custom-designed Driver Retaining Ring.
* No messy glue or ugly front-facing screws required.
* Easy to print, clean look, and rock-solid airtight seal.
🔋 Independent Wireless Desktop Audio
The upper enclosure body includes dedicated pre-modeled cutouts for a Type-C charging port and a hardware toggle switch, allowing you to seamlessly integrate a Bluetooth SoC module, battery pack, and amplifier IC to build a fully self-contained, high-end wireless stereo pair.
🚀 Want to experience the ultimate low-end roaman? Check out our flagship 2-Meter Acoustic Path TQWT Enclosure!
🔉 Spiral TQWT - 200cm Extreme Path [Deep Bass Edition] • 3MFファイル
➡️ 3Dプリントモデルをダウンロード: https://cults3d.com/:4435130
💡 デザイン：masken
@cults3d #3DPrinting #3DPrinter #Printable #STLfile
Spiral TQWT - 200cm Extreme Path [Deep Bass Edition]
Description:
This is a 3D-printable TQWT (Tapered Quarter Wave Tube) speaker enclosure featuring a unique spiral design. By winding a 200cm (approx. 6.5ft) acoustic path into a compact, organic form, it achieves a balance between space-saving design and genuine horn-loaded sound characteristics.
If you want a more compact setup, check out my 90cm Free Version (https://cults3d.com/en/3d-model/home/spiral-tqwt-enclosure-90cm-acoustic-path-edition-compact-high-efficiency) first!
Acoustic Characteristics:
Tuning Frequency: Approximately 50Hz. The enclosure resonance is precisely calibrated for a deep, rich, and powerful low-end response.
High Efficiency: Despite its extended path, this design offers impressive efficiency and high sensitivity. It delivers a clear, energetic sound even with low-power amplifiers, making it perfect for premium desktop or room setups.
Unique Geometry: The spiral structure minimizes internal standing waves while maximizing the effective path length within a minimal footprint—a feat only possible through 3D printing.
Specifications:
Total Path Length: 200cm
Enclosure Type: Spiral Tapered Quarter Wave Tube
Target Resonance: Tuned for deeper, richer bass (around 40-50Hz range depending on the driver).
Acoustic Benefit: The 2m path significantly extends the low-end performance, delivering the kind of scale and depth that only a long-folded horn can provide.
Recommended Driver: 2-inch Full Range Driver (AliExpress Link) (https://ja.aliexpress.com/item/1005007039421431.html)
Measured Performance:
I have actively measured the frequency response of this enclosure (as shown in the images).
Real-world Evidence: Unlike many untested models, this enclosure has been measured to ensure acoustic performance.
Smooth Response: It delivers a surprisingly flat and smooth response across the mid-to-high frequencies, providing clear vocals and excellent imaging.
Deep-End Extension: Thanks to the 2m TQWT spiral design, it maintains incredible energy right down into the deep bass region, punching well above what you would expect from its actual physical footprint.
💡 Looking for a more compact setup? Check out our Micro Double Bass Reflex Speaker—engineered with a precise 1:2 chamber ratio for high-fidelity desktop audio!
