DerTobiMar 5

New post on my blog: I built a joystick using a 2-layer PCB and some strain gauges. The #StrainStick works very similarly to a TrackPoint. There's also a small demo software that lets you use it as a mouse by connecting it to a CH32V203 dev board.

#OSHW

https://www.embedded-ideas.de/posts/260305_strainstick/

The Strainstick - Building a joystick from strain gauges

The Strainstick is a joystick which works by measuring pressure, not movement. It can be built from a single 2-layer PCB and a couple of cost effective parts.

embedded-ideas.de
DerTobiFeb 26

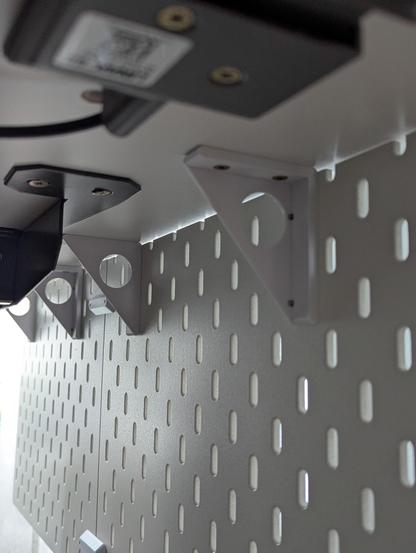

I wanted some mounting capabilities on my desk, so I added a SKÅDIS to the side. I used a 36×56 cm panel, which I cut in half. Maybe this is useful for others. You can find the printed parts at:

https://www.printables.com/model/1617175-skadis-bracket-front-surface-flush
https://www.printables.com/model/1617206-skadis-connector-front-surface-flush

DerTobiFeb 14

I did another take on SMD storage containers and added wire storage. Fully 3D‑printable and customizable, you only need an aditional spring per container. There’s even a mount for IKEA Skådis ;)

Hope it helps you stay organized!

https://www.embedded-ideas.de/posts/260214_part_nest/

PartNest - Modular Stackable Storage for SMD Parts and Wires

Compact, stackable storage for SMD tapes and small wires with optional stands and pegboard hooks, fully customizable.

embedded-ideas.de
Show threadDerTobiJan 3
Binaries: https://codeberg.org/embedded-ideas/OpenDmgDisplay-SW/releases
OpenDmgDisplay-SW

Software repository for the open GAME BOY DMG-01 TFT mod

Codeberg.org
DerTobiJan 3

UPDATE: The Open DMG Display now supports all 32 game-specific Super Game Boy palettes, as well as the 45 Game Boy Color palettes.
Huge thanks to VIS Modding for providing the checksums for all games.

#opendmgdisplay #oshw #gameboy #modding #retrogaming

https://www.embedded-ideas.de/posts/250417_open_dmg_display/

Open DMG Display (ODD)

An Open TFT Mod for the Original Game Boy (DMG-01) based on the RP2350B

embedded-ideas.de
DerTobiNov 16

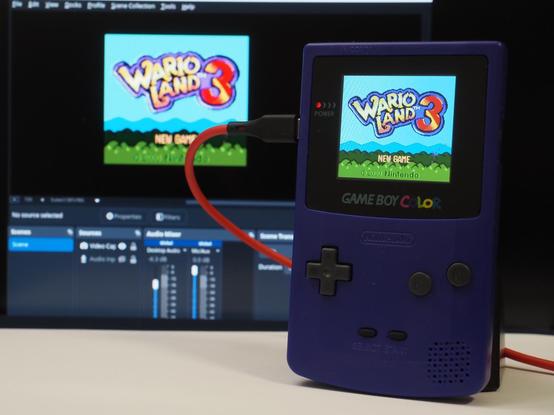

USB video capturing for the Open DMG Display! I adapted the GB Interceptor approach for the #opendmgdisplay, making it likely the first #gameboy IPS mod with integrated USB video output.

Big thanks to @DiConX !

https://www.embedded-ideas.de/posts/251116_open_dmg_display_uvc/

USB video output for the Open DMG Display

USB video output has been added to the Open DMG Display. It is now possible to capture the original display signal via UVC on a PC or smartphone.

embedded-ideas.de
DerTobiNov 16

Turning a low-cost CH32V305 MCU into a Game Boy Advance (and Color) USB capture device, with no extra circuitry required.

Captures full-res RGB565 at ~60 Hz and streams it over UVC in YUY2. A fun look at combining basic peripherals to extend the capabilities of a simple microcontroller.

https://www.embedded-ideas.de/posts/251030_xgb_to_usb/

xGB to USB - USB video capturing for Gameboy Advance and Gameboy Color

A proof-of-concept showing how a low-cost CH32V305 MCU can capture full-resolution Game Boy Advance video and stream it over USB as a UVC device

embedded-ideas.de
Show threadDerTobiOct 23
TOC: https://www.shroffpublishers.com/index.php?dispatch=attachments.getfile&attachment_id=2466
DerTobiOct 23
This arrived today, and from what I’ve read so far, it’s the best overall reference work on embedded system hardware and software that I know of. It doesn’t go into great depth, but it offers an overview of many aspects of embedded system development and provides the right keywords to dive deeper. If anyone is interested, here is some more information: https://effectiveelectrons.com/book/
DerTobiOct 17
This week, I finally found the time to hang up my Brickpress prints. I’m still amazed by the way thoughts are portrayed and by the craftsmanship of the execution. Thank you very much, @GuidoKuehn .
