f4ivy
Imogen
Data Sheet

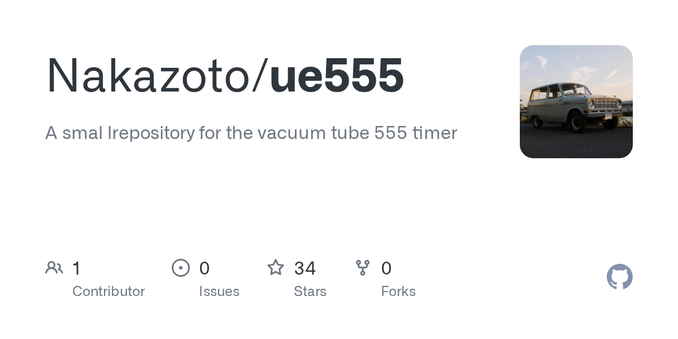

https://github.com/Nakazoto/ue555/blob/main/UE555_Datasheet_v0.1.pdf
Rue Mohr@HopelessDemigod 😅 VCC is 70V ?
+24 and -12

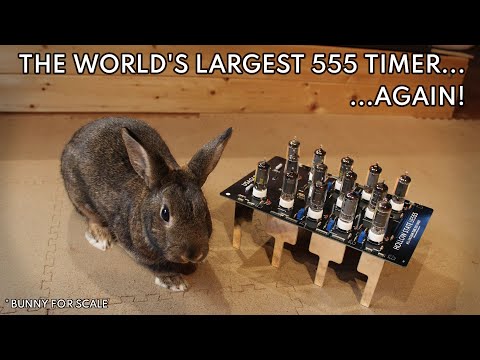

The World’s Largest 555 Timer… Again!
Khleedril@HopelessDemigod It is great that the ancient skills are being kept alive. Now put it in an oak cabinet!
That would be pretty cool.
Shawn Williams@HopelessDemigod any idea on the type of tubes used? I pulled up a few videos and schematics online but they didn't specify the tube type
The World’s Largest 555 Timer… Again!
@HopelessDemigod Ahh, thank you. Not familiar with that tube as its a 7 pin sharp-cutoff pentode. Designed for use as an FM Limiter but not used very much outside that application for audio - input tubes on a tube amp for example.
He did say you can use other tubes in the video, and some perform better than others.
@HopelessDemigod hard to beat the price on a 6AU6 though. They aren’t exactly in high demand
Kilroy_Was_HereProbably the only ESD-proof 555 timer ever made
Without a doubt.
pinkmoon@HopelessDemigod Wow, what a great idea.
Alexander Knochel@HopelessDemigod Does it have 5 Megaohm resistors though :)
That’s a big negative.
Oslo@HopelessDemigod that's sweeeet!!!!! <3
