Chris Huffee
A new board prototype in testing. Front design by @Snoof
And just because, on the reverse of the board I’ve hidden eight fictional robots.
#weeknotes
12:47pmWeb
Show threadChris Huffee16h ago

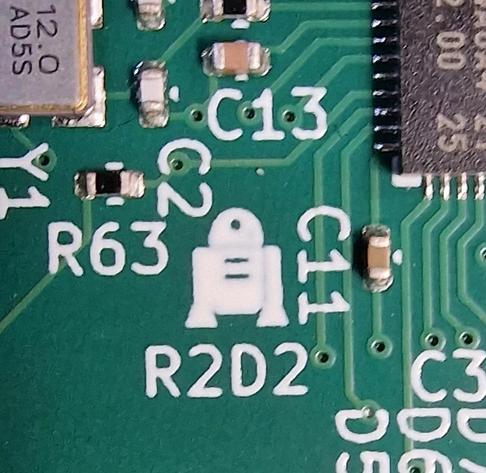

The first is easy to identify because it’s name is in the designator…
0402 passives for scale
Show threadChris Huffee16h ago
..as is the second
Show threadChris Huffee15h ago
The third should be fairly straightforward..
Show threadChris Huffee15h ago
Four is harder to find but should be recognisable
Show threadChris Huffee15h ago
The fifth is well hidden behind an inductor, but no excuses on this one.
Show threadChris Huffee15h ago
This one will wind up the traditionalists
Show threadChris Huffee15h ago
Seven is tricky if you’ve only seen the film and not read the books…
Show threadChris Huffee15h ago
And eight will really sort the wheat from the geeks with encyclopedic knowledge of 80s British TV
Show threadAngela Glansbury 🚽15h ago
@huffeec
fucks sake, lmao
Show thread⊥ᵒᵚ Cᵸᵎᶺᵋᶫ∸ᵒᵘ ☑️8h ago
@huffeec I'll stay on the channel. Seems to be some sort of emergency video game
Show threadmmu_man4h ago
@huffeec that does absolutely nothing for me…
Show threadThe Doctor10h ago
@huffeec
Show threadAdrian McEwen15h ago
@huffeec @Snoof I'm more impressed by how quickly you got over to San Francisco 😉
Show threadChris Huffee15h ago
@amcewen @Snoof yeah ok the lat long data might not be entirely genuine yet but that means going outside for testing...
Show threadlopta7h ago
@huffeec @Snoof Is that an LCD or eInk?
Show threadChris Huffee7h ago
@lopta @Snoof eInk 27x27mm
https://www.good-display.com/product/388.html
1.54" E Ink Display for Raspberry Pi –Fast Refresh E-Paper Screen, GDEY0154D67_GooDisplay

1.54" E Ink Display for Raspberry Pi –Fast Refresh E-Paper Screen, GDEY0154D67-GooDisplay-This is a electronic paper display, 1.54 inch, with 200x200 resolution, SSD1681, SPI interface, and the epaper screen supports partial refresh and 4 grayscale. It can be achieve 1.5s fast refresh.

Show threadlopta7h ago
@huffeec @Snoof Very nice!
