added a debug mode to generated binaries that switches to a live view of all updated tables in an iteration on Ctrl+C press, primarily so i can see when a process isn't exiting which updates are likely responsible.
but what i would _really_ like is a graph visualization with active rules and tables highlighted.
maybe the first step is to just generate a json trace file that can be fed into https://ui.perfetto.dev/ for instance. yes, as a compiler feature.
and i have my trace. it visualizes iteration boundary ("main"), rules executed (in green) and instant events for when changed buffers were reset, so i can track which data was changed.
slightly better. table-changed events are now placed where the buffer's topological position is, so we know that whatever's left to the buffer has likely changed it.

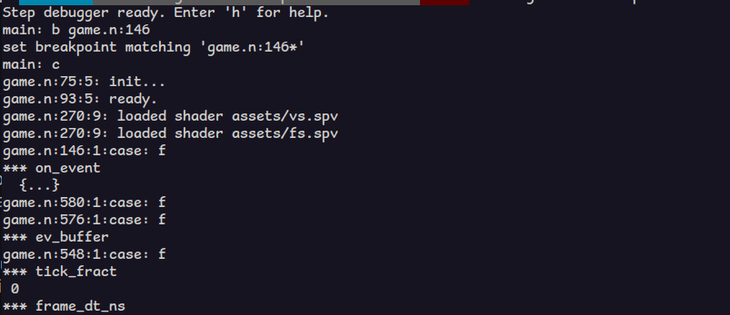

tbh i'd also like to embed a high level step debugger. stepping through with gdb has too many low level details i'm not interested in.
thanks to the rudimentary step debugger, i figured out why recent semantic changes messed up a test: an event to clear a vertex buffer is set, but only executed _after_ the vertex buffer has already been filled. this was a user error :)
i have yet to acclimate to the fact that all cases need to be time-bracketed: i.e. "trigger this *after* x, but *before* y"

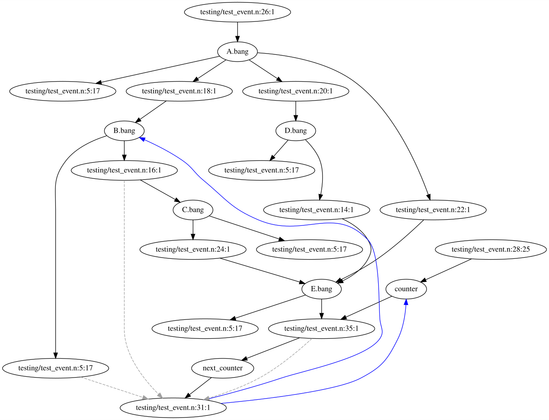

next i'm going to add dot output for graphviz.

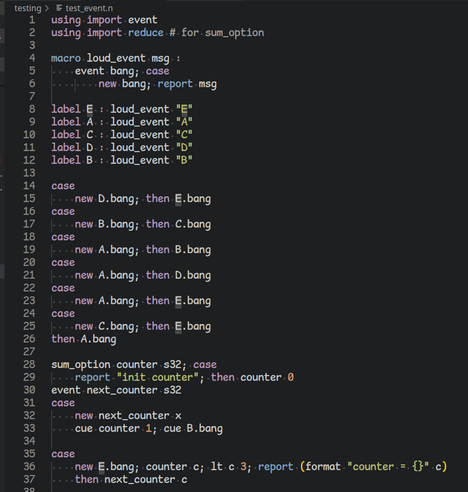

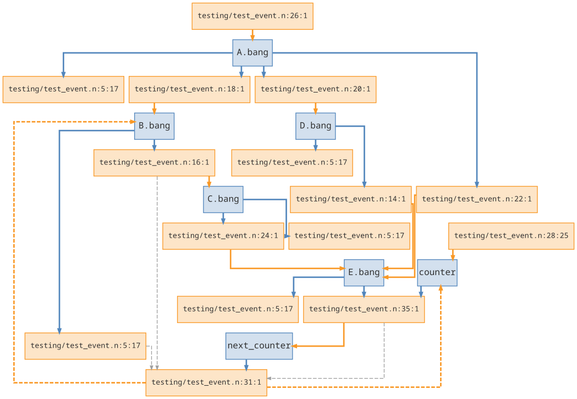

a convoluted test program (you might now realize why it's named "nudl") and the generated graph, as the scheduler sees it.

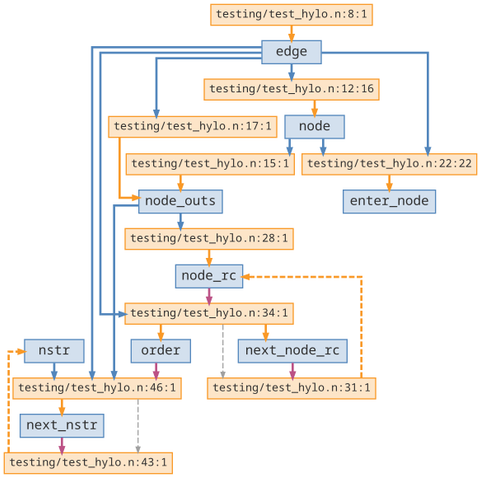

time to add some styling...
@lritter feel free to ignore, I just only have one hand for a few weeks so I'm doing one off creative things that pique my interest

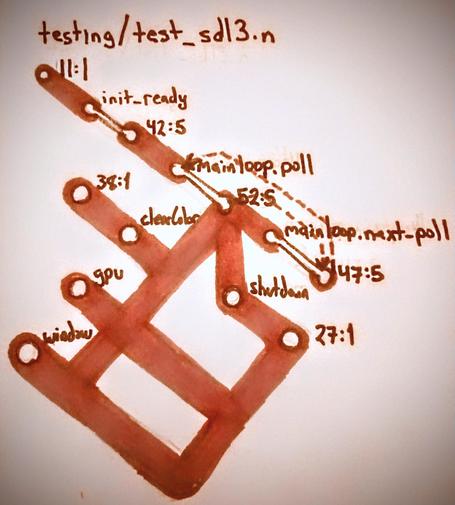

tried to make the nudl trace more noodley

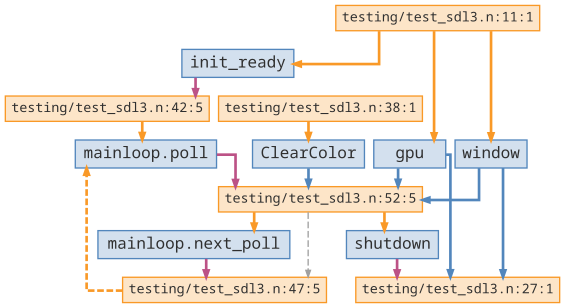

@the_dot_matrix it's almost correct; as far as i can tell only clearcolor should not be connected to the gpu/window district.
lack of visible edge direction could be confusing if i didn't already know which way what went.
interesting idea to "bus" shared dependencies this way.
what i like the most is that it makes main execution order very obvious
