Qaws (قوس) Arabic for *arc*, *bow*, *curve*. A dependency-free C11
library for creating, evaluating, sampling, traversing, and inspecting
parametric curves and surfaces in 2D and 3D.
A dependency-free C11 library for parametric curves and surfaces in 2D/3D.
1/13
A dependency-free C11 library for parametric curves and surfaces in 2D/3D.
13 curve families, 5 surface types, one source that compiles as C, HLSL, GLSL, and Halide.
github.com/soufianekhiat/qaws
2/13

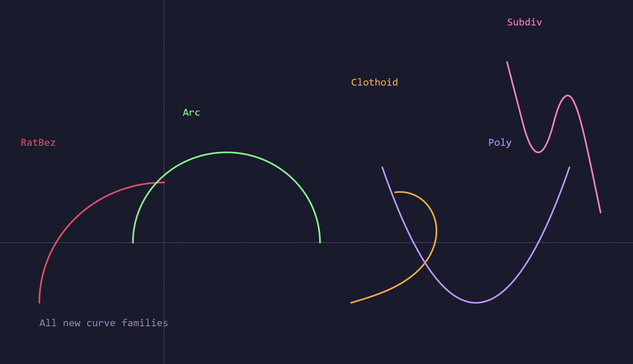

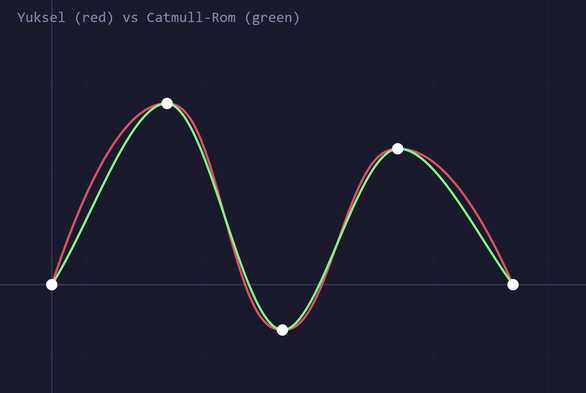

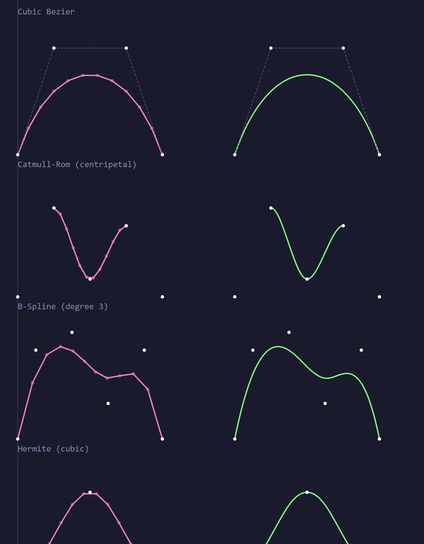

Curve families:
Bezier, Hermite, Catmull-Rom, B-Spline, NURBS, Trajectory, Yuksel C2, Rational Bezier, Arc, Polynomial, Clothoid, Subdivision, Composite.
All share the same eval/sample/traverse/inspect API after creation.
3/13

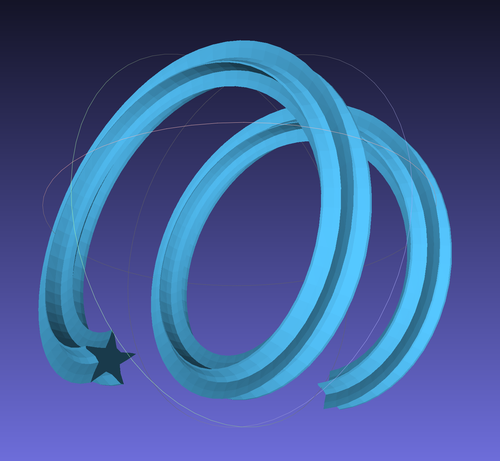

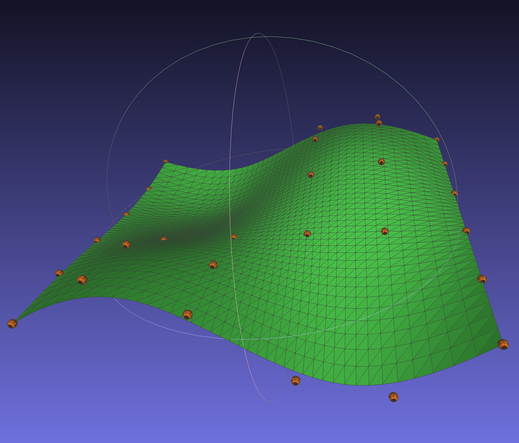

Surfaces:
Bezier patch, B-Spline, NURBS, Swept (profile along path), Ruled (linear blend of two curves).
Evaluation gives you the surface point, partial derivatives, and normal in one call.
4/13
Evaluation:
- Position + derivatives up to D3
- Per-span eval for splines
- SIMD batch eval (AVX2, SSE2, NEON)
- float or double via compile-time switch
5/13

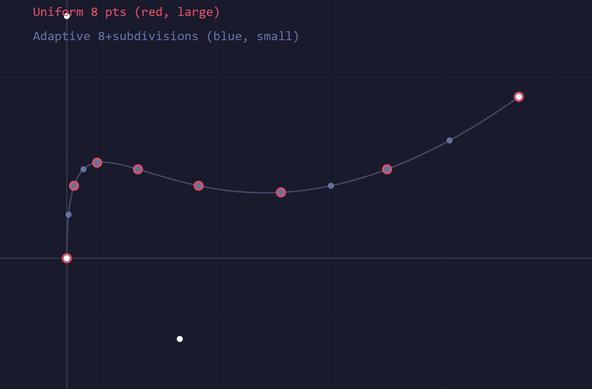

Sampling modes:
- Uniform
- Adaptive (error-tolerance)
- Curvature-weighted
- Feature-preserving (catches inflections)
- Streaming (callback, no big allocations)
6/13
Traversal:

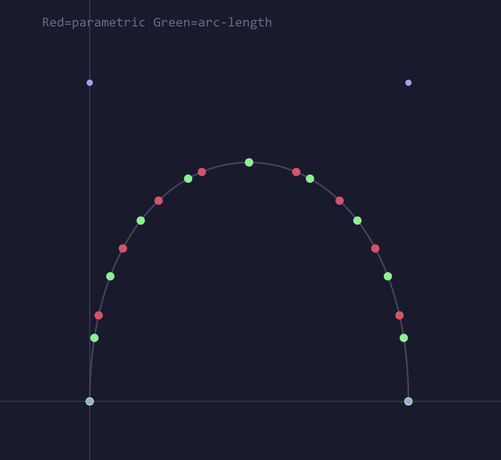

- Parameter, arc-length, or timed
- Motion profiles: constant speed, trapezoidal, S-curve, custom
- 10 easing functions
- Wrap: clamp, loop, ping-pong
- Multi-curve traversal
7/13

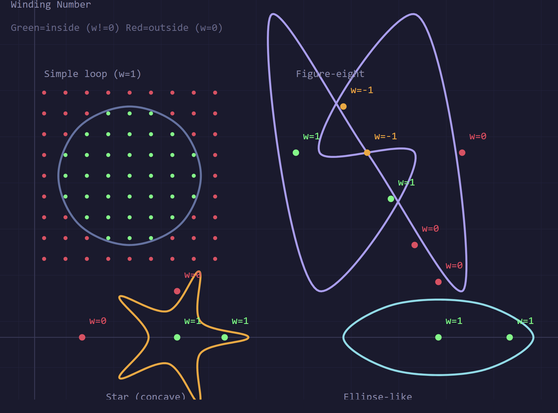

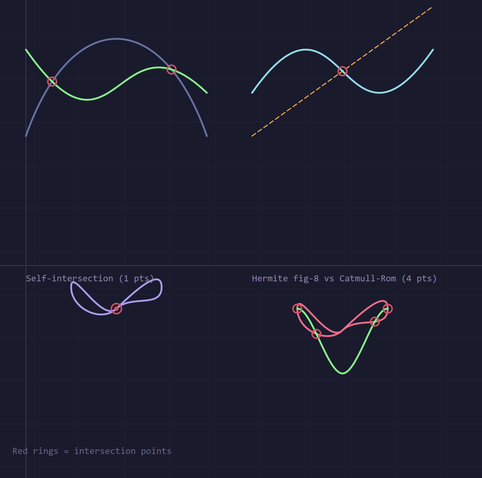

Inspection:

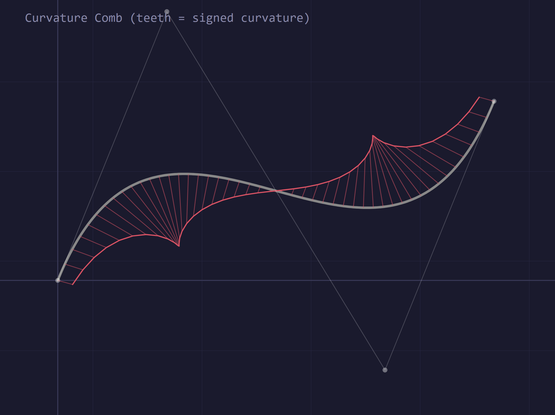

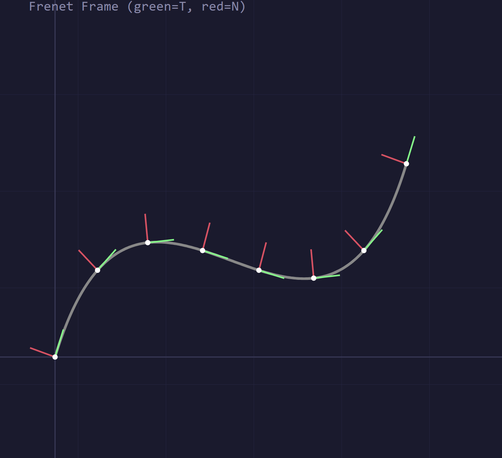

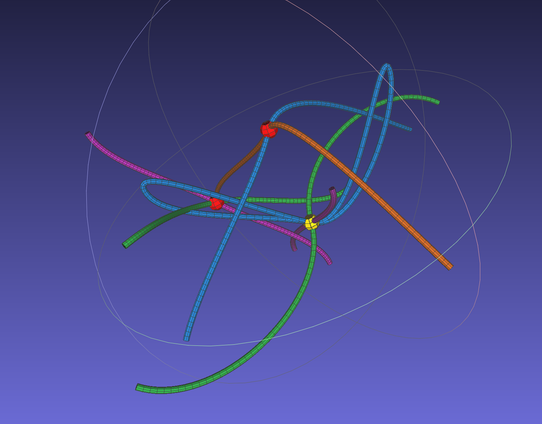

Arc length, bounding box, closest point, tangent, normal, curvature, torsion, Frenet frame, inflection points, extrema, winding number, curvature comb, curve-curve intersection, self-intersection.
8/13
Operations:
Split, join, offset (2D with self-intersection cleanup), reverse, arc-length reparameterization.
Conversions: Hermite/CatmullRom to Bezier, Bezier to B-Spline, B-Spline to NURBS, degree elevation/reduction.
9/13
Import/Export:
- SVG path data
- Polyline export (uniform or curvature-weighted)
- Polyline import as Catmull-Rom or Trajectory
- B-spline fitting (least-squares)
10/13
Multi-backend: the same core headers compile as C, HLSL, GLSL, and Halide. Write your curve math once, run it on CPU and GPU.
Prepare functions pack coefficients for CPU-to-GPU upload.
11/13
Design:
- Zero deps (C11 stdlib only)
- Immutable + thread-safe after creation
- Opaque handles
- Status codes everywhere
- Custom allocators
- Stack-allocated curves for hot paths (no malloc, degree <= 7)
12/13
Tested on Linux, macOS, Windows in both f32 and f64. CI on every push.
MIT licensed.
github.com/soufianekhiat/qaws
13/13
