Philip BraggMar 9

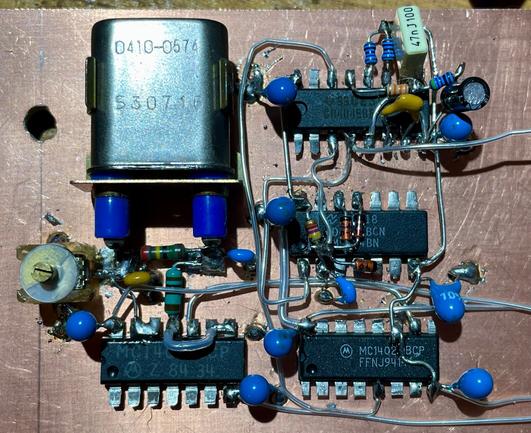

Pondering what to do with a nice chunky 2.048MHz crystal from a broken HP 3764A, I decided to make it generate 1216kHz for further Inovonics experiments. Their old gear often used this frequency as a master clock. #electronics
Show threadftg
@synx508
There's just something about this style of construction that I find aesthetically pleasing.
In addition to the large groundplanes.
I should do more of it myself as well.
Mar 9 at 11:23pmWeb
Show threadPhilip BraggMar 10
@ftg This one was supposed to be prettier but I ran into the 4024 reset issue and things got a bit messy. Also the loop filter is uglier than I intended because I decided, perhaps wrongly, that the capacitors should ground to Vss rather than the ground plane..If I'd had a 2ยต2 >25V bipolar it would've been nicer.
