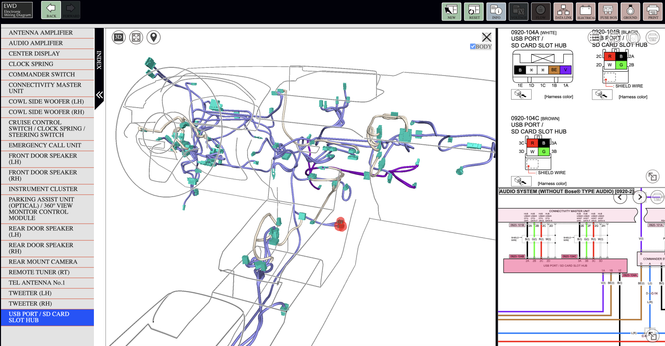

I don't know who needs to hear this, but the Mazda service system has FULLY INTERACTIVE 3D WIRING DIAGRAMS with zoom, rotate and pan 😩
Mar 8 at 6:10pmWeb
Show threadShizMar 8
you can move the different views between panes to focus on parts you see fit and navigate by simply clicking on the relevant parts, fantastic design
Show threadShizMar 8

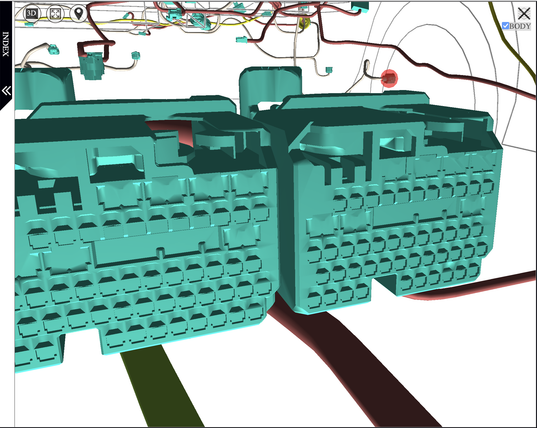

the sheer modeling detail, man
Show thread[HANDMAIDEN] xanMar 9
@shiz All hail the mighty Commander Knob
Show threadWilson "Beans Clock" ScraddockMar 8
@shiz now that's what i call zoom-zoom
Show threadArkadiusz WieczorekMar 8
@shiz give me the same for my renault 🙏
Show threadbug // juneMar 8
@shiz So cool ...
Show threadMartijn GeerdesMar 8
@shiz so are you planning any fix?
Show threadShizMar 8
@martijn_geerdes just want to map out my car's PCM (& other ECU) pinout so I can probe it more efficiently on the bench 👀
Show threadMartijn GeerdesMar 8
@shiz now i will look up pcm and ecu but already much in awe 😉 My Ford Fusion just gave an abs warning light. Off to the shop. Most possible just a reset. I hope.
Show threadShizMar 8
@martijn_geerdes ah dang, good luck! (ECU = electronic control unit, PCM = powertrain control module, a combination of the engine control module and the transmission control module)
