Craig BishopFirst blink on this XCVU13P board! We’re barely scratching the surface here…

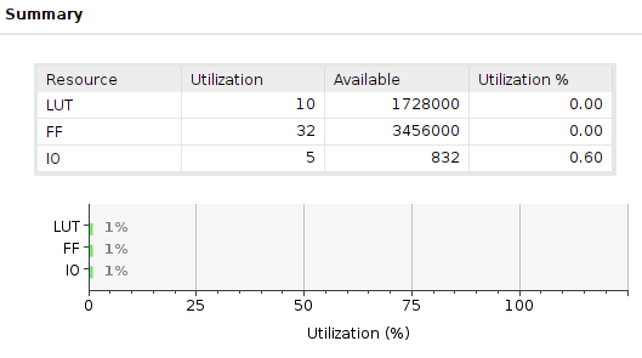

This is like using an Oak Ridge supercomputer to run Hello World.
I think I might be motivated to try adding SLR support to OpenFPGALoader. I'm so used to it now, it's weird using Vivado to load a bitstream.
The pins that I've reversed are going here, just in case someone else buys one of these boards.
https://github.com/craigjb/qmvu13p/blob/main/data/qmvu13p.xdc
I'm using the 100 MHz EMCCLK that I traced to pin AL20, but that's not a clock input so Vivado gives all kinds of angry critical and non-critical warnings (in addition to the usual soup). For now, I've silenced it with "set_property CLOCK_DEDICATED_ROUTE FALSE”, but it'd sure be nice to trace out a proper clock input. Maybe I do that next.
Or.... since I've found a GPIO pin, I think it's time for Core Score! @olofk Let's see how many SERVs fit in 1.7M US+ LUTs.
Award-winning Olof@craigjb Yes! That is _exactly_ the question I would have asked too :D
