jtbxNov 17

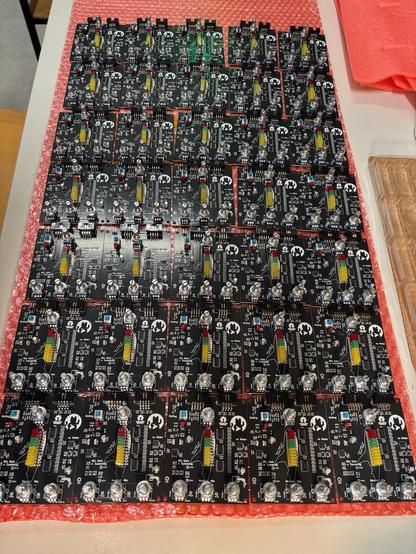

#c3lingo audio console "mass" production state: 12 devices with 3 channels each means 36 channel mixer and 36 headphone PCBs as well as 12 main I/O PCBs which need connectors, potentiometers and LEDs.
About 2300 of nearly 4000 soldering joints done by now
Show threadjtbx
Sadly the powder coating of the cases didn't work out yet since the oven to cure the coating is broken right now.

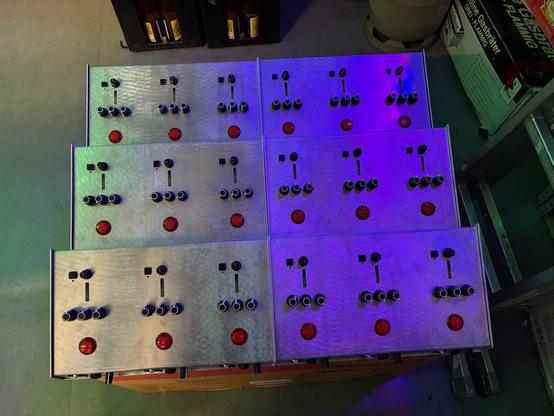

But all PCBs are soldered and 9 desks in total were assembled yesterday. Some provisional labels still need to be added, but otherwise they're ready to go for congress.
(Only 9 of 12 were built now since we need to disassemble them after congress to get the cases painted and we only need to deploy 8 this year.)
Dec 20 at 10:10pmWeb
Show threadDragoon AethisDec 27
@jtbx the consoles work very well in action, good job! :)
