vaibhav sagarDec 12
matt godbolt

Day 11 of Advent of Compiler Optimisations!

A clever loop that counts set bits using the "clear bottom bit" trick: value &= value - 1. Works great, generates tight assembly. But change one compiler flag to target a slightly newer CPU and something extraordinary happens to your loop. The compiler spots a pattern you didn't even know was there. What replaces your careful bit manipulation?

Read more: https://xania.org/202512/11-pop-goes-the-weasel-er-count
Watch: https://youtu.be/Hu0vu1tpZnc

#AoCO2025

Dec 11 at 1:12pmWeb
Show threadmatt godboltDec 11

Apologies the blog post didn't commit until just now...

Fixing my process so I won't make this mistake again too

Show thread🌸 lily 🏳️‍⚧️   θΔ ⋐ & ∞Dec 11
@mattgodbolt i'm banned off your website for some reason
Show threadМя ��Dec 11

@tauon same.

@mattgodbolt are you blocking Hetzner IP ranges or something broke?

Show thread🌸 lily 🏳️‍⚧️   θΔ ⋐ & ∞Dec 11
@mo @mattgodbolt would be funny if that was the reason, my ip address should appear as coming from my university lol
Show threadmatt godboltDec 11
@mo @tauon sorry I typod something in my deploy scripts...
Show threadМя ��Dec 11

@mattgodbolt last picture[1] still returns AccessDenied, but other parts of the page loads fine, tnx

[1] https://xania.org/202512/11-popcount-clang-opt.png

@tauon

Show threadmatt godboltDec 11
@mo @tauon thanks! On it! I tested this stuff haha but until you go live it's always a crapshoot
Show threadmatt godboltDec 11
@mo @tauon oops
Show threadmatt godboltDec 11
@mo @tauon fixed now. And my release scripts updated
Show threadMarcus MüllerDec 11

@mattgodbolt getting a
<Error>
<script id="__gaOptOutExtension"/>
<Code>AccessDenied</Code>
<Message>Access Denied</Message>
</Error>

when following your link

Show threadmatt godboltDec 11
@funkylab sorry about that; should be fixed now
Show threadMarcus MüllerDec 11
@mattgodbolt no need to be sorry; thank you for doing the Advent of compiler optimizations! It has definitely sparked some joy amongst me and a group of my friends!
Show threadsocDec 11

@mattgodbolt popcount, probably. :-)

Edit: Interestingly, the code you used in the video as a starting point is exactly what I use as a fallback when the CPU lacks a popcount instruction:

Show threadmatt godboltDec 11
@soc perhaps my overly marketing-ey social media made this one a bit too easy :-). But yes!
Show threadsocDec 11
@mattgodbolt Oooops ... apologies ... I didn't realize your post's intent. 😬
I just read the question, and answered it with the thing that came to my mind immediately.
Show threadsocDec 11

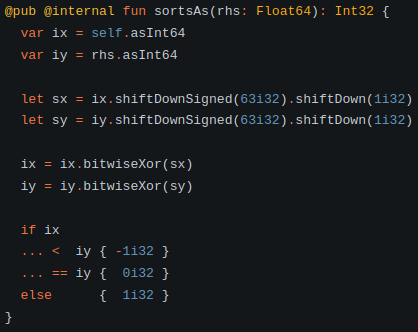

@mattgodbolt Makes me realize I still haven't checked whether my compiler intrinsic for sorting floating-point numbers by total order has any benefits over the written-in-code version ...
Show threadJari Komppa 🇫🇮Dec 11
@mattgodbolt sigh, I wonder what the best options would be for gcc to generate the fastest code on current hardware, portability be damned.
-O3 -march=native -mtune=native ...?
Show threadRobee? Na! 🌈Dec 11
@sol_hsa @mattgodbolt Me too! Always wanting to lower the CPU usage for my MAME builds 😀
Show threadMaciej SiniloDec 11
@mattgodbolt funnily, sometimes compilers tried to do that 'optimization' even if the target CPU had no popcnt :/ http://msinilo.pl/blog2/post/compilers-are-too-smart/
Compilers are (too) smart

Show threadSun Microdevil Pte LtdDec 11

@mattgodbolt Re:LLVM's loop deletion pass, I feel like this is something that should work regardless of the target (as long as it declares that it has the instruction), yet in practice it doesn't seem to happen all the time

e.g those for
- mips64 https://aoco.compiler-explorer.com/z/GxofKqr1n
- sparc64 https://aoco.compiler-explorer.com/z/o8jTfTzn4
In which it misses the opportunity to fold the loop

Compiler Explorer - C++ (x86-64 clang 21.1.0)

unsigned population_count_builtin(long long value) { // Note how this is compiled down to a single instruction always return __builtin_popcountll(value); } unsigned population_count_loop(long long value) { // But sometimes the loop stays intact unsigned result = 0; while (value) { value &= value - 1; ++result; } return result; }

Show threadSun Microdevil Pte LtdDec 12

@mattgodbolt Anyway, filed an issue report

https://github.com/llvm/llvm-project/issues/171969

Show threadFuture SprogDec 11

I knew pretty quickly which instruction the compiler would choose when you said, “population count”.

One server could not run the software I’d deployed. “Illegal instruction” it would say, then core. Some time spent in gdb and I discovered the popcnt instruction was the instruction in question, which led me to discover that this server’s CPU was very very old.

@mattgodbolt

Show threadvaibhav sagarDec 12
@mattgodbolt thanks for linking to my blog post!
Show threadfpDec 12
@mattgodbolt So I tried this out with Rust and saw the same codegen that you describe (kinda crazy!). However, I tried the -march=sandybridge thing, but it didn't emit the xor eax, eax you said. I did see it with C++, though.
How would one go about benchmarking if the sandybridge popcnt issue is real so that I might try to fix this in rustc?
Show threadmatt godboltDec 12
@fp take a look at things like uarch-bench by Travis Downs; setting up very subtle timing loops with carefully crafted dependency chains
