XenenicDec 2

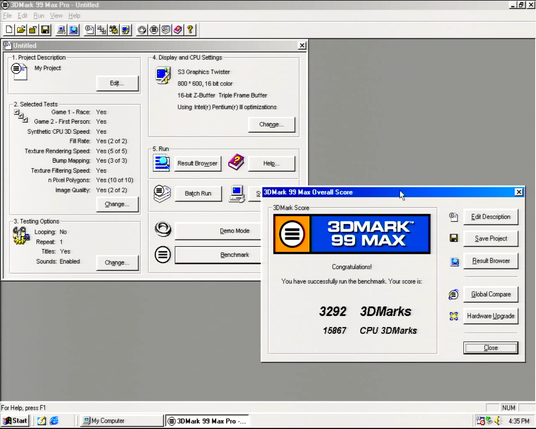

Getting back to some projects after a bit of a hiatus. First is getting two of my socket 370 industrial SBC fully tested for a couple of mini retro PCs.

I'm also working on a universal retro panel for industrial SBC but that isn't quite ready for public eyes yet.

Specs of the system are as follows:

* BCM EBC5612
* Intel Pentium III 1.13GHz
* 256MB RAM
* 64GB MicroSD to IDE
* ASUS DVD-RW

#RetroComputing #VintageComputing

Show threadJonas
@xenenic
What do you ferer to as a universal retro panel? A kind of display with some physical controls?
Dec 2 at 10:18pmWeb
Show threadXenenicDec 2
@magnetic_tape A general panel to breakout the common connections on the industrial SBCs I have. Current design has 2x DB9, 1x DB25, 1x VGA, 1x DVI, 2x PS2, 2x USB, and 3x 3.5mm Jacks. I'm currently working on the best way to do the PCB layout as a single panel. Each connector will be able to be snapped out and placed into customizable 3D printed IO shield for your desired connector configuration.
Show threadJonasDec 4
@xenenic
Neat!
