Completely rearranging one of my #modularsynth `within the limitations of the case. Also I have a huge spring reverb tank hiding in there. The Doepfer modules need a lot of depth and need to clear the handle recess and the power supply heatsink.
So first I'm doing a test fitting. Got a few more modules to put in.
I’ve set it up as to right now how the layout is on modular grid. Now i have to set up the power, try to balance each section. I’m not pegging, i’m at less than 2 amps on +12v, out of 3 amps on the #behringer Go case. This setup has seen so many changes over the past 10+ years, including the case.
The blank panel is not really blank, that is a placeholder for my spring reverb module. It has an audio in, audio out, level, on/off and blue led when on. #modular #synth
Then i’ll have to align all the sliding nuts and tighten everything. Probably should do a power on test before doing that, however… yes it is #behringer & #doepfer heavy, with a few #OiiiAudio modules (mixer, joystick, ring mod, buffered mult etc) and onesies and kits (dannysound vca, cem3340, events etc).
I used a lot of this (and some #dreadbox modules like Antidote/Karplus strong, now replaced by Brains aka Plaits - plaits didnt have karplus) for Reves Verberes #music https://soundcloud.com/francois_dion/sets/reves-verberes
Modular and semi-modular synth and sequencers album with some drum machine accompaniment. Recorded in 2022 and 2023 and mastering done in 2023. One year later, now available on soundcloud. Equipment
It doesnt look like it, but it has a lot of sound generation built into it. Obviously the model D is a full synth end to end and takes 1/4 of the case. The #behringer brains is another obvious sound source (almost self contained too).

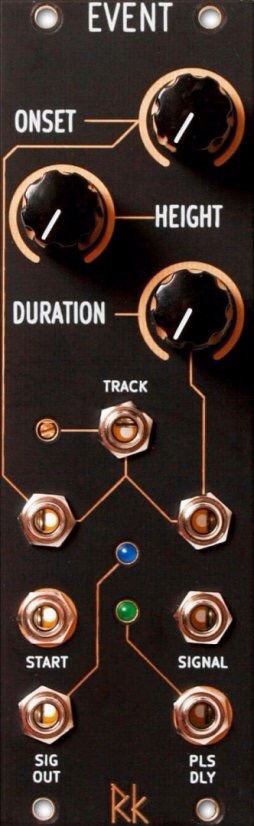

But other sound sources include the Rat King modular Event for #eurorack #modular #synth
It can be used as a vco, envelope, portamento, waveshaper, lfo and general clicky weirdness
