Update on Voyager 2, which lost contact with earth on July 21 due a mispointed antenna.
Voyager 2 is programmed to reset its orientation Oct 15; meanwhile, NASA is trying to make contact.
On Jul 31, the DSN station in Canberra picked up a faint signal, not strong enough to decode. It shows that V2 is healthy and calling home periodically as programmed.
On Aug 3, some commands were blasted out from Canberra (perhaps at higher power) in the hope that, V2 can decode it and repoint.
#Voyager
1/n
How can Voyager 2 decode a signal when its antenna is mispointed by 2°?
The graphic below shows the "antenna pattern" of the Voyager antenna. Most of the downlink energy is located in the narrow main lobe, but there is some energy in the side lobes too. The graphic shows 2 such sidelobes.
The uplink signal strength has similar but wider lobes, so it is possible for V2 to decode a high power signal from the DSN at a 2° offset. Here's hoping that it does 🤞
https://descanso.jpl.nasa.gov/DPSummary/Descanso4--Voyager_new.pdf
#Voyager
2/n

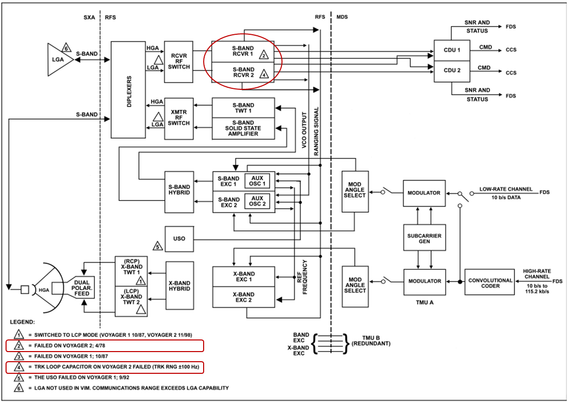

To make matters worse, only 1 of 2 receivers on Voyager 2 is healthy, but a fault prevents it from accurately tracking the receive signal. Signal frequency varies due to the rotation of the earth (doppler) and receiver temperature. V1 can track signals that are off by +-100,000 Hz, but V2 can only handle +-100 Hz. For V2, tx from earth is pre-compensated in freq, taking earth rotation and V2 temp. into account.
https://descanso.jpl.nasa.gov/DPSummary/Descanso4--Voyager_new.pdf
#Voyager
3/n

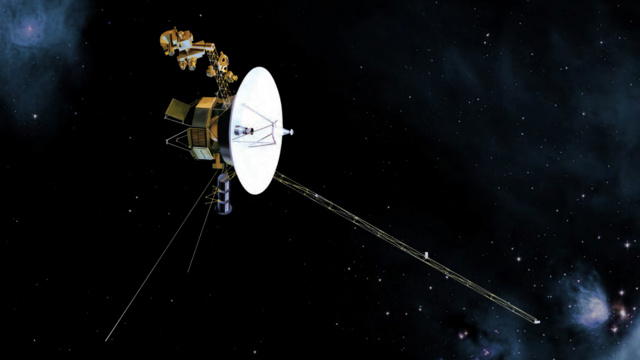

Attached: 1 image Oops! Earth has temporarily lost contact with the Voyager 2 spacecraft. A series of planned commands sent to the spacecraft on July 21 inadvertently caused its antenna to get mispointed by 2°. NASA can no longer send commands or receive data from Voyager 2 via the DSN. Voyager 2 is programmed to reset its orientation multiple times each year to keep its antenna pointing at Earth; the next reset will occur on Oct 15, which should restore communications. https://blogs.nasa.gov/sunspot/2023/07/28/mission-update-voyager-2-communications-pause/ #Voyager 1/n
Hallelujah. It worked! 😂
NASA has reestablished full communications with Voyager 2!!!
The commands sent from DSN Canberra on Aug 3 over S-band were successfully received by Voyager 2's mispointed antenna; the spacecraft is now correctly pointed towards earth.
At 12:29 a.m. EDT on Aug. 4, 2023, about 37 hours after the commands were sent (V2 is 18.5 light-hours away), science and telemetry data started getting received at DSN Canberra.
https://blogs.nasa.gov/sunspot/2023/07/28/mission-update-voyager-2-communications-pause/
#Voyager #Voyager2
5/n
