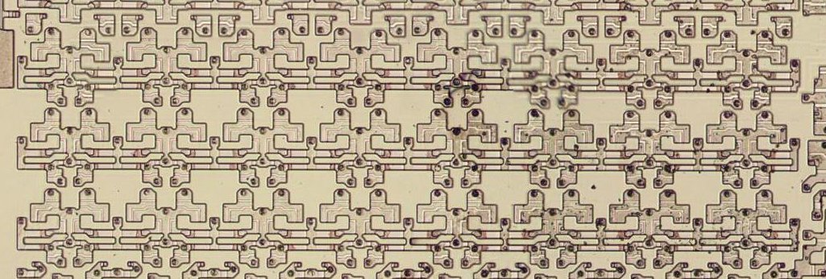

The 8086 has a 6-byte prefetch queue (photo), which is tiny compared to the megabytes of cache on modern processors, but it increased performance by about 50%. Intel ran a bunch of simulations to decide on the 6-byte queue (4-byte on the 8088 with its narrower 8-bit bus).
Show threadKen ShirriffJan 2, 2023

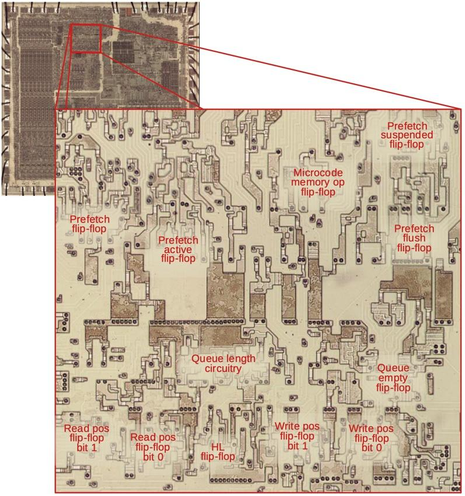

This diagram zooms in on the prefetch pointers and associated logic on the die. This circuitry takes up a significant chunk of the die.
Show threadKen ShirriffJan 2, 2023
A processor's program counter or instruction pointer (IP) keeps track of what instruction it will execute. But prefetching moves the IP ahead of its "real" value. Subtracting the queue length gets the "real" IP. A Constant ROM holds constants -1 to -6 for this correction.
Show threadKen ShirriffJan 2, 2023

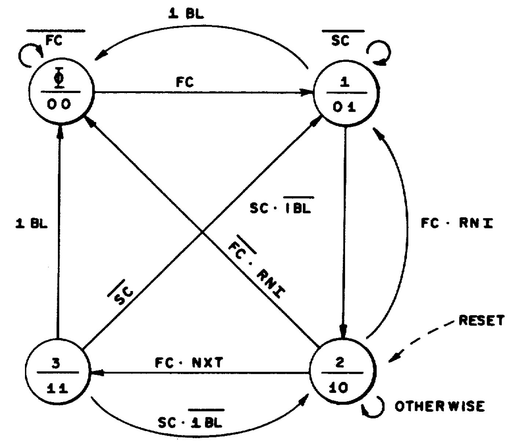

The interface between prefetching and the microcode engine was the "loader". This state machine fetched the first two bytes of the instruction from the queue. It also let microcode start the next instruction a cycle before the current one ended by pipelining decoding.
Show threadKen Shirriff
Prefetching added a lot of complications to the memory control circuitry since prefetches and "regular" memory accesses both needed to use the bus and needed to avoid conflict. My blog post has more information on how 8086 prefetching works: https://www.righto.com/2023/01/inside-8086-processors-instruction.html
