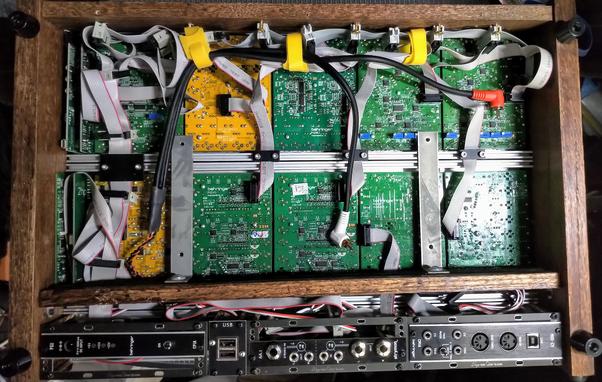

In the back, with cover and reverb tank removed. Bottom 1U has the power supply, a USB port, a strymon level converter and a midi to cv converter (the 3u modules are mounted in abyss devices adapters and adapter mounted to front rails back through long standoffs)

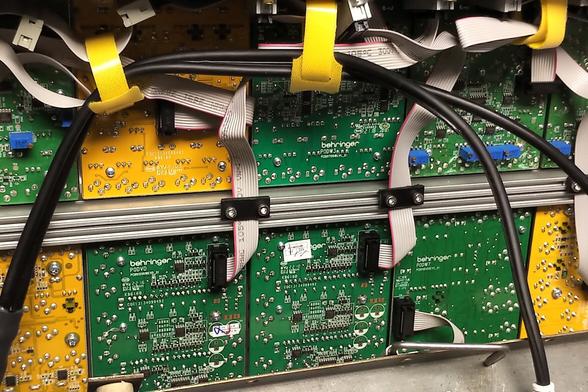

Cables are held in place through plastic clamps, fixed to the vector rails and power bus held by screws.

#eurorack #modular #synth #behringer #roland #system100m #diy

@Jyoti @composergreg @synths definitely saves time and a mess of wires. I really would like to add some normalled connections for my system 100m tribute, at least mimicking the original Roland CV and gate routing and the like.

I have to say that my modulars are prettier though 😁

#Roland #system100m #behringer

@forestine would that be considered small?

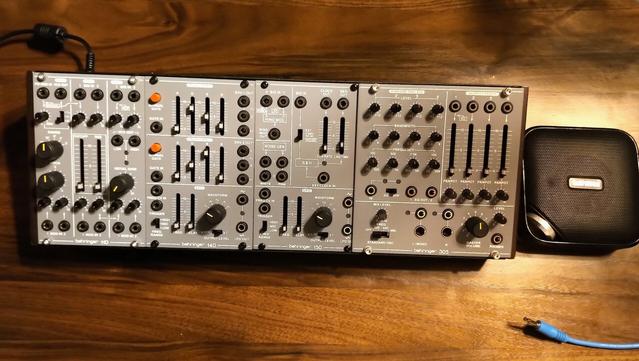

I call it System 100m micro 190.5 (halfway between a Roland 190 and 191J). 4 modules, complete synth. #Roland #system100m #behringer #diy #moog #skiff

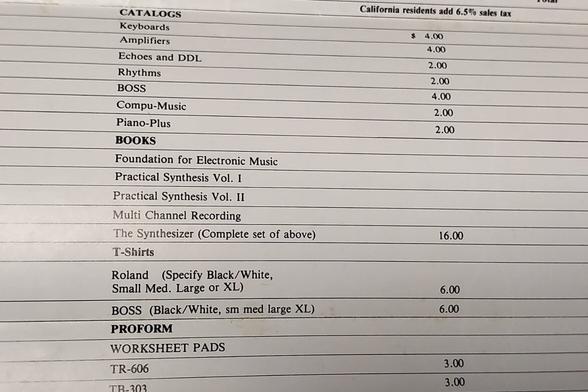

according to this little brochure, the book "The Synthesizer" (box set) was only $16, basically $4 per book, the same as what Roland charged for, say, their BOSS or Keyboard sales catalog! (In 1987)

#synth #synthesizer #book #Roland #system100m #modular #boss @synths
