And with that I think we will close our examination of Lunokhod 2, a remarkable mission in many ways. This was only the second time any vehicle had been driven remotely on another world (the first being Lunokhod 1), and I would rank them and the sample return missions as the greatest achievements of the Soviet Union in lunar exploration, on a par with their Venus results and far beyond what they accomplished at Mars.

Tomorrow... another orbiter.
#moon #luna21 #lunokhod2

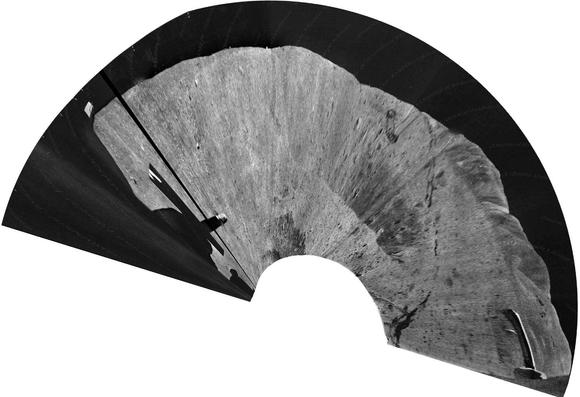

Early in our Lunokhod 2 sequence i gave a link to the Lunokhod 2 panoramas. Here is one of them:

https://www.planetology.ru/panoramas/images/big/lunokhod2_c/L2_D03_S05_P14m.jpg

Day 3, session 5, pan 14... it was taken at the south end of the triple traverse on 13 or 14 March 1973. One of my closeup maps shows that location with visible tracks around a crater. The crater is visible in this image. Across the crater are the day 2 tracks made on 19 February. My image here is a reprojection to show the tracks better. #moon #luna21 #lunokhod2

Their conclusion: the lunar daytime sky is too bright for useful astronomy. Night would be OK. This is attributed to dust lofted electrostatically or by impacts, and scattering sunlight.

This might seem counterintuitive. Surveyor and Apollo observations show some apparent effects of dust but the LADEE orbiter did not find much. Maybe the new Firefly images will help. Was there contamination of the Lunokhod instrument? We don't know.
#moon #luna21 #lunokhod2

While we are talking about puzzles, here's another. At points marked 'S' on the maps a measurement of sky brightness was reported. Here's the citation:

Severny, A. B et al., 1975. The measurements of sky brightness on Lunokhod-2. The Moon v. 14, pp. 123-128.

They measured in visible and UV, both day and night. The UV sky was a bit brighter than expected, but the visible light sky was 'off-scale' bright and still quite bright after sunset...

#moon #luna21 #lunokhod2

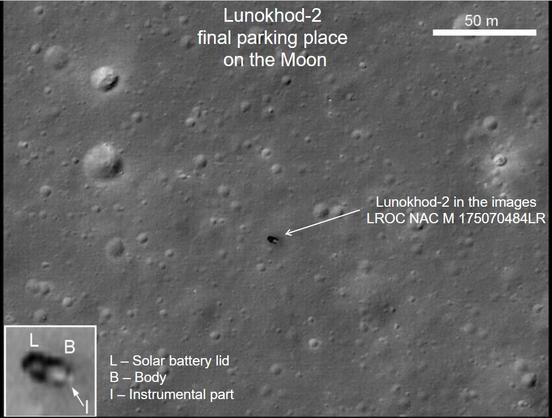

Here is another look at the parked Lunokhod 2 rover, a slide from the presentation I linked to earlier in this thread. It shows the assumed orientation of the rover, though it's a bit of a puzzle still. I talked to the laser team, who are having trouble understanding how they get any reflection at all from the reflector in that orientation - it is part of the instrument section at the front (right end) of the rover. #moon #luna21 #lunokhod2
These are the final close-ups of this sequence of Lunokhod 2 maps. At left, a complex bit of driving along the edge of the trough. Some of the maneuvers may be for making stereoscopic pairs of panoramas showing the opposite side of the trough. At right, the last drive and final rover position. It seems the end was sudden and did not leave time for the laser reflector to be pointed at Earth. Its reflections are very weak. #maps #moon #luna21 #lunokhod2

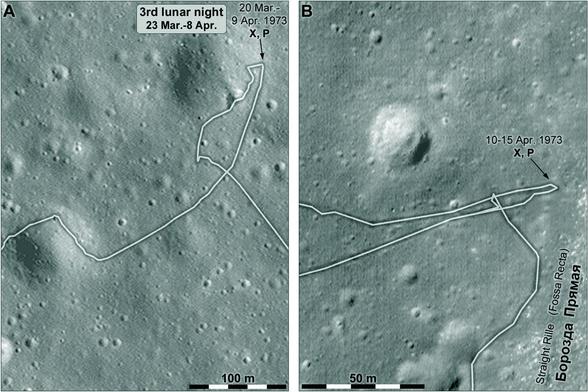

And 2 more maps like this. Here we see the third night location and the place where the rover arrived at the edge of Straight Rille, the long north-south trough.

We will have two more maps like these tomorrow.

#maps #moon #luna21 #lunokhod2

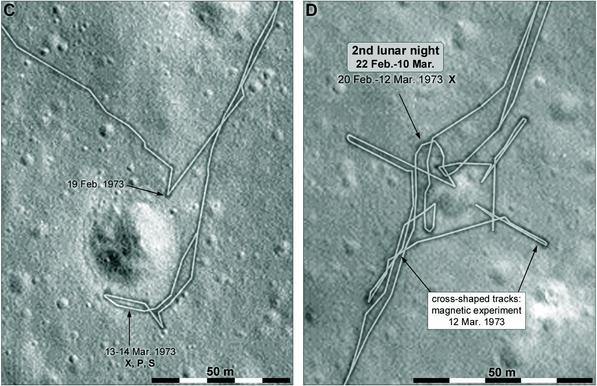

Here are two detailed maps of small parts of the Lunokhod 2 drive, this time from the 2nd lunar day, with the cross-shaped magnetic experiment tracks early in lunar day 3. The actual night position is a bit uncertain. It's great to have these wonderful images now, but the quest for something better never ends. Now it's 'we need 5 cm resolution to see details of the lander'. Oh, yes - and for geology.
#maps #moon #luna21 #lunokhod2

And that would not be so bad except that they had to promote it as 'our prof found a rover that had been lost for decades'. Suddenly this was picked up by other media and everyone knew about it. Obviously, VERY quickly, the correct story emerged and I had to deal with it. The next time I saw Sasha Basilevsky I apologised profusely, but he was very polite and forgiving about it. Memo to self - don't be stupid.

Tomorrow: back to reality.

#moon #luna21 #lunokhod2

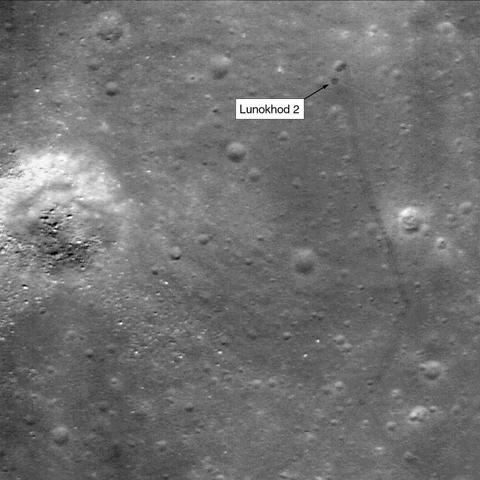

So this particular image got cropped, but rather catastrophically I cropped off the actual rover. Luckily nobody noticed... until I spotted that dark marking and thought it might be the rover. I made this image. You can see the tracks, but in this view you can't really see the extra branch of the tracks running further east and north. I showed a few people, and the next thing I new it was being promoted by our university PR people.
#moon #luna21 #lunokhod2
