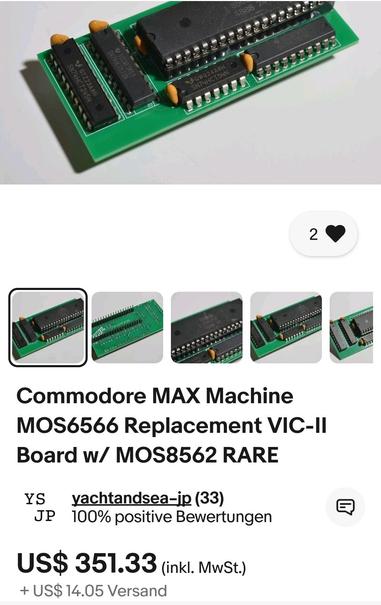

I see my VIC-II adapter for the #Commodore #MaxMachine has found it's way to eBay.
This is not my listing and the price is insane, even with the MOS6567 included. The license is actually non-commercial, but at least I was given proper credit.🤷🏻‍♂️
#RetroGaming #RetroComputing

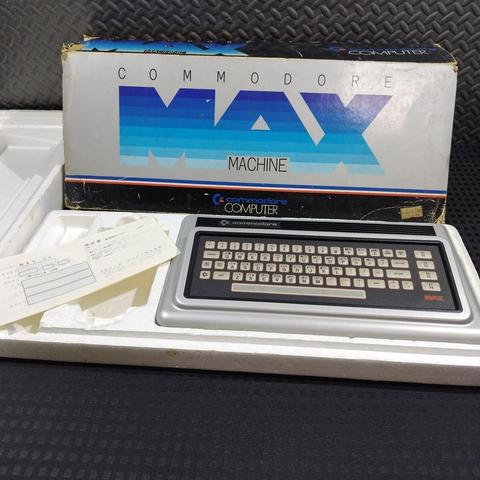

I'm totally intrigued by this #Commodore #MaxMachine on an auction site.
It comes in a box that I have never seen before and which is absolutely unusual for this model.😍
Seems to be from an era shortly before the #C64.
#RetroGaming #RetroComputing

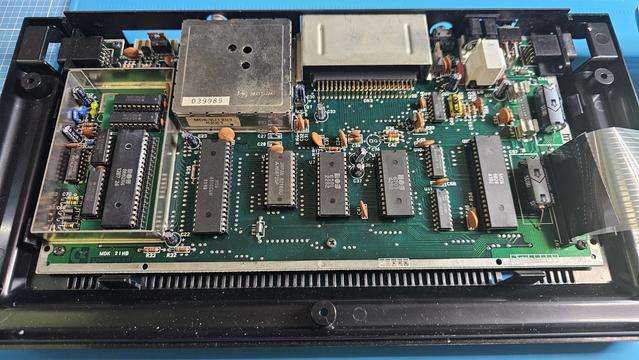

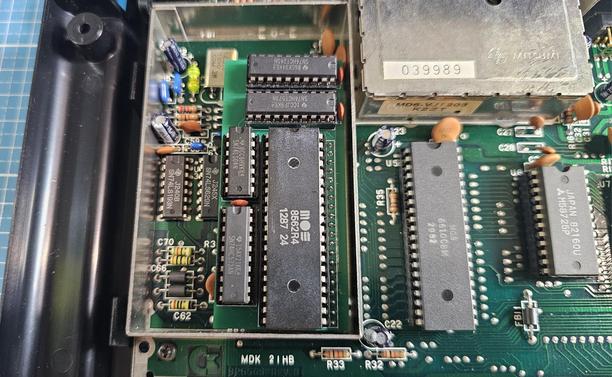

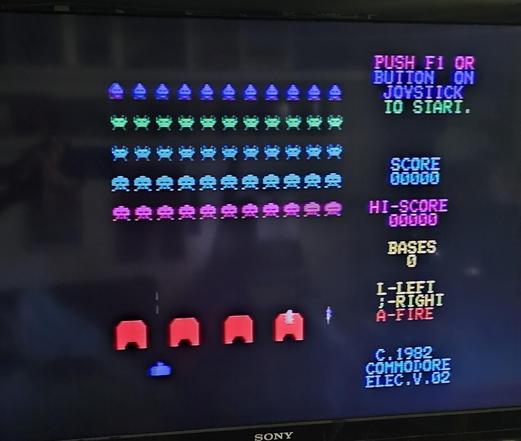

Eureka it works!🥳
This adapter replacement for the MOS6566 can either use a MOS6567 or a MOS8562.
With the latter the picture quality is even better and since it runs on 5V there's less heat.
Next step: Create an SMD variant.
#RetroGaming #RetroComputing #Commodore #MaxMachine #C64

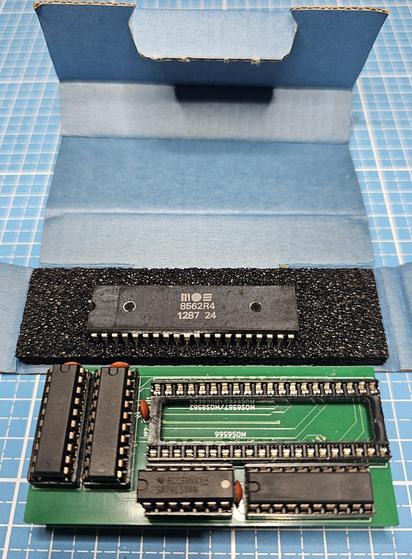

A generous friend sent me a MOS8562 for testing in my adapter.
I've already confirmed it works with a MOS6567, but these are harder to come by by the minute.
Should be an interesting test.🤞
#RetroComputing #RetroGaming #Commodore #MaxMachine

I am opensourcing my MOS6566 adapter board for the #Commodore #MaxMachine.
https://github.com/RetroWizzard/MOS6566_Adapter
You can also order boards directly from @PCBWay at :
https://www.pcbway.com/project/shareproject/MOS6567_MOS8562_to_MOS6566_Adapter_for_Commodore_MaxMachine_a653ed88.html
#RetroComputing #C64

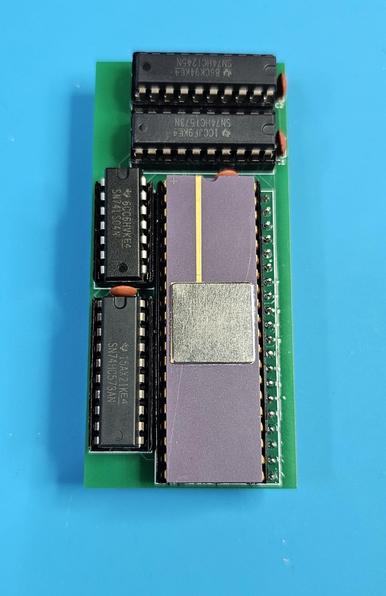

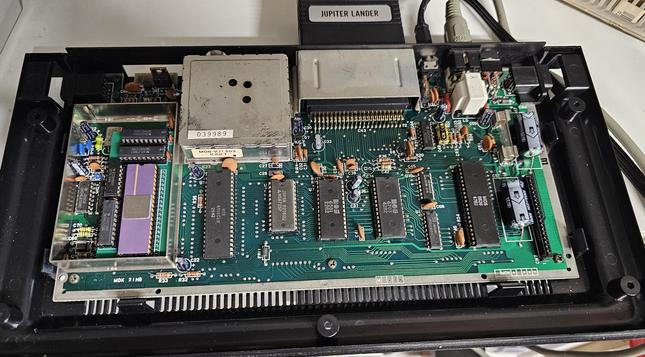

Success! The MOS6567/MOS8562 to MOS6566 adapter is working.🥳
So far I was only able to test it with a 6567 but I have a 8562 on the way.🤞
#RetroGaming #RetroComputing #Commodore #MaxMachine

The prototype pcbs for the MOS6566 to MOS8562 adapter have arrived. Aaand of course I missed something.🙄
Just cosmetics really, but the silkscreen writings for MOS6566 and MOS8562 are inverted.
#Commodore #MaxMachine #C64 #RetroGaming #RetroComputing

Added a logo to the MOS6566 adapter and ordered the pcbs.
Maybe I should put a warning near the jumpers that closing both will send 12V through your #MaxMachine.🤔
#Commodore #RetroGaming #RetroComputing

Finished routing the pcb for the MOS6566 to MOS8562 adapter.
I did it with a mixed approach, autorouter with manual cleanup.
Turned out quite OK, the 3D rendering isn't accurate though, because of overlapping footprints.
#Commodore #MaxMachine #KiCAD #Electronics #RetroComputing #RetroGaming

It's quite crowded on the board and I'm considering going SMD with this one. Well maybe I'll just make two versions.
#Commodore #RetroGaming #RetroComputing #MaxMachine #KiCAD #Electronics
