An Experienced Wood Firer Shares #Kiln Plans for a Small Instructional #WoodFiredKiln

Design your own wood kiln using these wood kiln plans!

by John Thies

Excerpt: "I set out to build a very versatile and efficient wood-firing kiln that could be used by students who had interest in a complete hands-on experience, from the preparation, loading, firing and unloading to the final clean-up phase. I didn't want to interfere with the successful larger firings, in which students can get a large volume of wood-fired pots without the in-depth hands-on experience. The new kiln would allow me to cut down on the extensive labor, fuel and overhead costs of my larger kiln.

I named the new kiln '#Manabigama' at the suggestion of my friend Phil Berneburg, former technical editor for CM. In #Japanese, mana means educational or learning, bi means a thing of beauty, and gama means kiln.

The Manabigama is a traditional design with a few simple modifications. I see it as a cross between an #AnagamaKiln and a #GroundhogStyleKiln. Basically, it is a crossdraft tube built into the side of a hill. The overall interior dimensions are 24 inches in width, 7 feet in depth, 40 inches in height. Its firebox is in the front, incorporated into the inside with a grate system, and extra air intakes are built into the front and sides. This is done to provide more secondary air intake to help burn green or wet fuel. The firebox is plenty adequate being 2 feet wide, 2 feet deep and 30 inches high from the floor to ware level. The chimney has inside dimensions of 9 inches deep by 18 inches wide and is 12 feet high. The shape is a long rectangle with two straight, 18-inch-tall side walls and a catenary arch built on top. This creates ample headroom for ease of loading, as well as extra height for stacking and tall pieces.

There is approximately 24 cubic feet of ware space, more than enough for teaching purposes. The kiln door is in front, only halfway down, and is bricked up including the stoke hole. It can be loaded in two to three hours, fires evenly to Cone 10-12 in eight hours tops, or if you choose, you can fire two to three days depending on how much ash buildup you like. The consumption of fuel is also minimal-less than half a cord of wood. When loading the wood kiln, be sure to use wadding to prevent pots from sticking to shelves.

All in all, the Manabigama is a very simple design to build. It is capable of yielding wonderful ash-glazed pieces with a minimum of labor, fuel and overhead costs. And it is a fantastic wood-fired kiln for teaching without the tremendous strain of a large three-chambered kiln."

https://ceramicartsnetwork.org/daily/article/An-Experienced-Wood-Firer-Shares-Kiln-Plans-for-a-Small-Instructional-Wood-Kiln

#SolarPunkSunday #WoodFiredKiln #DIY
#Kilns #Pottery #Quicklime? #DIYKilns #TraditionalTechnology #Adaptation

An Experienced Wood Firer Shares Kiln Plans for a Small Instructional Wood Kiln

John Thies, an experienced wood firer, shares his wood kiln plans for building a small, instructional wood kiln. If you've ever thought of building a wood kiln, don't miss the great information in the

Default

DoomsdaysCW Oct 26

#Wikihow - How to Make a #BrickKiln

Guide to making and using an easy #DIY brick kiln for firing #pottery

Co-authored by Tony Hoang

Last Updated: March 26, 2024

"Brick kilns have been used for thousands of years to create pottery, tiles, and other common objects. Whether of simple or complex design, all brick kilns use a wood fire to harden objects inside. You can easily make brick kilns once you’ve determined the needed dimensions and identified a flat clear area outdoors. By laying brick to build the kiln’s walls and covering it with a piece of iron or ceramic fiber for its roof, you can start firing your own pottery in no time."

https://www.wikihow.com/Make-a-Brick-Kiln

#SolarPunkSunday #WoodFiredKiln #DIY
#Kilns #Homesteading #Pottery #Quicklime #BackyardKilns #TraditionalTechnology

How to Make a Brick Kiln: 15 Steps (with Pictures) - wikiHow

Guide to making and using an easy DIY brick kiln for firing potteryBrick kilns have been used for thousands of years to create pottery, tiles, and other common objects. Whether of simple or complex design, all brick kilns use a wood fire...

wikiHow

DoomsdaysCW Oct 26

Building a Small Scale #WoodFiredKiln, Steve Mills Backyard Philosophers Kiln , pt1 the Big Picture

by Tending a Handmade Life
March 21, 2024

"On the New Moon of February 9th, 2024, I fired up my very own small scale wood fired kiln!

It's been a long held dream of 35 years and, when I finally got up the gumption to go for it, it took almost a full 2 years to collect all the materials, get the pole barn built and to finally construct the kiln.

I was first introduced to wood fired kilns back in the spring of 1989 when we were living in Davenport, CA. I got invited to participate in the firing of pottery legend Daniel Rhodes' two chamber Noborigama. For a variety of reasons, that firing turned out to be a life changing event, establishing my love of wood fired pots and setting me onto the creative, Tending a Handmade Life path I travel today.

The seed was planted ... so I waited and waited and knew when we bought our current little cabin and 7 acres in the mountains of Western North Carolina, this would be the place for my wood fired kiln dreams to come true.

But what would that kiln look like? Pretty much everything I could find online or in books revolved around complex designs and construction. About 3 years ago, I found a link to plans for a small scale wood fired kiln called the Backyard Kiln, designed by the late Steve Mills. Also known as the Philosopher's Kiln, it's a top loading/coffin style, designed to be easily and inexpensively constructed with regular house bricks and to be fired in one day with one or two people.

Amazingly, there was a free PDF with very precise details including a thorough materials list. Turns out the PDF had been turned into a little book as well [links below].

I very much wanted to build my kiln on the cheap, but was reluctant to use house bricks. New fire bricks for even such a small kiln would have run close to $2500 for just the bricks; shipping or driving hours to pick them up added even more to the cost. Feeling like a blessing from the Universe, I am fortunate enough to have a potter friend/benefactor/mentor gift me with all the bricks, a combination of hard and soft brick in a variety of sizes and shapes, as well as the kiln door plus several cordierite shelves for the damper and extra insulation inside the chamber.

The next big hurdle was getting a pole barn constructed. Thankfully, my husband Dave is a pretty decent carpenter. He retired from his full-time job last spring and we finally got to work on the barn last summer. A bigger challenge was finding budget silicon carbide kiln shelves. New ones in the size I needed run about $150 each plus shipping, which is a dicey proposition and very expensive. I scoured FB Marketplace, Craigslist and all other avenues I could think of. I finally connected with a regional FaceBook clay group and found my budget shelves for inside the kiln chamber, the lid and fire box lintels.

With my hodge-podge of bricks and materials, it took quite a bit of trial and error and a lot of angle-grinder cutting to make the best use of everything and configure how to use the handmade kiln door. I got started on building the kiln in mid-December and, after holiday and weather delays, finished the first week of February."

Learn more / watch:
https://www.youtube.com/watch?v=iAUSZoijbwo

Free PDF: https://stevemillsmudslinger.weebly.c...
https://stevemillsmudslinger.weebly.com/uploads/1/8/9/8/18980597/backyard_kilns_steve_mills_(1).pdf

Book with better pictures and easy to use layout: https://www.amazon.com/Backyard-Kilns-guide-build-Philosophers/dp/1511846453/ref=sr_1_1?asc_source=01HFY6QA7FYP0YEFD1ZY3XMFP8&tag=snx78-20

#SolarPunkSunday #Goals #DIYGoals #DIY #Kilns #Homesteading #Pottery #BackyardKilns #PhilosophersKiln

Building a Small Scale Wood Fired Kiln, Steve Mills Backyard Philosophers Kiln , pt1 the Big Picture

YouTube

Carsten Feb 20

#Introduction

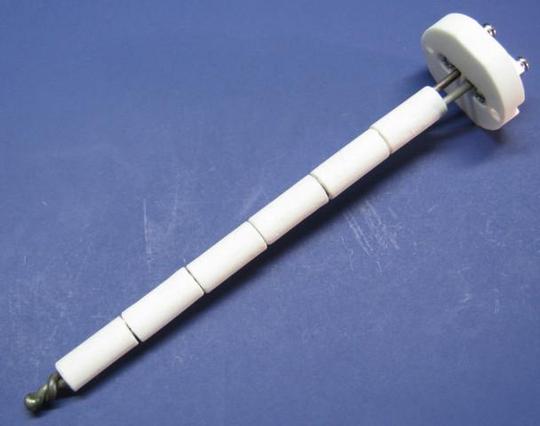

Hello World! This is the brand new Fediverse account of Minnesota Measurement Instruments. We are a small manufacturer of thermocouple temperature sensors.
We make high temperature Type K sensors that are used in #pottery #kilns . We believe in the right to repair and make specialty sensors for old and out of production kilns & ovens
We also supply sensors for science to everybody from vaccine manufacturers, universities, solar and electric car manufacturers to space agencies.

Global Museum Dec 25, 2024

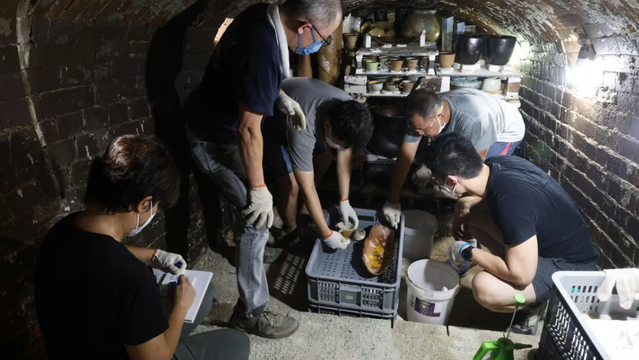

Inside a #Singapore dragon kiln where temperatures go up to 1,300°C | Nestled in an industrial estate in the western part of Singapore is an 84-year-old dragon kiln, the oldest & the only operational dragon kiln in the country https://www.channelnewsasia.com/today/photo-essays/pictures-singapore-only-operational-dragon-kiln-firing-rare-gathering-4745411 #pottery #ceramics #kilns

In Pictures: Inside a dragon kiln where temperatures go up to 1,300°C

Nestled in an industrial estate in the western part of Singapore is an 84-year-old dragon kiln, the oldest and the only operational dragon kiln in the country. Built in 1940, the kiln at Thow Kwang Pottery Jungle was originally used for the mass production of household and industrial items such as cu
