Today I found the time to finish the #wiring 🫠.
I used some smaller #contactors that I found in my stash. I then simply applied voltage to it as a test. The first contactor also switched directly every second because a program was still active on the #controller.
Now I just need to program the controller, which won't be a big deal.
🧵1/6
#SiemensLOGO #PLC #ProgrammableLogicController #SPS #Kleinsteuerung #RCD #TerminalBlocks #wire #wires #Weidmüller #ABB #Siemens
Contactors, More than just a Relay

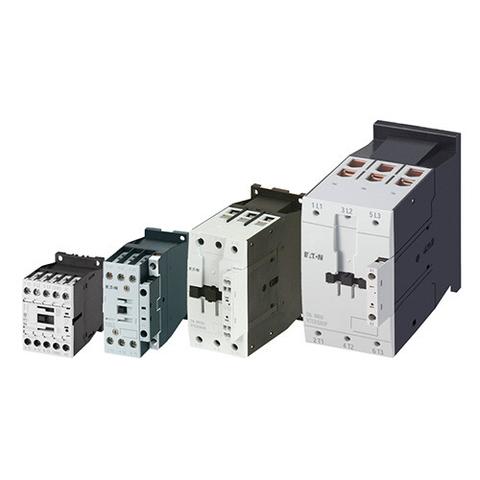

Four of Eaton's XT IEC lines of three-phase contactors.
Contactors are more than just a large relay, their internal construction is designed to be capable of carrying far higher currents and "making and breaking" on large loads.
Rather than moving the common contact back and forth on a pivoting armature, contactors move a large bar towards or a
https://philipmcgaw.com/contactors-more-than-a-relay/
#Post #Automotive #Contactors #Electronics #Relays
Virtual Pinball - Visual Pinball mit den Schützen als weiteres Force Feedback
https://tube.tchncs.de/videos/watch/f4d16f20-97b2-4d59-b225-c485368ee46a
