Pretty pictures of the 16702a are incoming.

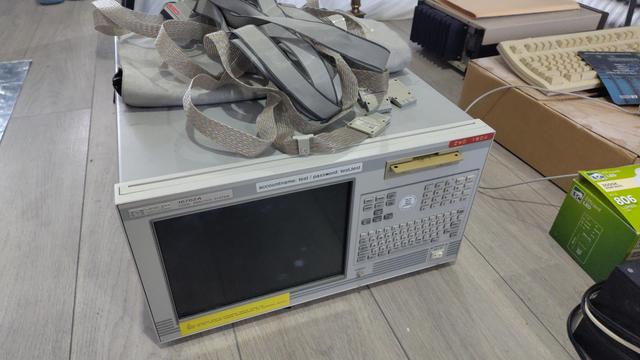

Here is the front panel!

#16702a

In case you want to download any of the installation media for the #16702a or the #16702b they are on archive.org

https://archive.org/search?query=subject%3A%2216702A%22

Internet Archive: Digital Library of Free & Borrowable Texts, Movies, Music & Wayback Machine

Everything is clean and back together, testing the #vga output now looks good!

#16702a

This is the #HP #16702a logic analyzer restoration thread. It covers cleaning up pcbs against corrosive glue, replacing the harddrive and cleaning the device and case alltogether (ita extremely sticky)

A more cohesive story will eventually land on https://museum.dantalion.nl

Special thanks to @tubetime and @CuriousMarc for the inspiration over the years!

@tubetime hej! Guess what I got for next to nothing, still passes selftests! I have a 16717a and 16522a card. Any tips on apprehending the glue of death noghtmare before its to late? #16702a
