Evan KahnFeb 27, 2025

@kicad response to this is illuminating.
It seems that they're proud to be taking money from / promoting a defense contractor.
If FFX is reciprocally proud of using KiCad and being part of an open-source organization that serves a global audience, how about they post about what they're building with it? Just to clear the air.

From: @[email protected]
https://fosstodon.org/@aleksorsist/114054141629312724

Aleksorsist (@[email protected])

Attached: 1 image I went to download KiCad 9 stable and saw the big "far field exploits" badge on their donation drive since they're matching donations. Ok, so it's some infosec thing, wireless stuff maybe? I click on the badge and get this shit. You can't really stop your open source project from being used by these types, but you don't have to accept them as a sponsor and advertise them.

Fosstodon
Evan KahnOct 30, 2024

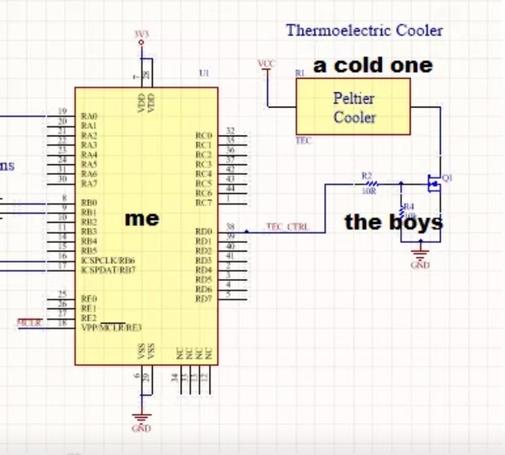

here's a meme from my photo roll ca. 2017, im pretty sure i made it
Evan KahnAug 27, 2024
Show threadD-Lev Engineering CodexAug 27, 2024
@ Theremin people: these are not quite ready to productize / sell yet.
However: if you have an electrical engineering / embedded systems background and I've talked to you at some point in the past three years about participating / contributing to the project, now may be a good time to get involved. -ESK
Evan KahnAug 27, 2024
Show threadD-Lev Engineering CodexAug 27, 2024

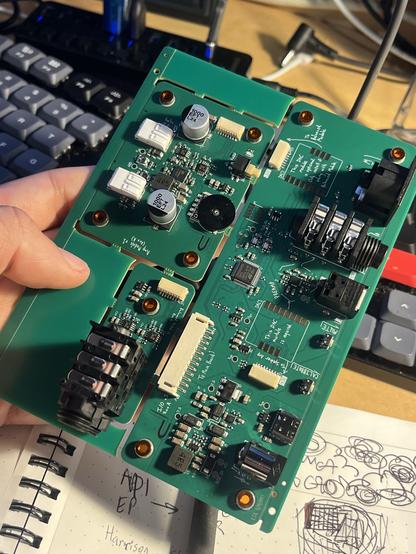

When (if) these boards work, they will feature a few original circuits:
- flexible power supply: standard 5V USB, or a barrel jack adapter or 12V USB-C/PD
- Dual, modular ESS DACs; the secondary DAC is optional, and drives an offboard, isolated balanced stereo out

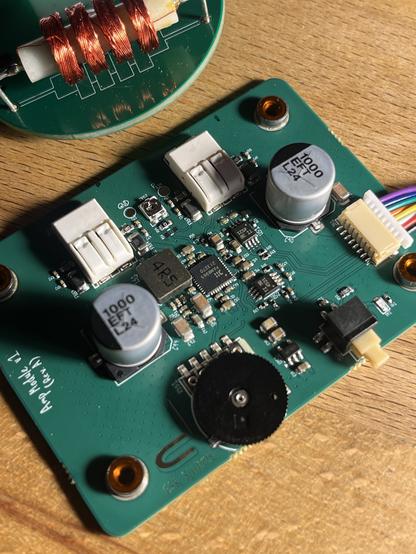

- 93% efficient, class D speaker amp that can drive up to 12 watts per channel into a 4-ohm load, with a 3-9V input voltage range; based on a relatively new IC from Diodes Incorporated
- Onboard USB/Serial and USB/MIDI conversion
Evan KahnAug 27, 2024
D-Lev Engineering CodexAug 27, 2024

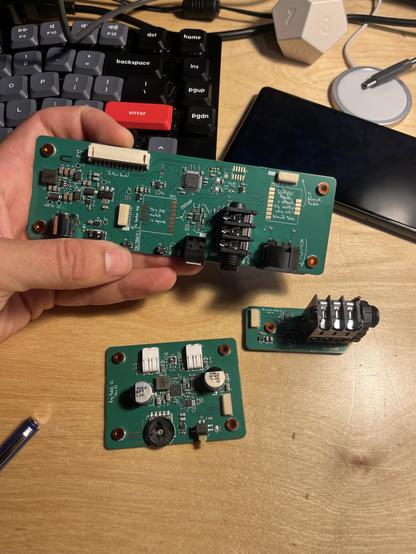

At long last, beginning work on new multi-board I/O assembly with option for dual modular DAC, buffered balanced output, and 12Wpc speaker output with USB Power Delivery. With many many thanks to @sidprice and @jaxter184 on the overall systems design and architecture planning back in January, as well as Raph A., and Kate W. from the NYC Resistor community.
Evan KahnAug 7, 2024

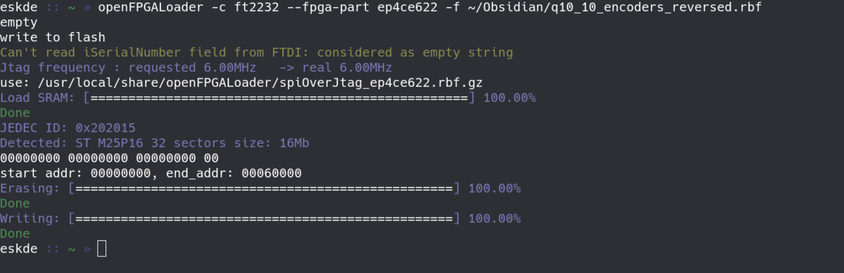

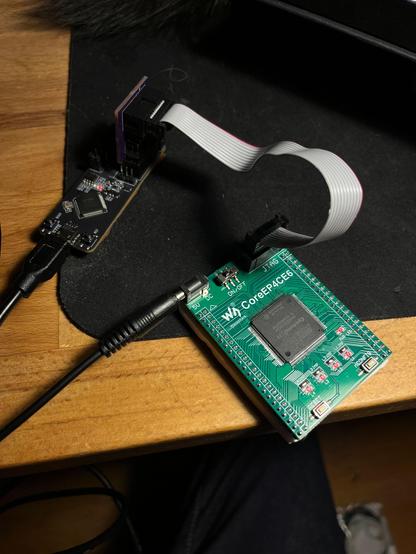

Hypothesis confirmed: you can totally program an Altera FPGA using the wildly over-specced ESP32 programmer that sells for $10 on Amazon.
Evan KahnJul 27, 2024

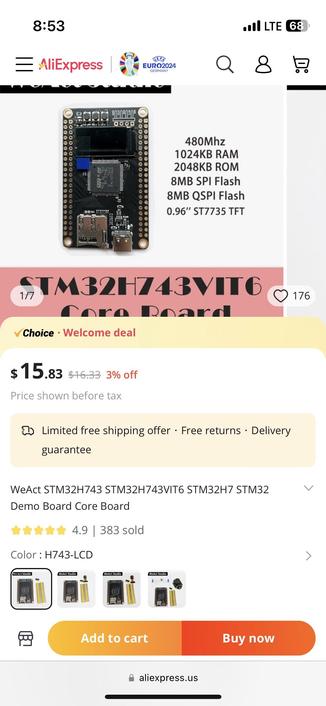

pretty crazy that for $15 you can get a processor strong enough to develop pretty much any consumer product. can't imagine what the equivalent of this would have cost in 2005
Evan KahnJul 15, 2024
Ugh, the Altium Academy PCB design review guy is a trump supporter
Evan KahnJul 12, 2024
FPGA people: I designed a simple breakout board that should hopefully enable the use of a dirt-cheap ESP32 programmer to flash Altera FPGAs. https://github.com/wormyrocks/espprog-to-altera
GitHub - wormyrocks/ESPProg-to-altera: Adapter to turn an ESP-Prog into an inexpensive FPGA programmer for use with openFPGALoader.

Adapter to turn an ESP-Prog into an inexpensive FPGA programmer for use with openFPGALoader. - wormyrocks/ESPProg-to-altera

GitHub
Evan KahnJul 5, 2024
many of the world's problems would be solved if joe biden could simply be convinced to eat a whole bag of flamin' hot cheetos
