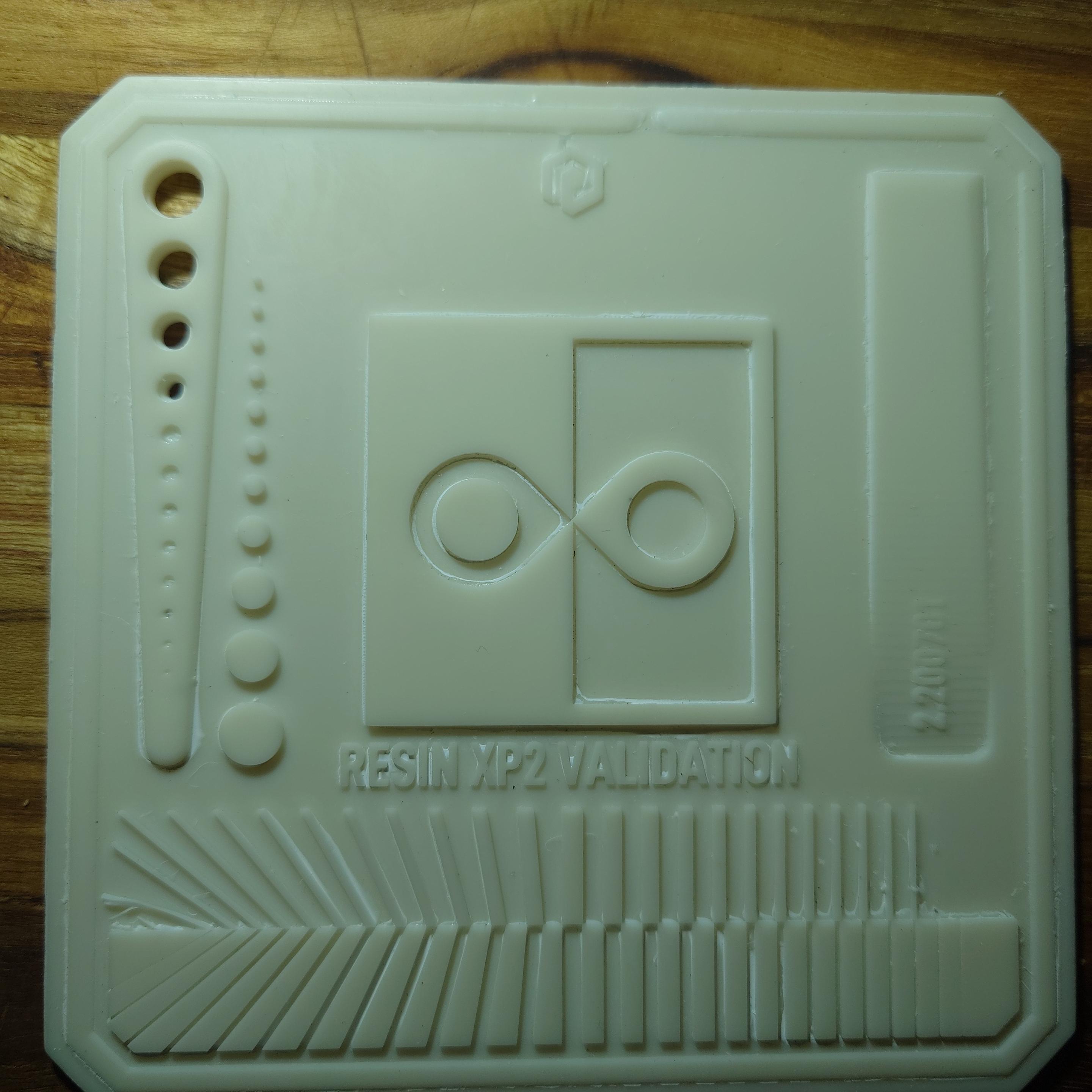

I finally had an area to setup the resin printer i got almost a year ago. Did initial setup, bed leveling, and set out to test with this benchmark I’ve seen around. It’s an elegoo saturn 2 printer, I’m using CHITUBOX basic as the slicer, all settings were the default it gave for this printer other than adding 0.5 wait time to before lift (default 0) , and bottom layer count to 8 (default 5) I used the elegoo washing station for 10min then the curing station for 10min. There seem to be a lot of rough lines and the right side line ramp is barely visible at all. Not sure what this suggests needs adjustment and would appreciate some help getting into the correct direction. I did do some looking around and at least it seems i should try 4 base layers only on this according to one of the places i found it hosted. Other than that I’m not sure how to clean it up more

LordKitsunaApr 9

Good Self hosted MDM?

https://lemmy.world/post/27971096

Good Self hosted MDM? - Lemmy.World

I have been trying to look around But it seems like many of the options are either very limited for the self-hosted With a lot of options missing, have poor documentation, or don’t support android. I am attempting to find a replacement at work we are currently using Premier Wireless and I’m not at all happy with it. I don’t have a lot of requirements from such a service I mainly just need to be able to have a kiosk style screen on a tablet where only the apps I want are shown, remote pushing of app installs, wifi settings, and limiting access to settings. Does anyone know of a good self hostable solution for this?

LordKitsunaAug 6, 2024

Average Amazon user intelligence

https://lemmy.world/post/18362270

Average Amazon user intelligence - Lemmy.World

Sometimes it makes you wonder how they manage to even find the reply button

LordKitsunaJun 5, 2024

What's with the insane level of recalls of late?

https://lemmy.world/post/16195697

What's with the insane level of recalls of late? - Lemmy.World

This is a sort of “meta news” post. Product recalls happen all the time but I’ve noticed lately that my feed is just filled with more and more and more and more of them happening sometimes multiple times a day. Everything from ground pepper to every type of chicken you can imagine to ice cream to whatever else am I crazy or does it seem like practically every category of food product is suddenly getting recalled lately due to dangerous contamination?

LordKitsunaAug 3, 2023

Where is the login

https://lemmy.world/post/2604252

Where is the login - Lemmy.world

I feel like I’m going insane, I can see people talking about logging in. I have seen screenshots of the login screen. And when I attempt to submit a post or something it tells me I need to be logged in to do that. But I cannot for the life of me no matter how hard I search the settings find somewhere to log in. I have tried searching for account, login, profile in the settings search and found nothing I have manually gone through every single category and cannot find anywhere to log in. I have attempted to completely uninstall and reinstall the application. This is either the most elaborate gaslighting attempt against some random asshole in history or there is something wrong with my app

×
LordKitsunaApr 14

Help interpreting benchmark results

https://lemmy.world/post/28196833

Show threadbenigninterventionApr 14
What is your retraction distance? It almost looks like it’s not leaving the bed enough to allow the resin to flow. I might be wrong, it’s been a while since I messed with mine, but I had issues during setup with it not retracting enough. Maybe add some distance and slow that part down a tad
Show threadLordKitsunaApr 14
I used the default provided, but that’s a good guess I’ll give it a little extra distance and maybe add a little extra wait time after retraction to see if that helps
Show threadremoteloveApr 14

I see a lot of inconsistent exposure, which is super weird.

How old is the resin? New? Was it purchased at the time you got the printer? Was it well shaken?

The biggest issue I see is the gap in the outline at the very top of the print. That shouldn’t happen that late in the print at all. It’s iffy resin or there are small solid chunks floating around in your tank.

My first week with my resin printer was spent testing exposure and probably did about a hundred or so “cones of calibration” ( tableflipfoundry.com/…/the-cones-of-calibration-v… ) with a few different resins.

While a person generally needs to be a little on the crazy side to do that much testing, it was effective. After all of the that testing, what I found out is that comparing two prints with different settings is more valuable than just printing one single calibration test.

See if you can manage to print at least 8 tests at 8 different exposure levels. (I prefer 16, but you do you.) You will quickly learn how to interpret calibration tests and how exposure works.

But, back to your question and my official interpretation: You have a printer that is capable of printing! Yay! I ain’t being sarcastic, actually and this is good.

The Cones of Calibration V3 - TableFlip Foundry

Welcome to the official guide for the Cones of Calibration V3, the ultimate tool for achieving flawless resin 3D prints. Whether you're a...

TableFlip Foundry
Show threadLordKitsunaApr 14

The resin was from when I bought the printer. was shaken, and poured in with the included filter funnel, it didn’t seem to be having any issues mixing, tho it is an “abs like” white resin so maybe i need higher exposure time? I’ll check the elegoo site it’s one of their resins i know some of them have setting recommendations.

Thanks for the link I’ll give cone of calibration a try and see where i can get with that

Show threadremoteloveApr 14

Resins have a typical use-time for within a year. Some may last longer, some may not. Some may start to show exposure issues. Some just start to separate or solidify partially. Some resins don’t care at all. (It should be written somewhere on the bottle when the resin was made and when it should be used by.)

This is a helluva “unknown variable” you are working with, is my point. Resin is the absolute core of any printing functionality (obviously) and print settings are highly dependant on the resins qualities.

Just because I am so damn picky during my testing and learning process, I would abandon testing with that resin completely and be thankful it even printed a calibration test at all. (I would get a fresh bottle, is what I am saying.)

However, in the interest of using the resin, I would YOLO the exposure time (increase it) and start printing prototypes or other strange experiments. There is a bunch of things I could test even if using a sub-optimal resin.

You could spend time with the rest of that bottle and tweak the settings into partial-perfection. How reusable are those settings for future bottles though?

Show threadLordKitsunaApr 14

That’s a fair point, the date on the bottle says it should be good for another year apparently but it wouldn’t hurt to get a fresh bottle just to be safe. It does look like I would need to fuck with the exposure time regardless since it’s a bright white resin it appears to need longer exposure. I also have a clear resin which apparently needs even more exposure.

At the very least I know I have good build plate adhesion because God damn some of these have been difficult to get off I actually slightly scratched my build plate in one spot a little bit getting some of them off I need to be more careful and use the plastic spatula not the metal one

Show threadbenigninterventionApr 14
Color and age definitely matter too. Each resin should also have a configuration table you can import into the slicer. I use Sirya and they offer data sheets and configs from their website. Not sure which other resin manufacturers do the same
Show threadLordKitsunaApr 14
I’ll poke around, it’s an elegoo resin and if I’m not mistaken they at least offer some recommended setting changes somewhere on the website for their resins
Show threadroofuskitApr 14
Your probably just need to shake the shit out of it. Shake it until you’re too tired, then shake it a lot more.
Show threadremoteloveApr 14
Second this.
Show threadroofuskitApr 14
Adding to the cones recommendation that UV Tools has a function to let you run multiple exposure tests on the same plate.
