i need the fedi intelligence: where can I find vectorized bongo cats, blahajs, ... for PCBs?

I wanna add some cute art to mine, but I can't find things to put on there

EDIT: I've now decided to do so myself: https://codeberg.org/tyalie/cutsy-cad-graphics

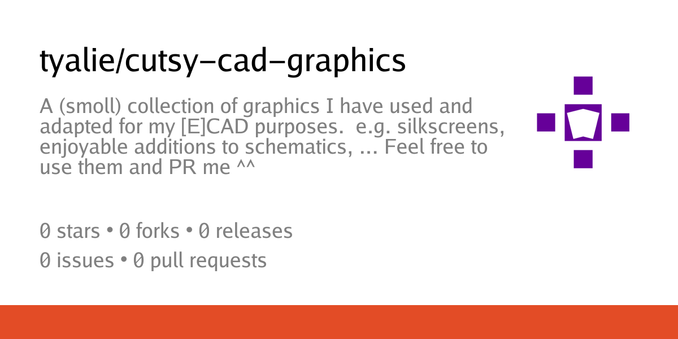

cutsy-cad-graphics

A (smoll) collection of graphics I have used and adapted for my [E]CAD purposes. e.g. silkscreens, enjoyable additions to schematics, ... Feel free to use them and PR me ^^

Codeberg.org
Show threadSophie Tyalie (☎️ 7098)

This is actually quite fun. Figured out how to import graphics into #KiCad onto different layers (and created an ANTIFA whilst doing so).

I also added @cccpresser blobhaj with soldering iron :D It was actually the reason that I did the fedisearch yesterday

Jun 14 at 11:38pmWeb
Show threadcpresserJun 15
@tyalie the soldering blobhaj was done with https://gitlab.com/gerbolyze/gerbolyze by @jaseg
Its a nice piece of software for making graphical footprints.
gerbolyze / gerbolyze · GitLab

Gerbolyze: Put high resolution, high detail graphics directly into gerber files. Compatible with all CAD tools!

GitLab
Show threadgnarfJun 15

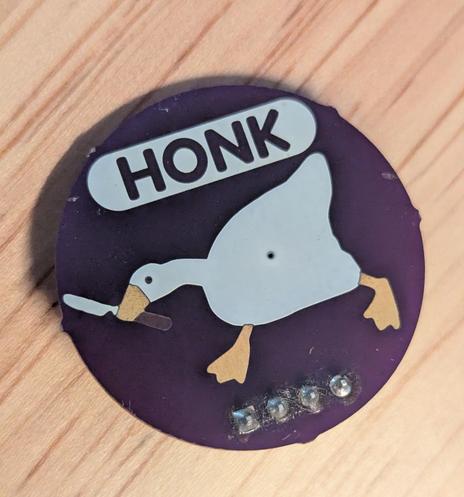

@tyalie @cccpresser Hehe, so begins the dark path of PCB art! May I introduce you to my mischevious little friend?
Show threadSophie Tyalie (☎️ 7098)Jun 15
@gnarf @cccpresser i hope the PCB honks >.<
Show threadgnarfJun 15

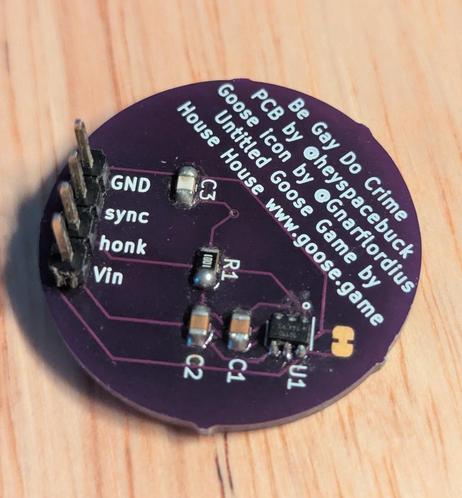

@tyalie @cccpresser It's a touch sensor! Hooking up the "honk" output pin to a speaker is left as an exercise to the reader
Show threadgnarfJun 15
@tyalie @cccpresser
Show threadCake & Pudding 🌱Jun 15

@tyalie

I like the colors and idea. very good.

But…

Am I the only one who thinks blajah with a soldering iron looks as if it is doing a hitler-salute?

maybe it's the colors, maybe it's the angle or the thumbnail size. Maybe, hopefully, it's just my weird brain beeing weird.
