jandeboevrieBig-Endian Testing with QEMU
> When programming, it is still important to write code that runs correctly on systems with either byte order
What you should do instead is write all your code so it is little-endian only, as the only relevant big-endian architecture is s390x, and if someone wants to run your code on s390x, they can afford a support contract.
If you comes to low level network protocol (e.g. writing a TCP stack), the "network byte order" is always big-endian.
That's a serialization format.
It goes without saying that all binary network protocols should document their byte order, and that if you're implementing a protocol documented as big endian you should use ntohl and friends to ensure correctness.
However if designing a new network protocol, choosing big endian is insanity. Use little endian, skip the macros, and just add
#ifndef LITTLE_ENDIAN
#error
Or the like to a header somewhere.
The linked to blog post in the OP explains this better IMHO [0]:
If the data stream encodes values with byte order B, then the algorithm to decode the value on computer with byte order C should be about B, not about the relationship between B and C.
One cannot just ignore the big/little data interchange problem MacOS[1], Java, TCP/IP, Jpeg etc...
The point (for me) is not that your code runs on a s390, it is that you abstract your personal local implementation details from the data interchange formats. And unfortunately almost all of the processors are little, and many of the popular and unavoidable externalization are big...
[0] https://commandcenter.blogspot.com/2012/04/byte-order-fallac...
[1] https://github.com/apple/darwin-xnu/blob/main/EXTERNAL_HEADE...
There's still at least one relevant big-endian-only ARM chip out there, the TI Hercules. While in the past five or ten years we've gone from having very few options for lockstep microcontrollers (with the Hercules being a very compelling option) to being spoiled for choice, the Hercules is still a good fit for some applications, and is a pretty solid chip.
Outsourcing endianness pain to your customers is an easy way to teach them about segfaults and silent data corruption. s390x is niche, endian bugs are not.
Network protocols and file formats still need a defined byte order, and the first time your code talks to hardware or reads old data, little-endian assumptions leak all over the place. Ignoring portability buys you a pile of vendor-specific hacks later, because your team will meet those 'irrelevant' platforms in appliances, embedded boxes, or somebody else's DB import path long before a sales rep waves a support contract at you.
Not sure why you consider that to be an issue, if you need to interact with a format that specifies values to be BE, just always byte-swap. And every appliance/embedded box i had to interact with ran either x86 or some flavour of 32-bit arm (in LE mode, of course).
Assuming an 8-bit byte used to be a "vendor specific hack." Assuming twos complement integers used to be a "vendor specific hack." When all the 36-bit machines died, and all the one's complement machines died, we got over it.
That's where big endian is now. All the BE architectures are dying or dead. No big endian system will ever be popular again. It's time for big endian to be consigned to the dustbin of history.
> No big endian system will ever be popular again
Cries in 68k nostalgia
Don't ignore endianness. But making little endian the default is the right thing to do, it is so much more ubiquitous in the modern world.
The vast majority of modern network protocols use little endian byte ordering. Most Linux filesystems use little endian for their on-disk binary representations.
There is absolutely no good reason for networking protocols to be defined to use big endian. It's an antiquated arbitrary idea: just do what makes sense.
> When programming, it is still important to write code that runs correctly on systems with either byte order
I contend it's almost never important and almost nobody writing user software should bother with this. Certainly, people who didn't already know they needed big-endian should not start caring now because they read an article online. There are countless rare machines that your code doesn't run on--what's so special about big endian? The world is little endian now. Big endian chips aren't coming back. You are spending your own time on an effort that will never pay off. If big endian is really needed, IBM will pay you to write the s390x port and they will provide the machine.
> There are countless rare machines that your code doesn't run on--what's so special about big endian?
One difference is that when your endian-oblivious code runs on a BE system, it can be subtly wrong in a way that's hard to diagnose, which is a whole lot worse than not working at all.
That sounds like a problem to deal with as part of your paid IBM s390x porting contract. I guess my point is: why deal with this before IBM is paying you? No other big endian platform matters, and s390x users are 100% large commercial customers. If IBM or one of their customers isn't paying you, there's nobody else who would need it. If IBM is paying you, you can test on a real z/VM that they provide. I see big endian as entirely their burden now; nobody else needs it. If they want it, they can pay for the work.
I value correct code for purely selfish reasons. The most likely person to try to run my code on a BE system is me.
There are a lot of odd (by modern standards) machines out there.
You're also the most likely person to try to run your code on an 18 bit machine.
It might sound outrageous but I guard against this sort of thing. When I write utility code in C++ I generally include various static asserts about basic platform assumptions.
Static-assert the machine is little endian.
Oh brave new world, that has such arguments in it!
You are correct, honestly, I couldn't disagree more with th article. At this point I can't imagine why it's important.
It's also increasingly hard to test. Particularly when you have large expensive testsuites which run incredibly slowly on this simulated machines.
What I really want is memory order emulation. X86 as strong memory order guarantees, ARM has much weaker guarantees. Which means the multi-threaded queue I'm working on works all the time on development x86 machine even if I forget to put in the correct memory-order schematics, but it might or might not work on ARM (which is what my of my users have). (I am in the habit of running all my stress tests 1000 times before I'm willing to send them out, but that doesn't mean the code is correct, it means it works on x86 and passed my review which might miss something)

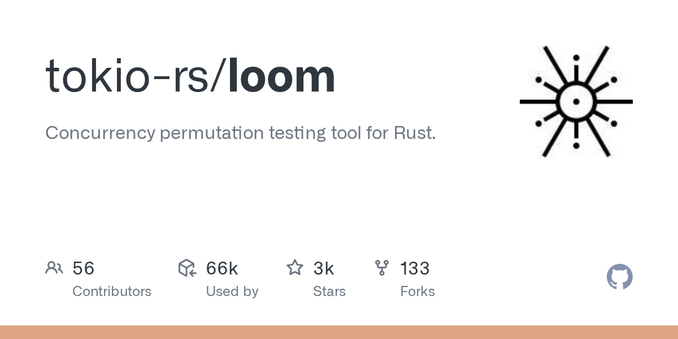

For Rust we have Loom [0], but do not expect for it to work on your whole application.
If you're using Go on GitHub (and doing stuff where this actually matters) adding this to your CI can be as simple as this: https://github.com/ncruces/wasm2go/blob/v0.3.0/.github/workf...
On Linux it's really as simple as installing QEMU binfmt and doing:
GOARCH=s390x go testI wrote a similar post [1] some 16 years ago. My solution back then was to install Debian for PowerPC on QEMU using qemu-system-ppc.
But Hans's post uses user-mode emulation with qemu-mips, which avoids having to set up a whole big-endian system in QEMU. It is a very interesting approach I was unaware of. I'm pretty sure qemu-mips was available back in 2010, but I'm not sure if the gcc-mips-linux-gnu cross-compiler was readily available back then. I suspect my PPC-based solution might have been the only convenient way to solve this problem at the time.
Thanks for sharing it here. It was nice to go down memory lane and also learn a new way to solve the same problem.
